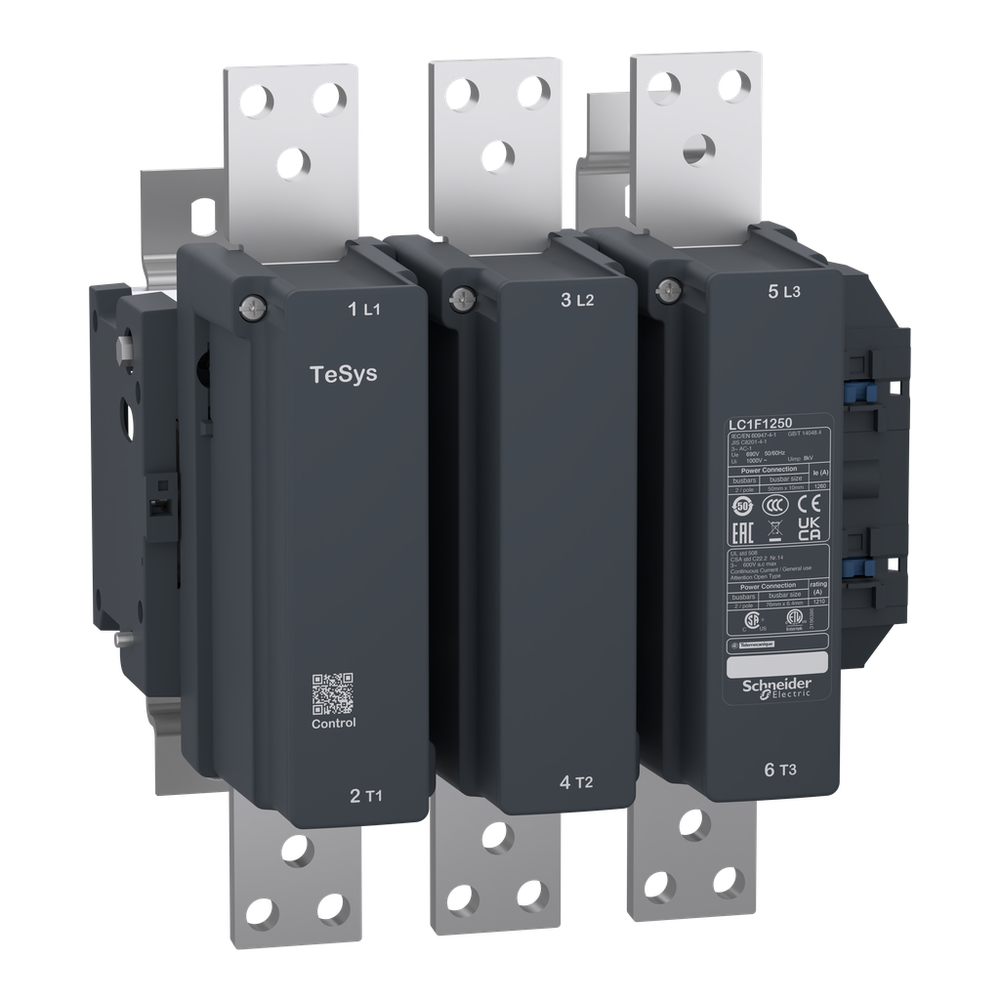

Schneider Electric LC1F1250MD
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys F contactor, 3 poles (3NO), 1250A/690V AC-1, for non-inductive load applications. It provides a low sealed consumption 220/230V DC coil, bolt terminals for bars or cables with lugs. For high operating rates until 600 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).Contactor,TeSys F,3P(3NO), AC-1, <=690V 1260 A, coil 220V DC
Schneider Electric LC1F1250MD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 1000 A gG <= 440 V
- Average Impedance
- 0.12 mOhm - Ith 1260 A 50 Hz
- Compatibility Code
- LC1F
- Connections - Terminals
- control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-4 mm²solid without cable end || control circuit screw clamp terminals 2 1-4 mm²solid without cable end || power circuit bar 2 100 x 5 mm || power circuit bolted connection
- Control Circuit Type
- DC standard
- Control Circuit Voltage Limits
- operational 0.85...1.1 Uc 55 °C) || drop-out 0.2...0.35 Uc 55 °C)
- Heat Dissipation
- 9-9 W
- Hold-In Power Consumption In W
- 9-9 W 20 °C
- [Icw] Rated Short-Time Withstand Current
- 3000 A 40 °C - 3 min || 8000 A 40 °C - 10 s || 5200 A 40 °C - 30 s || 4000 A 40 °C - 1 min || 2000 A 40 °C - 10 min
- Inrush Power In W
- 1600-1600 W 20 °C)
- [Ith] Conventional Free Air Thermal Current
- 1260 A 40 °C
- Maximum Operating Rate
- 1200 cyc/h 55 °C
- Mounting Support
- plate
- Operating Time
- 60...70 ms closing || 40...50 ms opening
- Overvoltage Category
- III
- Pole Contact Composition
- 3 NO
- Power Dissipation Per Pole
- 120 W AC-1
- Product Certifications
- CB || UL || CSA || CQC || CE || UKCA || CCC
- Rated Breaking Capacity
- 1890 A IEC 60947-4-1
- Standards
- EN 60947-1 || IEC 60947-1 || JIS C8201-4-1 || EN 60947-4-1 || IEC 60947-4-1
- Tightening Torque
- control circuit 1.2 N.m || power circuit 58 N.m
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- [Ui] Rated Insulation Voltage
- 1000 V IEC 60947-4-1 || 1500 V VDE 0110 group C
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -5-40 °C
- Ambient Air Temperature For Storage
- -60-80 °C
- Depth
- 255 mm
- Height
- 338 mm
- Net Weight
- 19 kg
- Operating Altitude
- 9842.52 ft (3000 m) without derating
- Permissible Ambient Air Temperature Around The Device
- -40-60 °C
- Protective Treatment
- TH
- Width
- 309 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1102006EN
- Environmental Disclosure
- ENVPEP110206EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contactor Application
- resistive load
- Device Short Name
- LC1F
- [Ie] Rated Operational Current
- 1260 A 40 °C) AC-1
- Poles Description
- 3P
- Product Or Component Type
- contactor
- Range
- TeSys
- Range Of Product
- TeSys F
- [Uc] Control Circuit Voltage
- 230 V DC
- [Ue] Rated Operational Voltage
- <= 460 V DC || <= 690 V AC 50/60 Hz
- Utilisation Category
- AC-1
