Description

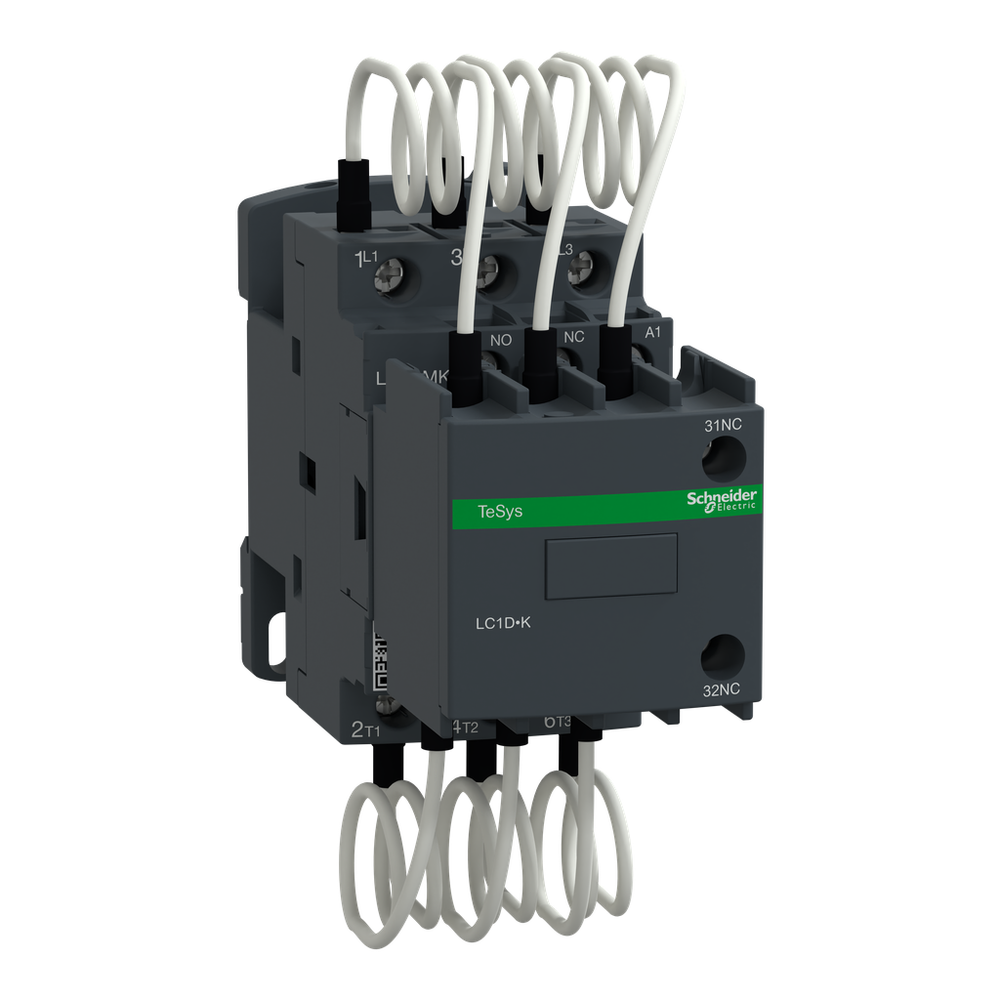

TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 25kVAR@400V 50Hz (42kVAR@690V). It provides a 110V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).Capacitor contactor, TeSys Deca, 25 kVAR at 400 V/50 Hz, coil 110 V AC 50/60 Hz
Schneider Electric LC1DMKF7 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Auxiliary Contacts Type
- mechanically linked 1 NO + 2 NC IEC 60947-5-1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -5-60 °C
- Ambient Air Temperature For Storage
- -60-80 °C
- Depth
- 127 mm
- Height
- 125 mm
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Net Weight
- 0.63 kg
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Width
- 45 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP111274EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Auxiliary Contact Composition
- 1 NO + 2 NC instantaneous
- Connections - Terminals
- control circuit screw clamp terminals 1 1-4 mm² solid || control circuit screw clamp terminals 2 1-4 mm² solid || control circuit screw clamp terminals 1 1-4 mm² flexible without cable end || control circuit screw clamp terminals 2 1-4 mm² flexible without cable end || control circuit screw clamp terminals 1 1-4 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || power circuit screw clamp terminals 1 2.5-16 mm² solid || power circuit screw clamp terminals 2 2.5-6 mm² solid || power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end || power circuit screw clamp terminals 2 1.5-6 mm² flexible without cable end || power circuit screw clamp terminals 1 1-10 mm² flexible with cable end || power circuit screw clamp terminals 2 1-4 mm² flexible with cable end
- Contactor Application
- power factor correction
- Control Circuit Type
- AC 50/60 Hz
- Device Application
- control
- Device Location In System
- inside delta interruption || line interruption
- Device Short Name
- LC1DMK
- Electrical Durability
- 300000 cycles 400 V || 200000 cycles 690 V
- Maximum Operating Rate
- 240 cyc/h
- Mounting Support
- DIN rail || plate
- Pole Contact Composition
- 3 NO
- Poles Description
- 3P
- Product Certifications
- IECEE CB Scheme || UKCA
- Product Name
- TeSys LC1D.K || TeSys Deca
- Product Or Component Type
- capacitor duty contactor
- Range
- TeSys || TeSys Deca
- Reactive Power Rating
- 14 kvar 230-230 V AC 50 Hz 60 °C || 25 kvar 400-400 V AC 50 Hz 60 °C || 27 kvar 440-440 V AC 50 Hz 60 °C || 42 kvar 690-690 V AC 50 Hz 60 °C
- Standards
- EN/IEC 60947-1 || EN/IEC 60947-4-1 || IEC 60335-1
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminals || power circuit 2.5 N.m screw clamp terminals
- [Uc] Control Circuit Voltage
- 110 V AC 50/60 Hz
- [Ue] Rated Operational Voltage
- power circuit 690 V AC 50/60 Hz
- Utilisation Category
- AC-6b
