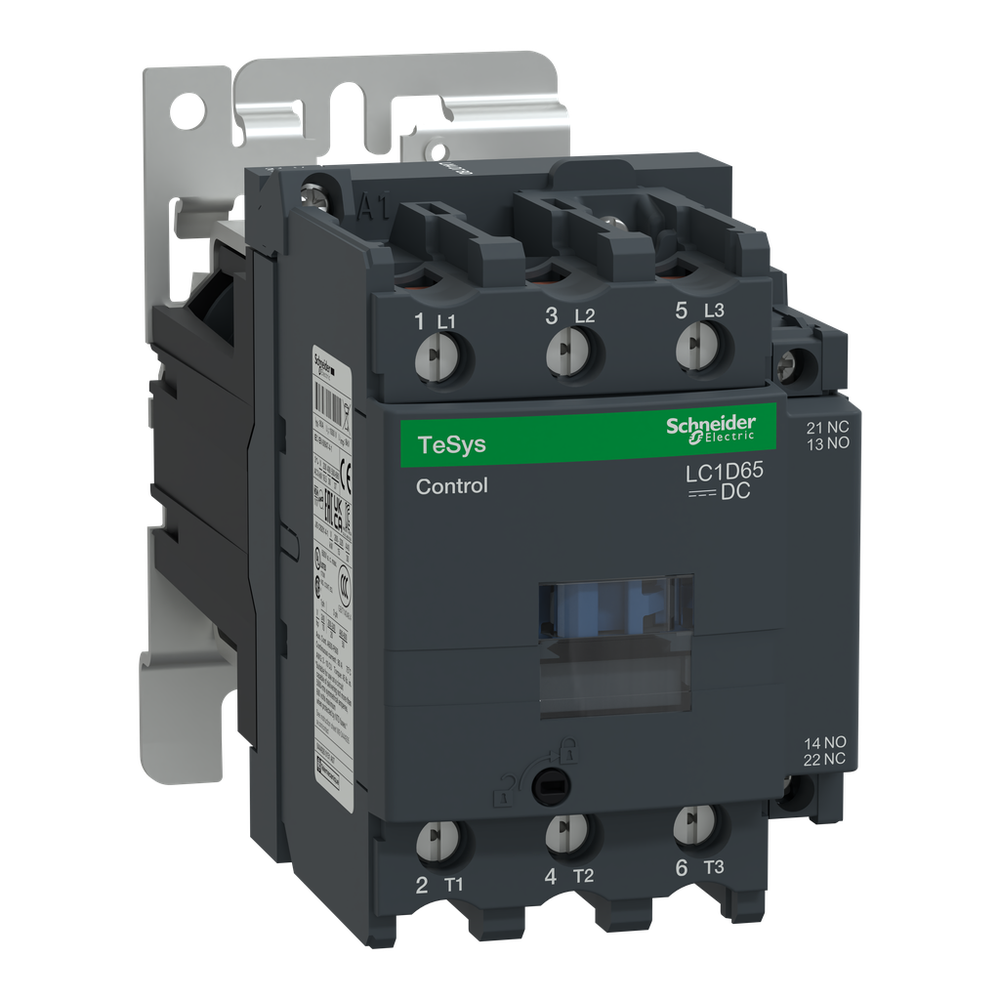

Schneider Electric LC1D65BD
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 65A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 20HP at 200 to 208VAC, 20HP at 240VAC, 40HP at 480VAC and 50HP at 600VAC three phase. Contactor is also rated for 5HP at 115VAC and 10HP at 240VAC single phase. When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 125A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 2.06 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.IEC contactor, TeSys D, nonreversing, 65A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VDC coil, open style
Schneider Electric LC1D65BD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 125 A gG <= 690 V type 2 power circuit || 160 A gG <= 690 V type 1 power circuit IEC 60947-5-1 || 125 A gG <= 690 V type 1 power circuit || 10 A gG control circuit IEC 60947-5-1
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Auxiliary Contacts Type
- mirror contact 1 NC IEC 60947-4-1 || mechanically linked 1 NO + 1 NC IEC 60947-5-1
- Coil Technology
- built-in bidirectional peak limiting diode suppressor
- Compatibility Code
- LC1D
- Connections - Terminals
- control circuit screw clamp terminals 2 1-4 mm² rigid without cable end || control circuit screw clamp terminals 1 1-4 mm² flexible without cable end || control circuit screw clamp terminals 2 1-4 mm² flexible without cable end || control circuit screw clamp terminals 1 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || power circuit screw terminals 1 2.5-25 mm² rigid || power circuit screw terminals 2 2.5-16 mm² rigid without cable end || power circuit screw terminals 1 2.5-25 mm² flexible without cable end || power circuit screw terminals 2 2.5-16 mm² flexible without cable end || power circuit screw terminals 1 2.5-25 mm² flexible with cable end || power circuit screw terminals 2 2.5-10 mm² flexible with cable end || control circuit screw clamp terminals 2 1-4 mm² rigid || control circuit screw clamp terminals 1 1-4 mm² rigid
- Control Circuit Type
- DC wide range
- Control Circuit Voltage Limits
- 0.75...1.25 Uc -40-60 °C operational DC || 1...1.25 Uc 60-70 °C operational DC || 0.1...0.3 Uc -40-70 °C drop-out DC
- Hold-In Power Consumption In W
- 7.4-7.4 W 20 °C
- Inrush Power In W
- 19-19 W 20 °C)
- Insulation Resistance
- > 10 MOhm control circuit
- Irms Rated Making Capacity
- 1000 A 440 V DC power circuit IEC 60947 || 1000 A 440 V power circuit IEC 60947 || 250 A DC control circuit IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 80 A 60 °C power circuit || 10 A 60 °C control circuit
- Maximum Horse Power Rating
- 10 hp 230/240 V at AC 60 Hz for 1 phase || 20 hp 200/208 V at AC 60 Hz for 3 phase || 20 hp 230/240 V at AC 60 Hz for 3 phase || 40 hp 460/480 V at AC 60 Hz for 3 phase || 50 hp 575/600 V at AC 60 Hz for 3 phase || 5 hp 115 V at AC 60 Hz for 1 phase
- Maximum Operating Rate
- 3600 cyc/h 60 °C
- Mechanical Durability
- 10000000 cycles
- Minimum Switching Current
- 5 mA control circuit
- Minimum Switching Voltage
- 17 V control circuit
- Motor Power Kw
- 30 kW 380...400 V AC 50 Hz || 37 kW 500 V AC 50 Hz || 37 kW 660...690 V AC 50 Hz || 18.5 kW 220...230 V AC 50 Hz || 30 kW 415 V AC 50 Hz || 37 kW 1000 V AC 50 Hz AC-3) || 11 kW 400 V AC 50 Hz AC-4) || 30 kW 440 V AC 50 Hz AC-3)
- Mounting Support
- plate || rail
- Non-Overlap Time
- 1.5 ms on energisation between NC and NO contacts || 1.5 ms on de-energisation between NC and NO contacts
- Operating Time
- 50 ms closing || 20 ms opening
- Overvoltage Category
- III
- Pole Contact Composition
- 3 NO
- Power Dissipation Per Pole
- 6.4 W AC-1 || 4.2 W AC-3e || 4.2 W AC-3
- Protective Cover
- with
- Rated Breaking Capacity
- 1000 A 440 V power circuit IEC 60947
- Rated Operational Power In W
- 48 W 24 V DC-13 3000000 cycles - control circuit || 96 W 24 V DC-13 1000000 cycles - control circuit || 14 W 24 V DC-13 10000000 cycles - control circuit
- Safety Reliability Level
- B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 || B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminal Philips No 2 || power circuit 5 N.m screw terminal flat Ø 6 to Ø 8 mm || control circuit 1.7 N.m screw clamp terminal pozidriv No 2 || control circuit 1.7 N.m screw clamp terminal flat Ø 6 mm
- Time Constant
- 34 ms
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947
- [Ui] Rated Insulation Voltage
- control circuit 600 V UL || power circuit 600 V CSA || power circuit 600 V UL IEC 60947-1 || control circuit 690 V IEC 60947-1 || power circuit 690 V IEC 60947-1 || power circuit 1000 V CSA IEC 60947-4-1 || control circuit 600 V CSA
Contractual warranty
- Warranty
- 18 months
Environment
- Climatic Withstand
- IACS E10 exposure to damp heat
- Depth
- 176 mm
- Fire Resistance
- 850 °C IEC 60695-2-1
- Flame Retardance
- V1 conforming to UL 94
- Height
- 127 mm
- Ip Degree Of Protection
- IP2X VDE 0106 || IP2X IEC 60529
- Mechanical Robustness
- shocks contactor closed 15 Gn for 11 ms) || vibrations contactor opened 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor opened 10 Gn for 11 ms)
- Net Weight
- 2.185 kg
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Product Certifications
- GOST || LROS (Lloyds register of shipping) || DNV || CCC || CSA || GL || UL || RINA || UKCA
- Standards
- IEC 60947-5-1 || IEC 60947-4-1 || EN 60947-4-1 || UL 508 || EN 60947-5-1
- Width
- 85 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contactor Application
- motor control
- Device Short Name
- LC1D
- [Ie] Rated Operational Current
- 65 A 60 °C) <= 440 V AC AC-3 power circuit || 65 A 60 °C) <= 440 V AC AC-3e power circuit || 80 A 60 °C) <= 440 V AC AC-1 power circuit
- Poles Description
- 3P
- Product Or Component Type
- contactor
- Range
- TeSys
- Range Of Product
- TeSys Deca
- [Uc] Control Circuit Voltage
- 24 V DC
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hz
- Utilisation Category
- AC-3 || AC-2 || AC-1 || AC-3e
