Schneider Electric LC1D09KUE
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

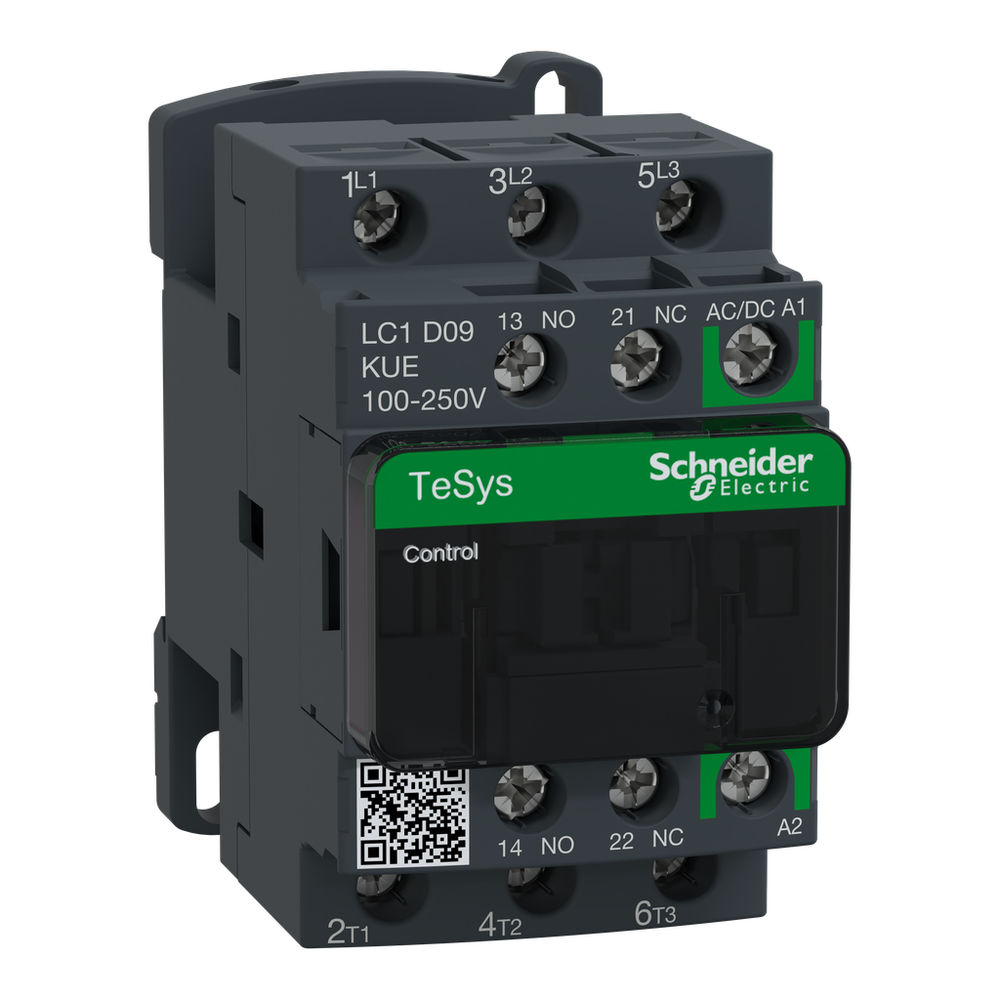

TeSys D Green contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 9A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 20HP at 200-208VAC, 25HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Contactor is also rated for 7.5HP at 115VAC and 15HP at 240VAC single phase. When used with a 480VAC up to 35A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 25A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Equipped with an electronic coil, wide band voltage 100-250V, AC/DC compatible, low consumption. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.03 inches tall, 1.77 inches wide and 3.39 inches deep. It weighs 0.81 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.IEC contactor, TeSys Deca Green, nonreversing, 9A, 5HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 100/250VAC/VDC coil, open
Schneider Electric LC1D09KUE is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 10 A gG signalling circuit IEC 60947-5-1 || 25 A gG <= 690 V type 1 power circuit || 20 A gG <= 690 V type 2 power circuit
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Auxiliary Contacts Type
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- Average Impedance
- 2.5 mOhm - Ith 25 A 50 Hz power circuit
- Coil Technology
- built-in bidirectional peak limiting
- Compatibility Code
- LC1D
- Connections - Terminals
- control circuit screw clamp terminals 1 1-4 mm² flexible without cable end || control circuit screw clamp terminals 2 1-4 mm² flexible without cable end || control circuit screw clamp terminals 1 1-4 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 1 1-4 mm² solid || control circuit screw clamp terminals 2 1-4 mm² solid || power circuit screw clamp terminals 1 1-4 mm² flexible without cable end || power circuit screw clamp terminals 2 1-4 mm² flexible without cable end || power circuit screw clamp terminals 1 1-4 mm² flexible with cable end || power circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || power circuit screw clamp terminals 1 1-4 mm² solid || power circuit screw clamp terminals 2 1-4 mm² solid
- Control Circuit Type
- AC/DC 50/60 Hz AC/DC electronic
- Control Circuit Voltage Limits
- <= 0.1 Uc -40-70 °C drop-out AC/DC || 0.85...1.1 Uc -40-60 °C operational AC/DC || 1...1.1 Uc 60-70 °C operational AC/DC
- Electrical Durability
- 2.4 Mcycles 8 A AC-3 <= 440 V || 0.6 Mcycles 25 A AC-1 <= 440 V || 2.4 Mcycles 8 A AC-3e <= 440 V
- Heat Dissipation
- 1.1-1.1 W 50/60 Hz
- Hold-In Power Consumption In Va
- 1.6-1.6 VA 50/60 Hz 20 °C)
- Hold-In Power Consumption In W
- 1.1-1.1 W 20 °C
- [Icw] Rated Short-Time Withstand Current
- 100 A - 1 s signalling circuit || 120 A - 500 ms signalling circuit || 140 A - 100 ms signalling circuit || 30 A 40 °C - 10 min power circuit || 61 A 40 °C - 1 min power circuit || 105 A 40 °C - 10 s power circuit || 210 A 40 °C - 1 s power circuit
- Inrush Power In Va
- 25-25 VA 50/60 Hz 20 °C)
- Inrush Power In W
- 18-18 W 20 °C)
- Insulation Resistance
- > 10 MOhm signalling circuit
- Irms Rated Making Capacity
- 250 A 440 V power circuit IEC 60947 || 140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 10 A 60 °C signalling circuit || 25 A 60 °C power circuit
- Maximum Horse Power Rating
- 0.33 hp 115 V at AC 60 Hz for 1 phase || 1 hp 230/240 V at AC 60 Hz for 1 phase || 2 hp 200/208 V at AC 60 Hz for 3 phase || 2 hp 230/240 V at AC 60 Hz for 3 phase || 5 hp 460/480 V at AC 60 Hz for 3 phase || 7.5 hp 575/600 V at AC 60 Hz for 3 phase
- Maximum Operating Rate
- 3600 cyc/h 60 °C
- Mechanical Durability
- 15 Mcycles
- Minimum Switching Current
- 5 mA signalling circuit
- Minimum Switching Voltage
- 17 V signalling circuit
- Motor Power Kw
- 2.2 kW 220...230 V AC 50 Hz AC-3) || 4 kW 380...400 V AC 50 Hz AC-3) || 4 kW 415 V AC 50 Hz AC-3) || 4 kW 440 V AC 50 Hz AC-3) || 5.5 kW 500 V AC 50 Hz AC-3) || 5.5 kW 660...690 V AC 50 Hz AC-3) || 2.2 kW 220...230 V AC 50 Hz AC-3e) || 4 kW 380...400 V AC 50 Hz AC-3e) || 4 kW 415 V AC 50 Hz AC-3e) || 4 kW 440 V AC 50 Hz AC-3e) || 5.5 kW 500 V AC 50 Hz AC-3e) || 5.5 kW 660...690 V AC 50 Hz AC-3e)
- Mounting Support
- rail || plate
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Operating Time
- 45...55 ms closing || 20...90 ms opening
- Overvoltage Category
- III
- Pole Contact Composition
- 3 NO
- Pollution Degree
- 3
- Power Dissipation Per Pole
- 1.56 W AC-1 || 0.2 W AC-3 || 0.2 W AC-3e
- Protective Cover
- with
- Rated Breaking Capacity
- 250 A 440 V power circuit IEC 60947
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Signalling Circuit Frequency
- 25...400 Hz
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 1.7 N.m screw clamp terminals pozidriv No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- [Ui] Rated Insulation Voltage
- power circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-1
Contractual warranty
- Warranty
- 18 months
Environment
- Climatic Withstand
- IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
- Depth
- 86 mm
- Fire Resistance
- 850 °C IEC 60695-2-1
- Flame Retardance
- V1 conforming to UL 94
- Height
- 77 mm
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)
- Net Weight
- 0.368 kg
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Permissible Ambient Air Temperature Around The Device
- -40-60 °C || 60-70 °C with derating
- Product Certifications
- CCC || CSA || EAC || UL || KC || DNV-GL || LROS (Lloyds register of shipping) || UKCA
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || IEC 60335-1
- Width
- 45 mm
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1609001EN
- Environmental Disclosure
- ENVPEP1609001EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts & cables product
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contactor Application
- motor control || resistive load
- Device Short Name
- LC1D
- [Ie] Rated Operational Current
- 9 A 60 °C) <= 440 V AC-3 power circuit || 25 A 60 °C) <= 440 V AC-1 power circuit || 9 A 60 °C) <= 440 V AC-3e power circuit
- Poles Description
- 3P
- Product Or Component Type
- contactor
- Range
- TeSys || TeSys Deca
- Range Of Product
- TeSys Deca
- [Uc] Control Circuit Voltage
- 100...250 V AC 50/60 Hz || 100...250 V DC
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hz
- Utilisation Category
- AC-1 || AC-3 || AC-3e
