Schneider Electric LC1D096BLS207
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

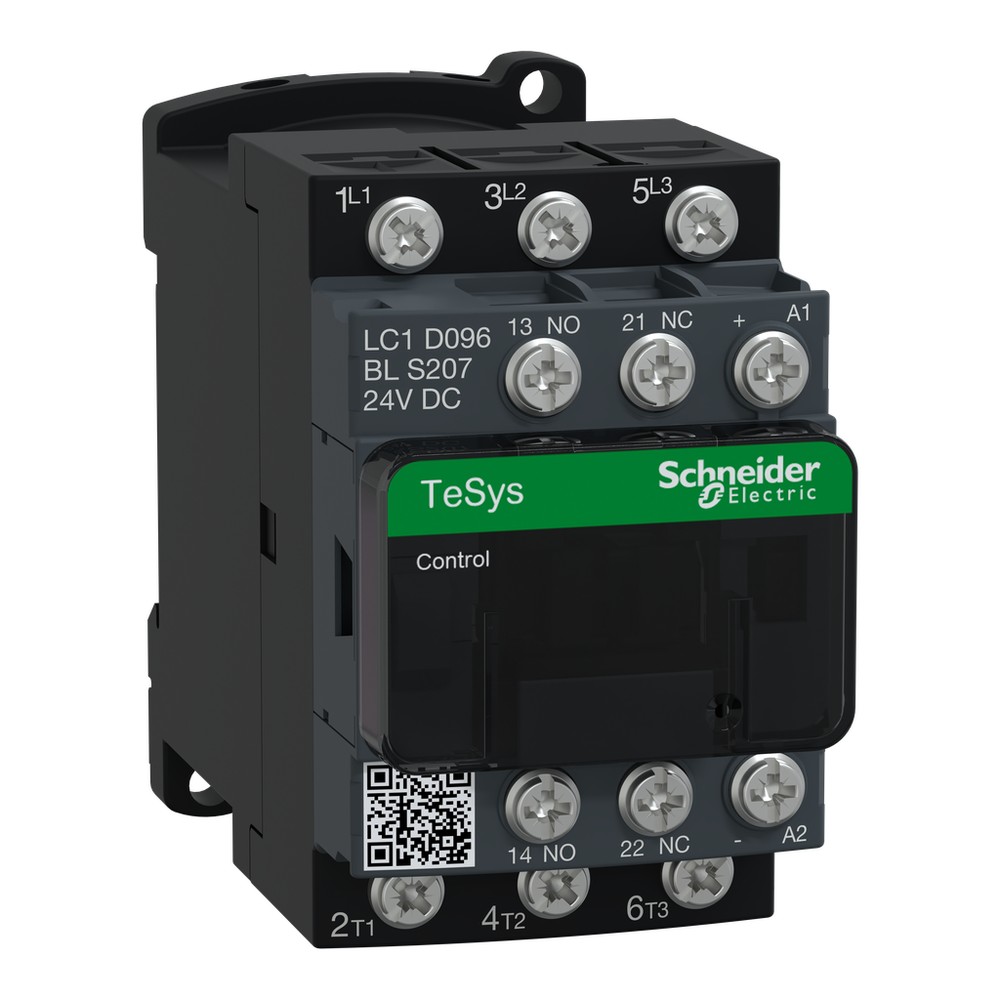

This TeSys D contactor has been designed for motor control in railway applications. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 9A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 2HP at 200 to 208VAC, 2HP at 240VAC, 5HP at 480VAC and 7.5HP at 600VAC three phase. Contactor is also rated for 0.33HP at 115VAC and 1HP at 240VAC single phase. Contactor is supplied with a low consumption 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as stanard. The NC contact is mirror certified. Ring-lug screw terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.15 inches tall, 1.77 inches wide and 3.74 inches deep. It weighs 1.06 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.IEC contactor, TeSys D, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style
Schneider Electric LC1D096BLS207 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 10 A gG signalling circuit IEC 60947-5-1 || 25 A gG <= 690 V type 1 power circuit || 20 A gG <= 690 V type 2 power circuit
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Auxiliary Contacts Type
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- Average Impedance
- 2.5 mOhm - Ith 25 A 50 Hz power circuit
- Coil Technology
- with integral suppression device
- Compatibility Code
- LC1D
- Connections - Terminals
- control circuit lugs-ring terminals 8 mm || power circuit lugs-ring terminals 9.5 mm
- Contact Compatibility
- M5
- Control Circuit Type
- DC low consumption
- Control Circuit Voltage Limits
- 0.1...0.25 Uc -40-70 °C drop-out DC || 0.7...1.25 Uc -40-70 °C operational DC
- Electrical Durability
- 0.6 Mcycles 25 A AC-1 <= 440 V || 2 Mcycles 9 A AC-3 <= 440 V || 2 Mcycles 9 A AC-3e <= 440 V
- Hold-In Power Consumption In W
- 4-4 W 20 °C
- Inrush Power In W
- 4-4 W 20 °C)
- Insulation Resistance
- > 10 MOhm signalling circuit
- Irms Rated Making Capacity
- 250 A 440 V power circuit IEC 60947 || 140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 10 A 60 °C signalling circuit || 25 A 60 °C power circuit
- Maximum Operating Rate
- 3600 cyc/h 60 °C
- Mechanical Durability
- 30 Mcycles
- Minimum Switching Current
- 5 mA signalling circuit
- Minimum Switching Voltage
- 17 V signalling circuit
- Motor Power Kw
- 2.2 kW 220/230 V AC 50 Hz AC-3) || 4 kW 380/400 V AC 50 Hz AC-3) || 4 kW 415 V AC 50 Hz AC-3) || 4 kW 440 V AC 50 Hz AC-3) || 5.5 kW 500 V AC 50 Hz AC-3) || 5.5 kW 660/690 V AC 50 Hz AC-3) || 2.2 kW 220/230 V AC 50 Hz AC-3e) || 4 kW 380/400 V AC 50 Hz AC-3e) || 4 kW 415 V AC 50 Hz AC-3e) || 4 kW 440 V AC 50 Hz AC-3e) || 5.5 kW 500 V AC 50 Hz AC-3e) || 5.5 kW 660/690 V AC 50 Hz AC-3e)
- Mounting Support
- rail || plate
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Operating Time
- 55...75 ms closing || 16...32 ms opening
- Overvoltage Category
- III
- Pole Contact Composition
- 3 NO
- Power Dissipation Per Pole
- 1.56 W AC-1 || 0.2 W AC-3 || 0.2 W AC-3e
- Product Certifications
- IEC || CCC || EAC || UA || TR || UKCA
- Protective Cover
- with
- Rated Breaking Capacity
- 250 A 440 V power circuit IEC 60947
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Standards
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || EN 45545: R22 HL3 || EN 45545: R26 HL3 || DIN 5510-2
- Tightening Torque
- control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5 || control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || power circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || power circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5 || control circuit 1.7 N.m lugs-ring terminals pozidriv No 2 M3.5 || power circuit 1.7 N.m lugs-ring terminals pozidriv No 2 M3.5
- Time Constant
- 37 ms
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947
- [Ui] Rated Insulation Voltage
- power circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-1
Environment
- Ambient Air Temperature For Storage
- -60-80 °C
- Climatic Withstand
- IACS E10 || IEC 60947-1 Annex Q category D
- Depth
- 95 mm
- Fire Resistance
- 850 °C IEC 60695-2-1
- Height
- 77 mm
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)
- Net Weight
- 0.32 kg
- Width
- 45 mm
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP2205004
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contactor Application
- resistive load || motor control
- Device Short Name
- LC1D
- [Ie] Rated Operational Current
- 9 A 60 °C) <= 440 V AC AC-3 power circuit || 25 A 60 °C) <= 440 V AC AC-1 power circuit || 9 A 60 °C) <= 440 V AC AC-3e power circuit
- Poles Description
- 3P
- Product Or Component Type
- contactor
- Range
- TeSys || TeSys Deca
- Range Of Product
- TeSys Deca
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hz
- Utilisation Category
- AC-1 || AC-3 || AC-3e
