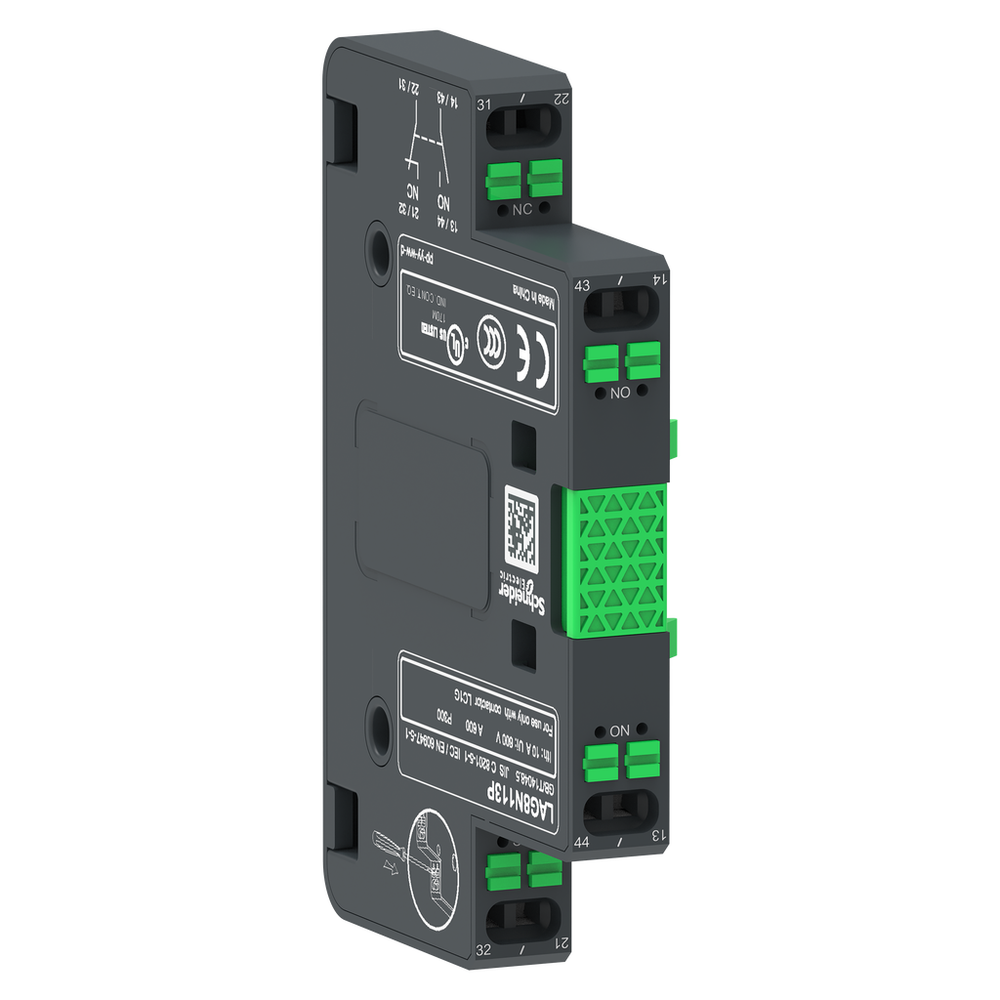

Schneider Electric LAG8N113P
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
These accessories are auxiliary contact block 1NO+1NC for TeSys Giga contactors. Highly reliable and suitable for 17V 1mA to address more challenging specific control applications. It is designed to side mounting by spring terminals R1/L1. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).Auxiliary contact block,TeSys Giga contactor,1NO + 1NC,lateral face side mounting,push-in terminals L1/R1
Schneider Electric LAG8N113P is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Depth
- 84.8 mm
- Height
- 55.8 mm
- Insulation Resistance
- > 10 MOhm
- Irms Rated Making Capacity
- 140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 10 A 60 °C
- Mechanical Durability
- 8 Mcycles
- Minimum Switching Current
- 1 mA
- Minimum Switching Voltage
- 17 V
- Mounting Location
- side
- Net Weight
- 0.05 kg
- Non-Overlap Time
- 1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact
- Permissible Short-Time Rating
- 100 A 60 °C 1 s || 120 A 60 °C 500 ms || 140 A 60 °C 100 ms
- Protection Type
- gG fuse 10 A
- [Ue] Rated Operational Voltage
- 500 V AC 25...400 Hz
- [Ui] Rated Insulation Voltage
- 500 V IEC 60947-5-1 || 500 V CSA || 500 V UL
- Width
- 15.4 mm
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Ambient Air Temperature For Storage
- -60-80 °C
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Operating Altitude
- 9842.52 ft (3000 m)
- Product Certifications
- CB Scheme || CCC || cULus || CE || UKCA || EU-RO-MR by DNV-GL || EAC
- Protective Treatment
- TH
- Standards
- EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB 14048.5
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2105013
- Environmental Disclosure
- ENVPEP2105013
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Auxiliary Contacts Operation
- instantaneous
- Connections - Terminals
- screw clamp terminals 0.75-2.5 mm²solid stranded without cable end || screw clamp terminals 0.75-2.5 mm²flexible with cable end
- Device Short Name
- LAG8N
- Pole Contact Composition
- 1 NO + 1 NC
- Product Or Component Type
- auxiliary contact block
- Range
- TeSys
- Range Compatibility
- TeSys G LC1G
- Range Of Product
- TeSys G
