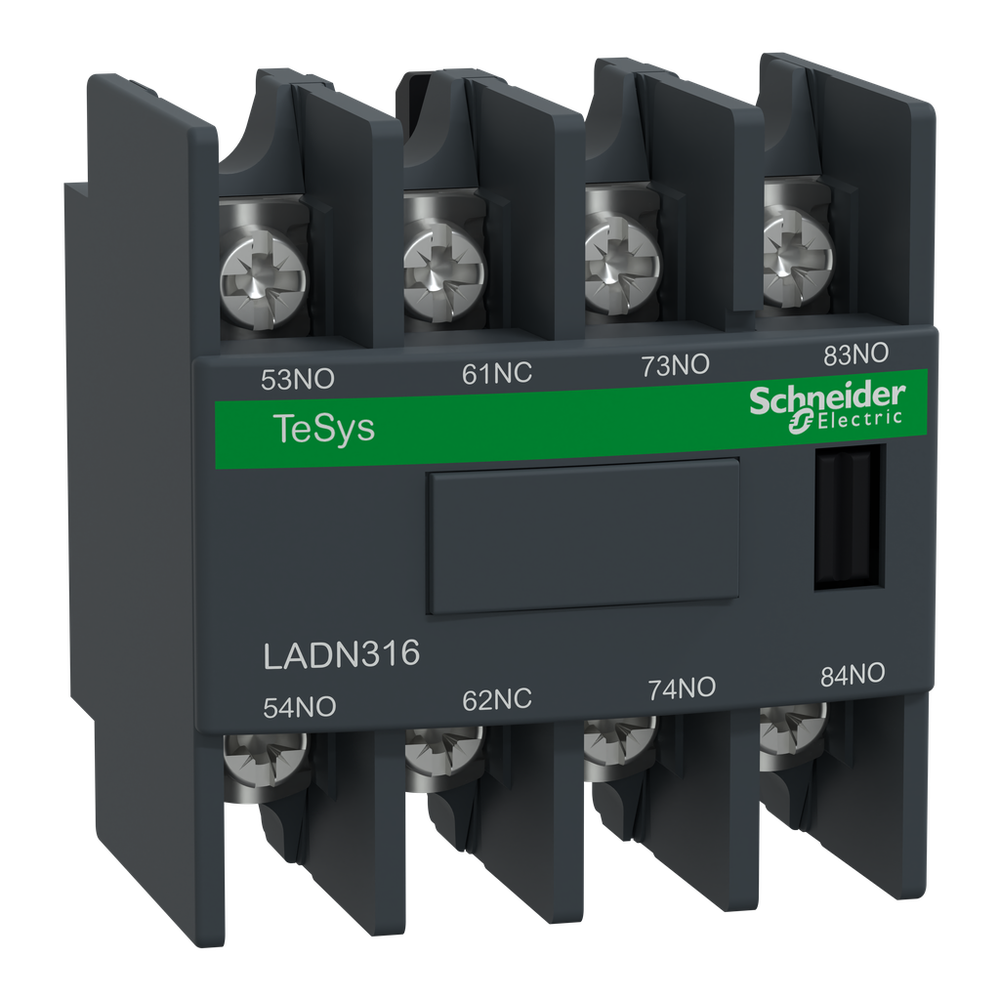

Schneider Electric LADN316
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F. It provides 3NO+1NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by ring lugs screw terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).Auxiliary contact block, TeSys Deca, 3NO + 1NC, front mounting, lugs-ring terminals
Schneider Electric LADN316 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Color
- dark grey
- Connections - Terminals
- lugs-ring terminals 8 mm)
- Depth
- 42 mm
- Height
- 48 mm
- Insulation Resistance
- > 10 MOhm
- Irms Rated Making Capacity
- 140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
- Mechanical Durability
- 30 Mcycles
- Minimum Switching Current
- 5 mA
- Minimum Switching Voltage
- 17 V
- Net Weight
- 0.05 kg
- Non-Overlap Time
- 1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact
- Permissible Short-Time Rating
- 100 A 60 °C 1 s || 120 A 60 °C 500 ms || 140 A 60 °C 100 ms
- Protection Type
- gG fuse 10 A
- Tightening Torque
- 1.7 N.m flat Ø 6 mm M3.5 || 1.7 N.m Philips No 2 M3.5 || 1.7 N.m pozidriv No 2 M3.5
- Width
- 44 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -5-60 °C
- Ambient Air Temperature For Storage
- -60-80 °C
- Environmental Characteristic
- normal environment
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Operating Altitude
- 9842.52 ft (3000 m)
- Protective Treatment
- TH IEC 60068
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP110807EN_V2
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Auxiliary Contacts Operation
- instantaneous
- Device Short Name
- LADN
- [Ie] Rated Operational Current
- 6 A120 V AC-15 || 1.04 A690 V AC-15 || 0.55 A125 V DC-13 || 0.1 A600 V DC-13
- [Ith] Conventional Free Air Thermal Current
- 10 A 60 °C
- Mounting Location
- front
- Pole Contact Composition
- 3 NO + 1 NC
- Product Certifications
- CB || UL || CSA || CCC || UKCA
- Product Name
- TeSys Deca
- Product Or Component Type
- auxiliary contact block
- Range
- TeSys || TeSys Deca
- Range Compatibility
- TeSys D CAD || TeSys D LC1D || TeSys F LC1F || TeSys F CR1F || TeSys Deca CAD || TeSys Deca LC1D
- Standards
- EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.5
- [Ue] Rated Operational Voltage
- 690 V AC 25...400 Hz
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-5-1 || 600 V UL || 600 V CSA
