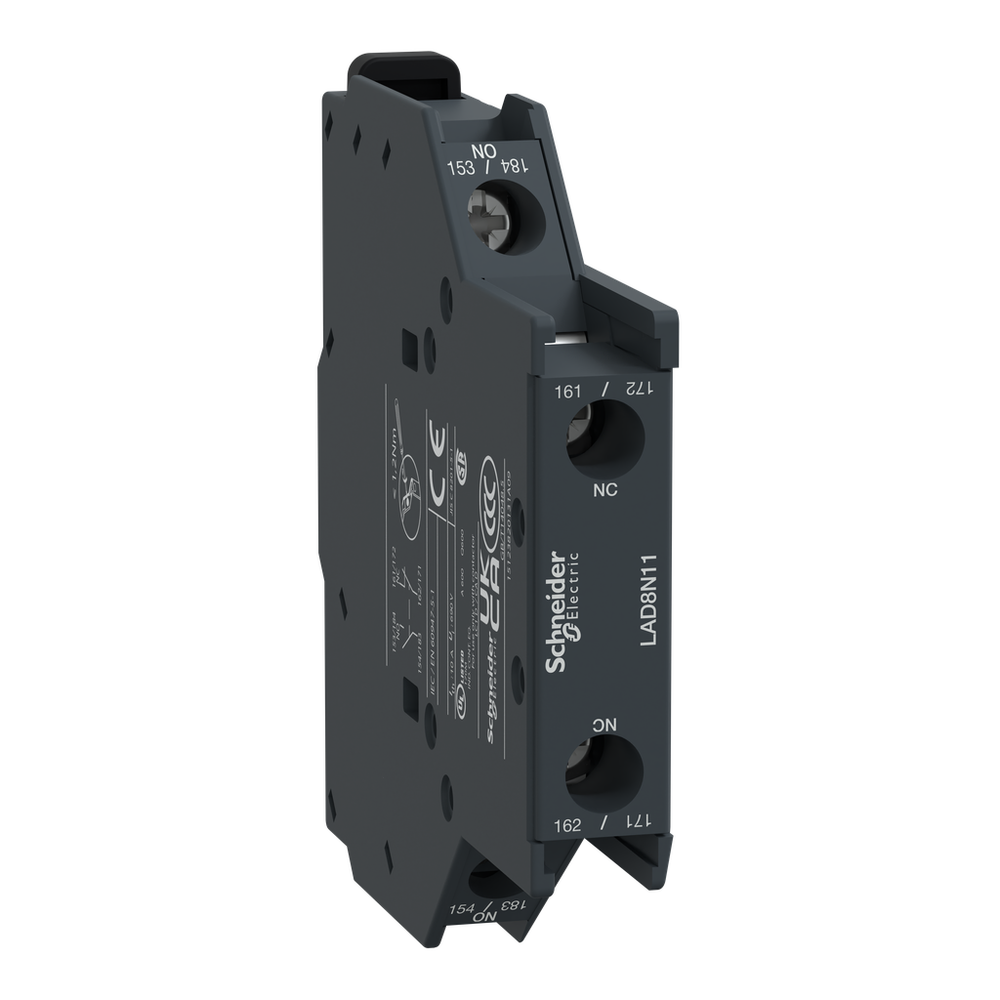

Schneider Electric LAD8N11
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys D contactors have a variety of auxiliary contacts. This auxiliary contact mounts on the side of contactors with rating from 9 amp to 150 amp. The one NO and one NC contacts can be used in the control circuit. TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for any type of application. TeSys D contactors offer quick simple setup, while maintaining a compact size. Contactors have both horsepower and Kw motor rating for international acceptance. An extennsive line of accessories makes it easy to meet the requirements of most applications. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications.TeSys Deca, auxiliary contact block, 1 NO and 1 NC, side mount, screw clamp terminals, for LC1D09 to LC1D150 contactors
Schneider Electric LAD8N11 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw clamp terminals 1 1-4 mm²flexible with cable end || screw clamp terminals 1 1-4 mm²flexible without cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || screw clamp terminals 2 1-4 mm²flexible without cable end || screw clamp terminals 1 1-4 mm²rigid without cable end || screw clamp terminals 2 1-4 mm²rigid without cable end
- Depth
- 76 mm
- Height
- 76 mm
- Insulation Resistance
- > 10 MOhm
- Irms Rated Making Capacity
- 140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1
- Mechanical Durability
- 30 Mcycles
- Minimum Switching Current
- 5 mA
- Minimum Switching Voltage
- 17 V
- Non-Overlap Time
- 1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact
- Permissible Short-Time Rating
- 100 A 1 s || 120 A 500 ms || 140 A 100 ms
- Protection Type
- gG fuse 10 A
- Tightening Torque
- 1.7 N.m flat Ø 6 mm || 1.7 N.m Philips No 2 || 1.7 N.m pozidriv No 2
- Width
- 12.5 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -5-60 °C
- Ambient Air Temperature For Storage
- -60-80 °C
- Environmental Characteristic
- normal environment
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Operating Altitude
- 9842.52 ft (3000 m)
- Protective Treatment
- TH IEC 60068
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP110807EN_V2
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Auxiliary Contacts Operation
- instantaneous
- [Ie] Rated Operational Current
- 6 A120 V AC-15 || 1.04 A690 V AC-15 || 0.55 A125 V DC-13 || 0.1 A600 V DC-13
- [Ith] Conventional Free Air Thermal Current
- 10 A 60 °C
- Mounting Location
- side
- Pole Contact Composition
- 1 NO + 1 NC
- Product Certifications
- CB || UL || CSA || CCC || EAC || UKCA
- Product Name
- TeSys Deca
- Product Or Component Type
- auxiliary contact block
- Range
- TeSys
- Range Compatibility
- TeSys Deca LC1D09…95 AC coil || TeSys Deca LC1D115/150 || TeSys Deca LC1D40A…80A AC Coil || TeSys Deca CAD AC coil || TeSys F LC1F
- Standards
- UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.5 || EN/IEC 60947-5-1
- [Ue] Rated Operational Voltage
- 690 V AC 25...400 Hz
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-5-1 || 600 V UL || 600 V CSA
