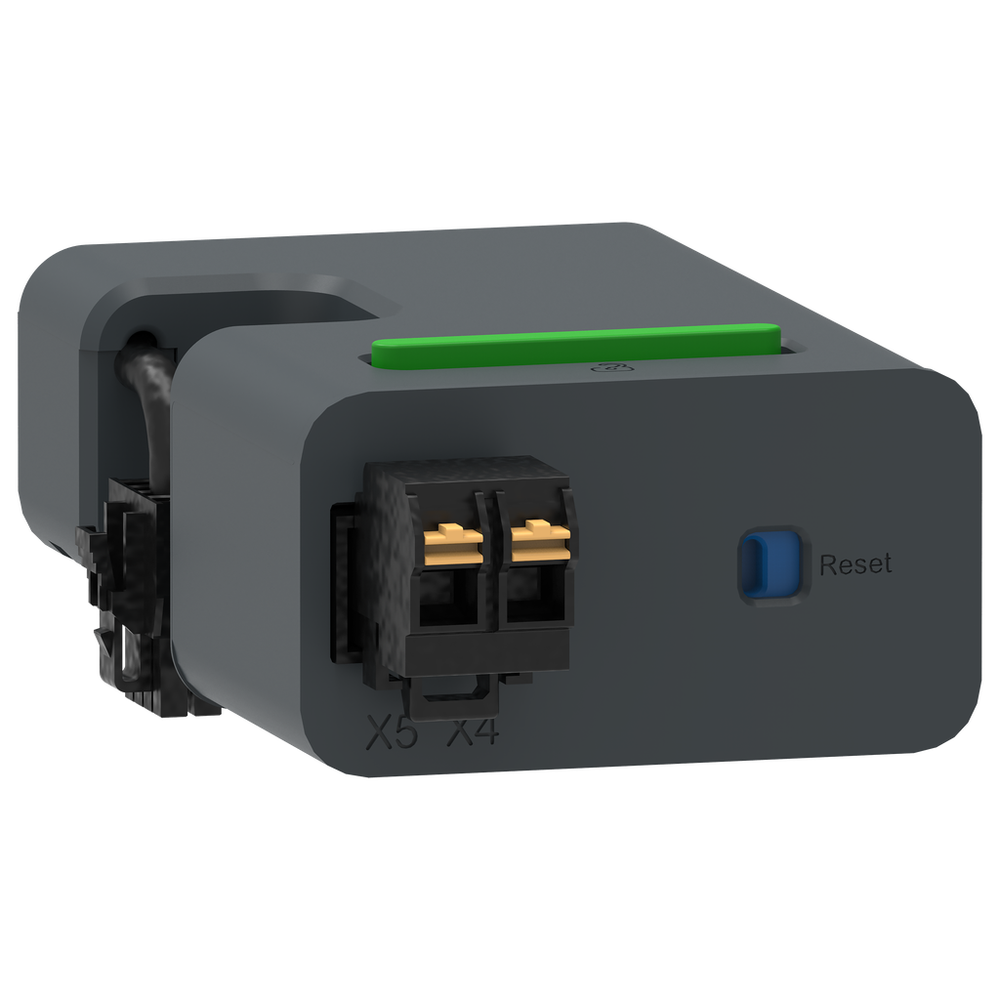

Schneider Electric LA9GRD01
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
These accessories are remote wear diagnostic module for TeSys Giga contactor. It outputs 1NC contact for continuous remote monitoring of contact wear by a contactor opening-speed algorithm. It could be better for optimizes maintenance by allowing you to replace contacts only when necessary. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).Remote Wear Diagnostic Module (NC), for TeSys Giga contactor LC1G
Schneider Electric LA9GRD01 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Auxiliary Contact Composition
- 1 NC
- Connection Pitch
- 5.08 mm
- Depth
- 50 mm
- Function Available
- remote alarm
- Height
- 91.5 mm
- [Ith] Conventional Free Air Thermal Current
- 5 A
- Mounting Location
- top
- Net Weight
- 0.1 kg
- Quantity Per Set
- set of 1
- Width
- 30 mm
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Ambient Air Temperature For Storage
- -60-80 °C
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Operating Altitude
- 9842.52 ft (3000 m) without derating || 5000 m with derating factor
- Pollution Degree
- 3 IEC 60947-1
- Standards
- EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.5
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2105013
- Environmental Disclosure
- ENVPEP2105013
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- LA9G
- Product Or Component Type
- function module
- Range
- TeSys
