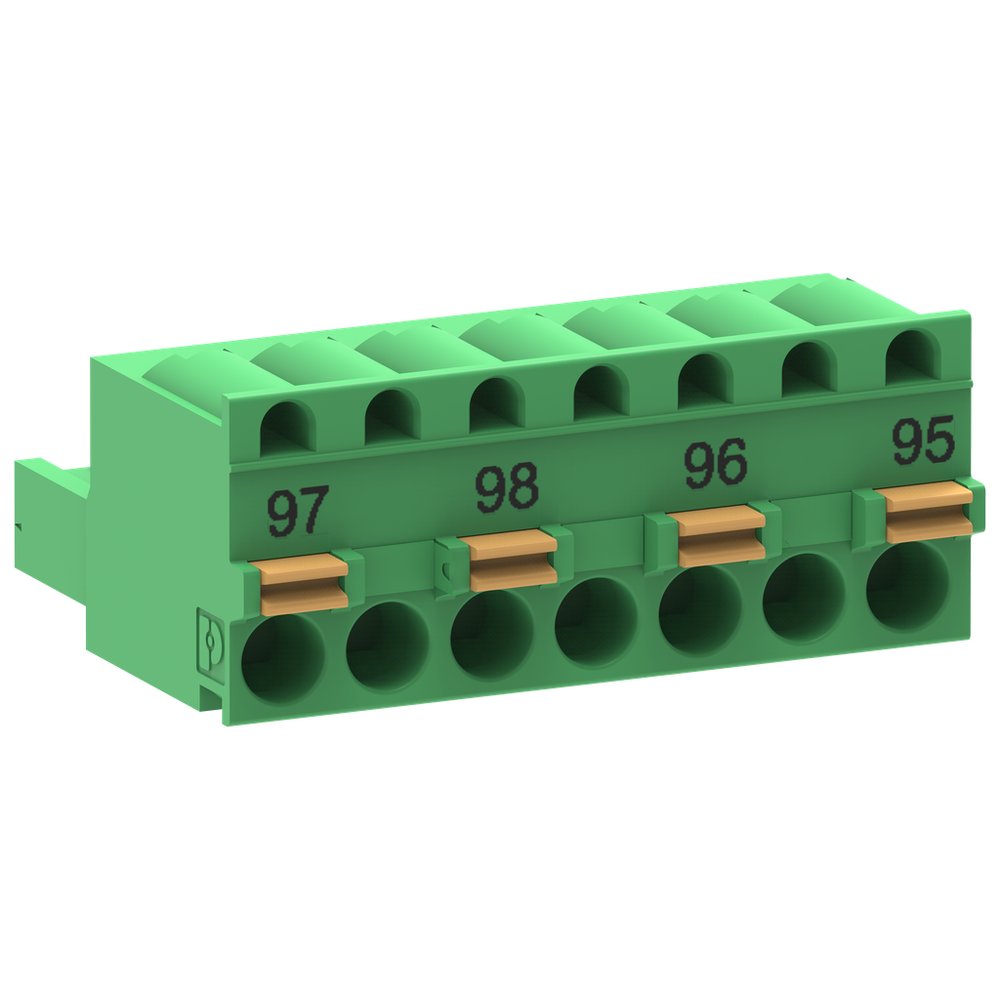

Schneider Electric LA9G82
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
These accessories are terminal block for TeSys Giga electronic overload relay LR9G. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).Terminal block,TeSys Giga electronic overload relay,for LR9G,push-in terminals
Schneider Electric LA9G82 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- control circuit push-in 1 0.2-2.5 mm² solid stranded without cable end || control circuit push-in 1 0.25-2.5 mm² flexible with cable end || control circuit push-in 2 0.5-1.0 mm² with cable end
- Depth
- 36 mm
- Dielectric Test Voltage
- 3000 kV AC, 1 minute
- Height
- 15 mm
- [Ie] Rated Operational Current
- 10 A
- Maximum Horse Power Rating
- 600 V AC 50/60 Hz UL || 600 V AC 50/60 Hz IEC
- Net Weight
- 0.05 kg
- Overvoltage Category
- III
- Pin Number
- 4
- Width
- 26 mm
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Ambient Air Temperature For Storage
- -60-80 °C
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Pollution Degree
- 3 IEC 60947-1
- Standards
- EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.5
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2105014
- Environmental Disclosure
- ENVPEP2105014
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Application
- control circuit
- Device Short Name
- LA9G
- Product Or Component Type
- connector
- Quantity Per Set
- set of 1
- Range
- TeSys
- Range Compatibility
- TeSys G
