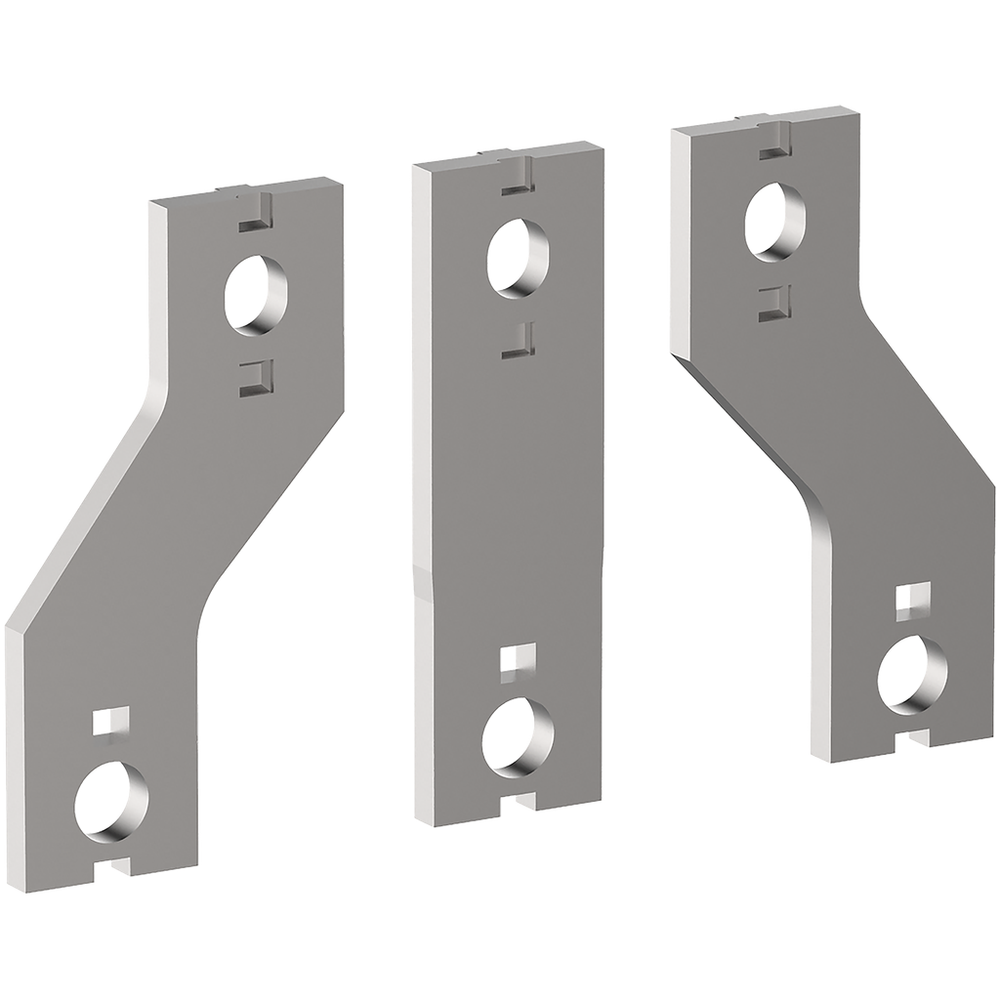

Schneider Electric LA9G3612
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
These accessories are spreader kit for TeSys Giga 265-500 contactor, 45mm-70mm connection. It is used to 3 Poles electrical circuit. They are screwed to the contactor terminals to increase the pitch between poles from 45mm to 70mm. The rated current is up to 500 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).Spreader kit,TeSys Giga contactor,for LC1G265-500,3 pole,45-70 mm pole pitch
Schneider Electric LA9G3612 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connection Pitch
- 70 mm
- Depth
- 75 mm
- Height
- 30 mm
- Line Rated Current
- 330-330 A
- Net Weight
- 0.5 kg
- Product Compatibility
- LC1G265...500
- Width
- 3 mm
Environment
- Ambient Air Temperature For Operation
- -40-60 °C
- Ambient Air Temperature For Storage
- -60-80 °C
- Ip Degree Of Protection
- IP20IEC 60529
- Operating Altitude
- 9842.52 ft (3000 m) without derating || 5000 m with derating factor
- Pollution Degree
- 3 IEC 60947-1
- Product Certifications
- cULus
- Standards
- EN/IEC 60947-1 || UL 60947-1 || CSA C22.2 No 60947-1 || GB/T 14048
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2105013
- Environmental Disclosure
- ENVPEP2105013
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Accessory / Separate Part Category
- connection accessories
- Device Short Name
- LA9G
- Poles Description
- 3P
- Product Or Component Type
- spreader
- Quantity Per Set
- set of 3
- Range Compatibility
- TeSys LC1G || TeSys LR9G
