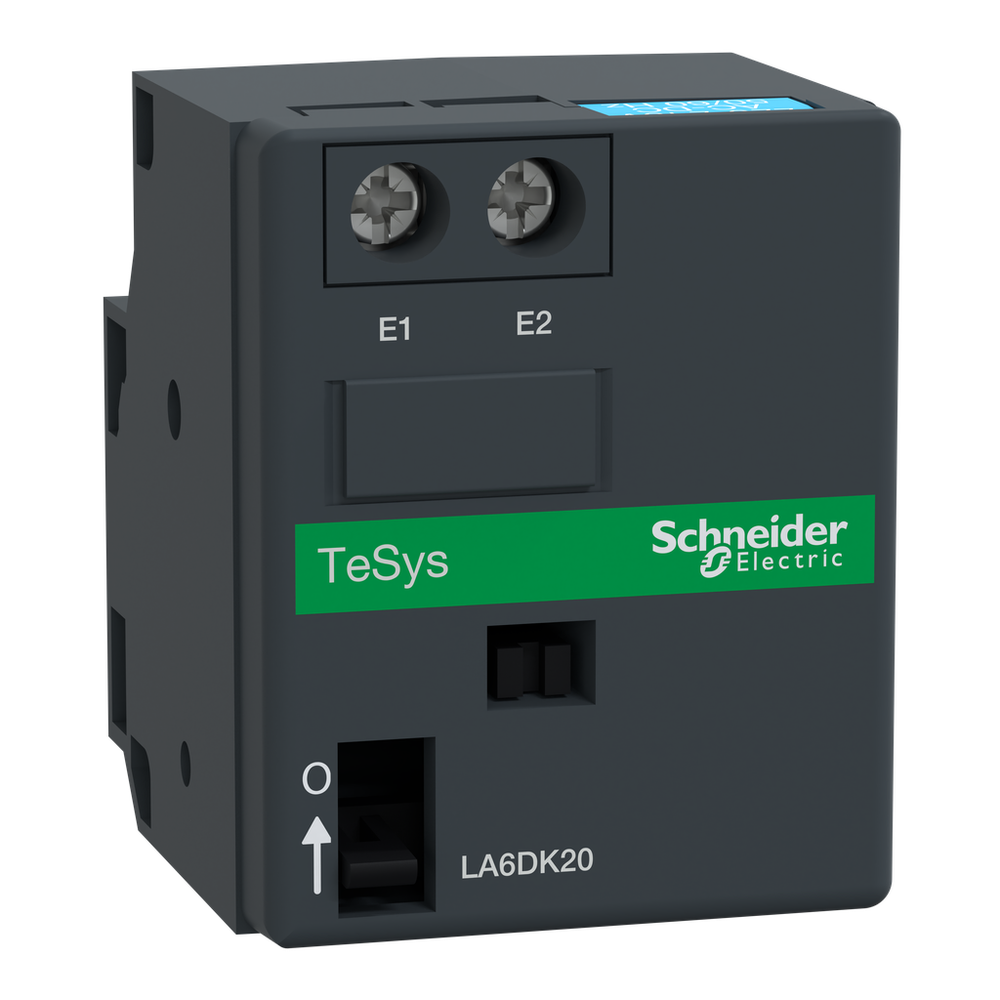

Schneider Electric LA6DK20F
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys Deca mechanical latch block, for contactors LC1D80-D150 (3P/4P) and LP1D40-80 (4P). Electrical latching and unlatching is performed applying a 110-127V control voltage pulse (> 100ms in AC, 250ms in DC). Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. For applications with high operating rates until 1200 cycles/hour. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).CONTACTOR LATCH BLOCK IEC
Schneider Electric LA6DK20F is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Maximum Operating Rate
- 1200 cyc/h
- Mechanical Durability
- 500000 cycles
- Mounting Location
- front side
- Net Weight
- 0.09 kg
- On-Load Factor
- 10 %
- Power Required In Va
- 25 AC
- Power Required In W
- 30 W DC
- Tripping Control
- electrical || manual
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-5-1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Ambient Air Temperature For Storage
- -40-80 °C
- Ip Degree Of Protection
- IP2XIEC 60529
- Product Certifications
- CSA || UL
- Protective Treatment
- THIEC 60068
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI2011001
- Environmental Disclosure
- ENVPEP2011001
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Compatibility
- LC1D80...D150 3 phase AC || LC1D80 3 phase DC || LC1D150 3 phase DC || LC1D80 3 phases + neutral AC || LC1D115 3 phases + neutral AC || LP1D80 3 phases + neutral DC || LC1D115 3 phases + neutral DC
- Product Or Component Type
- mechanical latch block
- Range
- TeSys
- [Uc] Control Circuit Voltage
- 110/127 V AC 50/60 Hz || 110/127 V DC
