Description

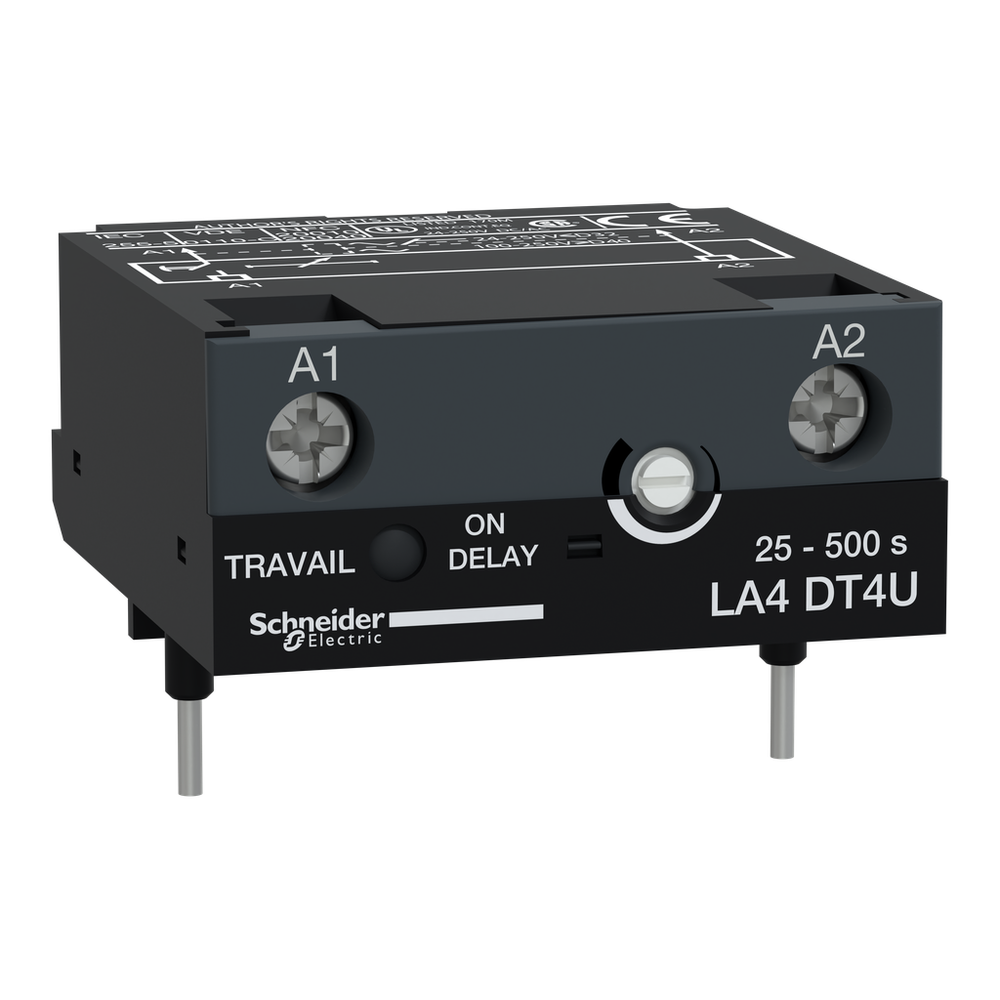

TeSys Deca electronic timer module for LC1D09-D38, LC1D40A-D80A, LC1D80-D150 (3P) contactors. To be used with 24-250V AC control circuit voltages, it provides a manual ajustable on-delay time 25 to 500 sec. The time delay period is signalling by LED. Mounting on contactors LC1D09-D38 using adapter LAD4BB, on contactors LC1D40A-D80A using adpater LAD4BB3, on contactors LC1D80-D150 (3P) directly on coil terminals. Multi standards certified (IEC, UL, CSA), it conforms to RoHS/REACh regulation.electronic timer module - type on delay 25...500 s - 24...250 V DC/AC
Schneider Electric LA4DT4U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- control circuit connector 1 1-2.5 mm²flexible with cable end || control circuit connector 1 1-2.5 mm²solid with cable end || control circuit connector 1 1-2.5 mm²flexible without cable end || control circuit connector 1 1-2.5 mm²solid without cable end || control circuit connector 2 1-2.5 mm²flexible with cable end || control circuit connector 2 1-2.5 mm²solid with cable end || control circuit connector 2 1-2.5 mm²flexible without cable end || control circuit connector 2 1-2.5 mm²solid without cable end
- Control Circuit Voltage Limits
- by mechanical contact 0.8...1.1 Uc
- Electrical Durability
- 30 Mcycles
- Local Signalling
- illuminates during time delay by LED
- Mounting Location
- top
- Net Weight
- 0.04 kg
- Reset Time
- 150 ms during time delay || 50 ms after time delay
- Tightening Torque
- 1.7 N.m
- Time Delay Range
- 25...500 s
- Timer Type
- on delay
- [Uc] Control Circuit Voltage
- 24...250 V AC 50/60 Hz || 24...250 V DC
- [Ui] Rated Insulation Voltage
- 250 V IEC 60947-1
- [Ures] Residual Voltage
- 3.3 V
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Ambient Air Temperature For Storage
- -40-80 °C
- Heat Dissipation
- 2-2 W
- Immunity To Microbreaks
- 10 ms during time delay || 2 ms after time delay
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Permissible Ambient Air Temperature Around The Device
- -25-70 °C
- Product Certifications
- UL || CSA
- Protection Type
- built-in by varistor
- Standards
- IEC 60255-5
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP110702
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- LA4DT
- Poles Description
- 3P
- Product Compatibility
- LC1D09...D38 || LC1D80...D150 || LC1D40A...D80A
- Product Or Component Type
- serial timer modules
- Range
- TeSys
