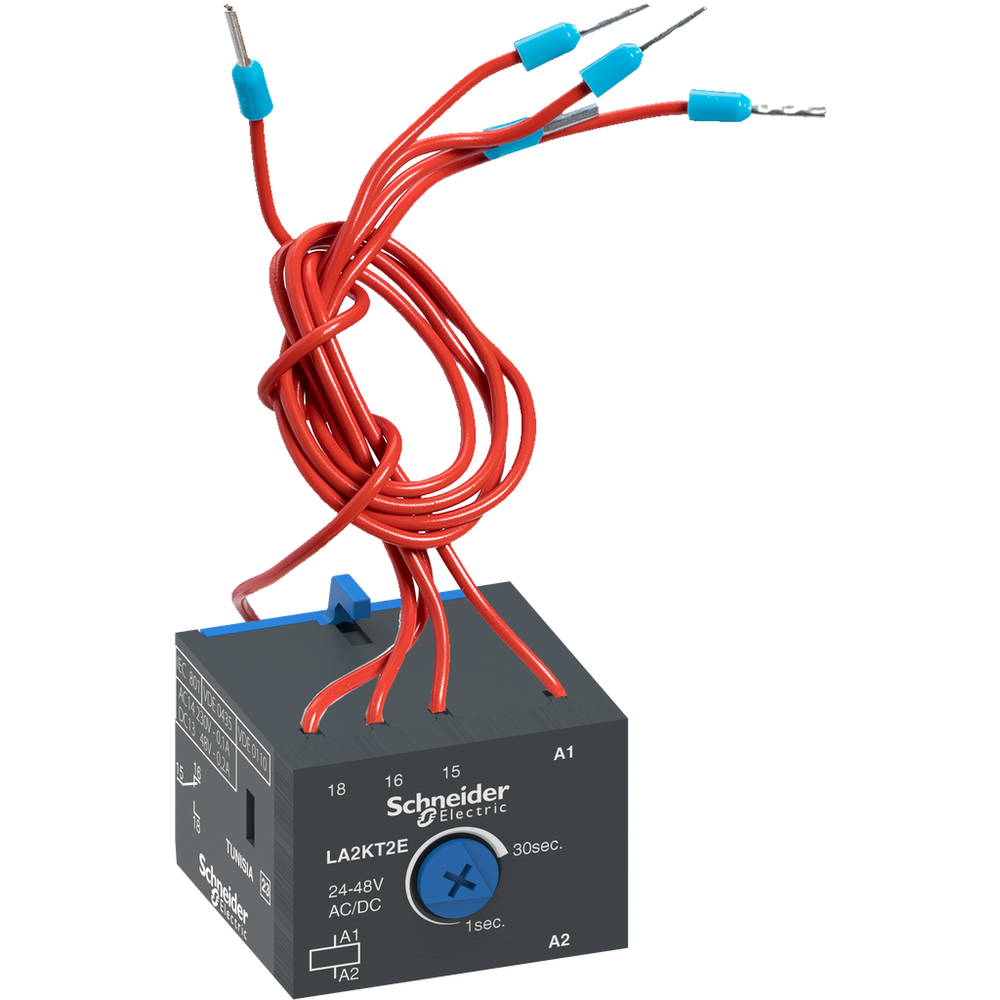

Schneider Electric LA2KT2E
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys K electronic time delay contact block, for contactors LC.K, LP.K, CA.K. It provides 1C/O contact rated up to 2A 240V AC, with an on-delay setting range 1-30s. To be used for contactors with 24-48V AC/DC coils (B7 to E7, BD to ED). Front mounting by clip-on, connections by attached wires to the contactor. It conforms to RoHS/REACh regulation.Electronic time delay auxiliary contact block, TeSys K, 1C/O, on delay 1-30s, front, control 24...48V AC/DC
Schneider Electric LA2KT2E is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- slip-on terminals
- Depth
- 38 mm
- Height
- 27 mm
- Insulation Resistance
- > 10 MOhm
- Net Weight
- 0.04 kg
- Reset Time
- 1.5 s during time delay || 0.5 s after time delay
- Width
- 38 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-60 °C
- Environmental Characteristic
- normal environment
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Protective Treatment
- TC IEC 60068
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP2106022
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Auxiliary Contacts Operation
- time delay
- Device Short Name
- LA1
- [Ith] Conventional Free Air Thermal Current
- 2 A signalling circuit
- Mounting Location
- front
- Pole Contact Composition
- 1 C/O
- Product Certifications
- UL || CSA || CE || UKCA
- Product Name
- TeSys K
- Product Or Component Type
- time delay auxiliary contact block
- Range
- TeSys
- Range Compatibility
- TeSys K LC1K || TeSys K CA2K || TeSys K CA3K || TeSys K CA4K
- Rated Operational Voltage Limits
- 0.85...1.1 Uc
- Standards
- EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1
- Time Delay Range
- 1...30 s
- Timer Type
- on delay
- [Ue] Rated Operational Voltage
- 24...48 V AC/DC control circuit || 240 V AC signalling circuit
