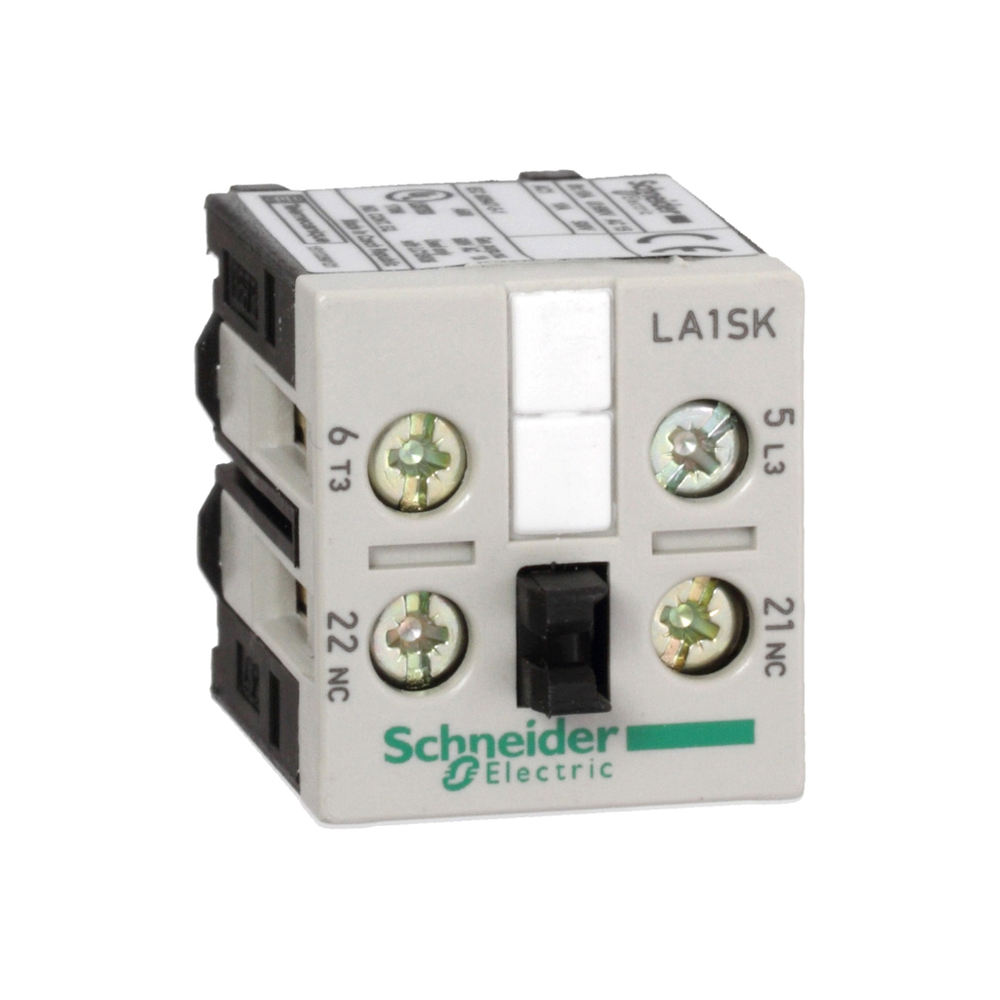

Schneider Electric LA1SK11
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys SK instantaneous auxiliary contact block, for mini contactors LC1SK, LP1SK and mini control relays CA2SK, CA3SK. It provides 1NO+1NC contacts rated up to 10A/690V AC, connection by screw clamp terminals. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).TeSys SK, auxiliary contact block, 1NO+1NC
Schneider Electric LA1SK11 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 10 A gL IEC 60947 || 10 A gL VDE 0660
- [Ith] Conventional Free Air Thermal Current
- 10 A 55 °C
- Mounting Location
- front side
- Net Weight
- 0.022 kg
- Tightening Torque
- 0.8 N.m screw clamp terminals
- [Ue] Rated Operational Voltage
- 690 V AC <= 400 Hz
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947 || 690 V BS 5424 || 690 V VDE 0110 group C || 690 V CSA C22.2 No 14
- Width
- 27 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Ambient Air Temperature For Storage
- -50-70 °C
- Ip Degree Of Protection
- IP2X
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Product Certifications
- CB Scheme || CE || UKCA || EAC || cULus
- Protective Treatment
- TC IEC 60068
- Standards
- CSA C22.2 No 60947-5-1 || EN/IEC 60947-5-1 || UL 60947-5-1
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1503003EN
- Environmental Disclosure
- ENVPEP1503003EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Auxiliary Contacts Operation
- instantaneous
- Connections - Terminals
- screw clamp terminals 1 1.5-6 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.5-6 mm²flexible with cable end || screw clamp terminals 2 0.35-2.5 mm²flexible with cable end || screw clamp terminals 1 0.35-6 mm²flexible without cable end || screw clamp terminals 2 0.35-1.5 mm²flexible without cable end
- Device Short Name
- LA1SK
- Pole Contact Composition
- 1 NO + 1 NC
- Product Compatibility
- LC1SK
- Product Or Component Type
- auxiliary contact block
- Range
- TeSys
