Schneider Electric K2C003H
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

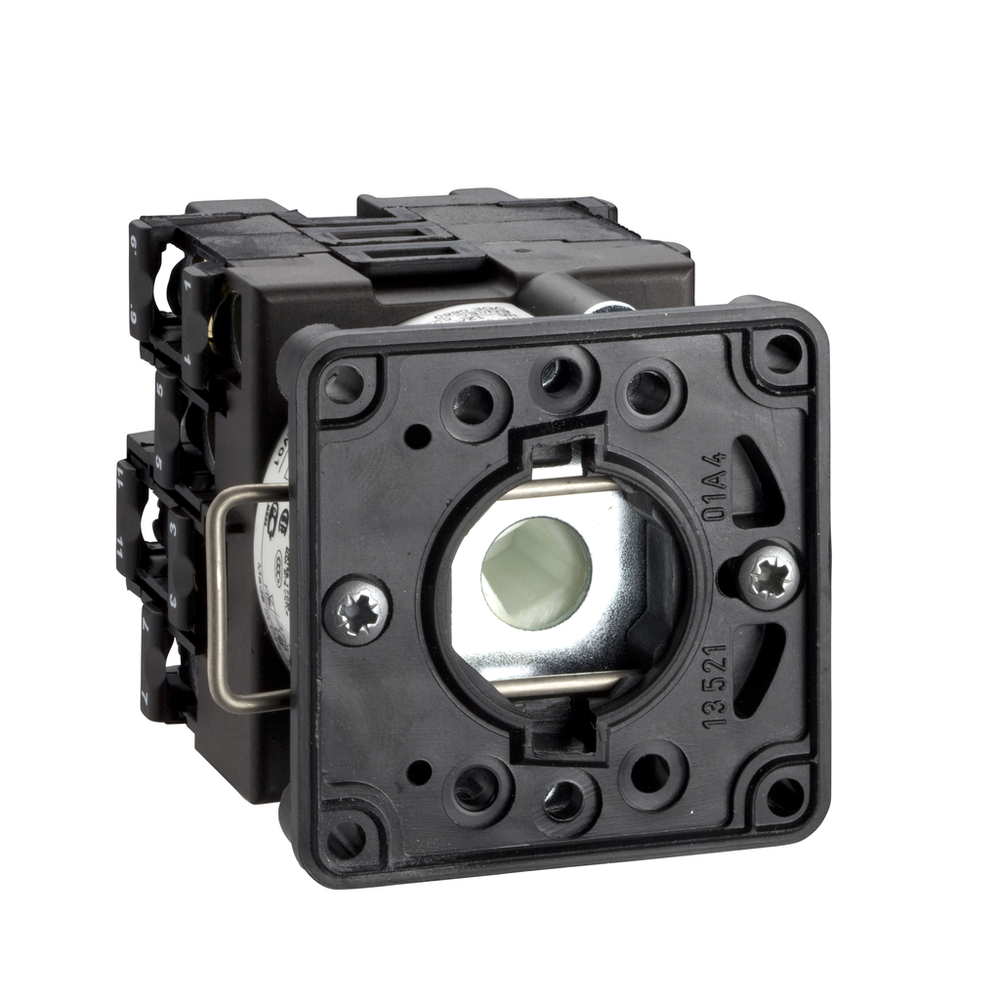

Cam switch body, Harmony K, Ø 22mm, plastic, 3 pole, with 0 position, 90°, 20A
Schneider Electric K2C003H is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Contact Operation
- slow-break
- Electrical Connection
- captive screw clamp terminals flexible 2 x 1.5 mm² || captive screw clamp terminals solid 1 x 2.5 mm²
- Electrical Durability
- 200000 cycles AC-23 || 200000 cycles AC-3 || 600000 cycles AC-15 || 600000 cycles AC-21
- [Ie] Rated Operational Current Ac
- 8 A 400 V AC-3 3 phase IEC 947-3 || 10.8 A 400 V AC-23A 3 phase IEC 947-3 || 14.6 A 230 V AC-23A 3 phase IEC 947-3 || 4.7 A 690 V AC-3 3 phase IEC 947-3 || 6.4 A 690 V AC-23A 3 phase IEC 947-3 || 6.5 A 500 V AC-3 3 phase IEC 947-3 || 8.3 A 230 V AC-3 3 phase IEC 947-3 || 8.9 A 500 V AC-23A 3 phase IEC 947-3 || 2 A 500 V AC-15 IEC 947-5-1 || 3 A 400 V AC-15 IEC 947-5-1 || 4 A 230 V AC-15 IEC 947-5-1
- [Ithe] Conventional Enclosed Thermal Current
- 16 A
- Maximum Operating Rate
- 2.5 cyc/mn AC-21 || 2.5 cyc/mn AC-23 || 2.5 cyc/mn AC-3 || 8.333 cyc/mn AC-15
- Mechanical Durability
- 1000000 cycles
- Net Weight
- 0.105 kg
- Positive Opening
- with
- Rated Operational Power In W
- 1300 W AC-3, 230 V 1 phase IEC 947-3 || 14000 W AC-21, 400 V 3 phase IEC 947-3 || 17000 W AC-21, 500 - 660 V 3 phase IEC 947-3 || 2200 W AC-3, 230 V 3 phase IEC 947-3 || 2200 W AC-3, 400 V 1 phase IEC 947-3 || 4000 W AC-23A, 230 V 3 phase IEC 947-3 || 4000 W AC-3, 400 V 3 phase IEC 947-3 || 4000 W AC-3, 500 V 3 phase IEC 947-3 || 4000 W AC-3, 690 V 3 phase IEC 947-3 || 5500 W AC-23A, 400 V 3 phase IEC 947-3 || 5500 W AC-23A, 500 V 3 phase IEC 947-3 || 5500 W AC-23A, 690 V 3 phase IEC 947-3 || 8000 W AC-21, 230 V 3 phase IEC 947-3
- Short-Circuit Current
- 10000 A
- Short-Circuit Protection
- 20 A cartridge fuse gG
- Switching Angle
- 90 °
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV in isolating function || 6 kV IEC 947-1
- [Ui] Rated Insulation Voltage
- 690 V 3)IEC 60947-1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Overvoltage Category
- class II IEC 536 || class II NF C 20-030
- Product Certifications
- CSA 240 V 3 hp 3 phase 2 || UL 240 V 0.33 hp 1 phase 2 || CSA 240 V 1 hp 1 phase || UL 240 V 1 hp 3 phase
- Protective Treatment
- TC
- Shock Resistance
- 30 gn IEC 68-2-27
- Standards
- IEC 60947-3 power circuit || IEC 60947-5-1 control circuit || CENELEC EN 50013
- Vibration Resistance
- 5 gn 10-150 Hz)IEC 68-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP071103EN_V1
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Bezel Material
- plastic
- Cam Switch Function
- switch
- Component Name
- K2
- Fixing Mode
- Ø 22 mm hole
- [Ith] Conventional Free Air Thermal Current
- 20 A
- Mounting Location
- front
- Off Position
- with Off position
- Poles Description
- 3P
- Product Or Component Type
- cam switch body
- Range Of Product
- Harmony K
- Sub-Assembly Composition
- contact blocks + fixing plate
- Switching Positions
- right: 0° - 90°
