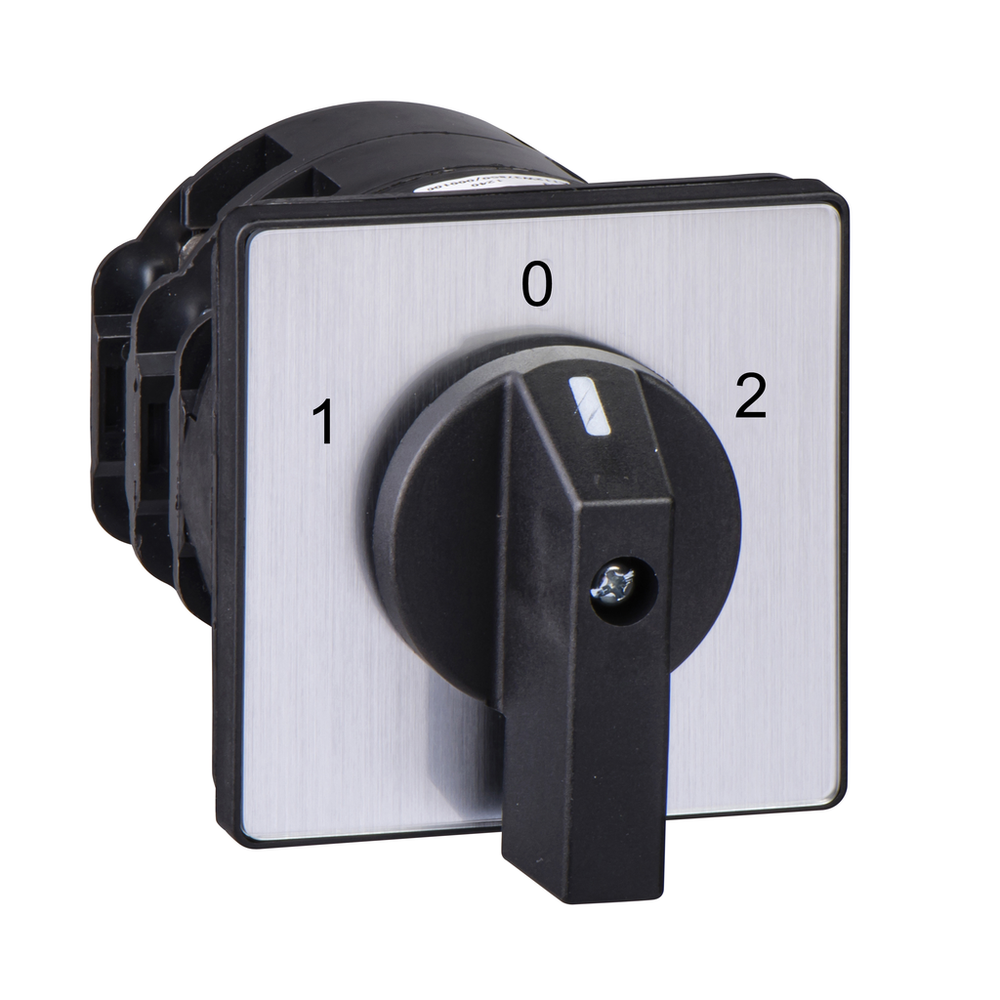

Schneider Electric K115F003UP
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This metal head cam switch is designed to meet most industrial and process control application thanks to a compact size and has several selection functions It has a 60 or 300 degree between its switching positions It works at a rated conventional free air thermal current of 115 ACam changeover switch, Harmony K, front mounting, plastic, 3 poles, position 0, 60°, 115A, 88x88mm, marked 1/2
Schneider Electric K115F003UP is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cad Overall Depth
- 154 mm
- Cad Overall Height
- 88 mm
- Cad Overall Width
- 88 mm
- Contact Operation
- slow-break
- Electrical Connection
- captive screw clamp terminals flexible 1 x 25 mm² || captive screw clamp terminals solid 1 x 35 mm²
- [Ie] Rated Operational Current Ac
- 100 A AC-21A IEC 60947-3
- Mechanical Durability
- 300000 cycles
- Net Weight
- 0.645 kg
- Positive Opening
- with
- Rated Operational Power In W
- 13000 W AC-3, 380/440 V 1 phase IEC 60947-3 || 15000 W AC-23A, 220/240 V 1 phase IEC 60947-3 || 15000 W AC-3, 220/240 V 3 phase IEC 60947-3 || 22000 W AC-23A, 380/440 V 1 phase IEC 60947-3 || 30000 W AC-23A, 220/240 V 3 phase IEC 60947-3 || 30000 W AC-3, 380/440 V 3 phase IEC 60947-3 || 30000 W AC-3, 660/690 V 3 phase IEC 60947-3 || 3700 W AC-3, 110 V 1 phase IEC 60947-3 || 45000 W AC-23A, 380/440 V 3 phase IEC 60947-3 || 5500 W AC-23A, 110 V 1 phase IEC 60947-3 || 65000 W AC-23A, 660/690 V 3 phase IEC 60947-3 || 7500 W AC-3, 220/240 V 1 phase IEC 60947-3
- Short-Circuit Current
- 15000 A
- Short-Circuit Protection
- 125 A cartridge fuse gG
- Switching Angle
- 60 °
- Switching Capacity In Ma
- 100000 mA DC 140 V 3 resistive 1 ms) || 100000 mA DC 24 V 1 inductive 50 ms) || 100000 mA DC 48 V 1 resistive 1 ms) || 100000 mA DC 48 V 2 inductive 50 ms) || 100000 mA DC 70 V 3 inductive 50 ms) || 100000 mA DC 95 V 2 resistive 1 ms) || 115000 mA DC 24 V 1 resistive 1 ms) || 115000 mA DC 48 V 2 resistive 1 ms) || 115000 mA DC 70 V 3 resistive 1 ms) || 33000 mA DC 30 V 1 inductive 50 ms) || 33000 mA DC 60 V 2 inductive 50 ms) || 33000 mA DC 90 V 3 inductive 50 ms)
- Tightening Torque
- 2.5 N.m
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN 947-1 || 6 kV IEC 947-1
- [Ui] Rated Insulation Voltage
- 690 V 3)IEC 60947-1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Overvoltage Category
- class II IEC 60536 || class II NF C 20-030
- Product Certifications
- cULus 120 V 5 hp 1 phase || cULus 240 V 10 hp 1 phase || cULus 240 V 20 hp 3 phase || cULus 480 V 30 hp 3 phase
- Protective Treatment
- TC
- Standards
- IEC 60947-3
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Cam Switch Function
- changeover switch
- Cam Switch Head Type
- with front plate 88 x 88 mm
- Component Name
- K115
- Fixing Mode
- 4 holes
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- [Ith] Conventional Free Air Thermal Current
- 115 A
- Mounting Location
- front
- Off Position
- with Off position
- Poles Description
- 3P
- Presentation Of Legend
- with metallic, 1 - 0 - 2 black
- Product Or Component Type
- complete cam switch
- Range Of Product
- Harmony K
- Return
- without
- Rotary Handle Padlocking
- without
- Switching Positions
- right: 0° - 60° || left: 0° - 300°
- Type Of Operator
- Black handle
