Schneider Electric K10F003UCH
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

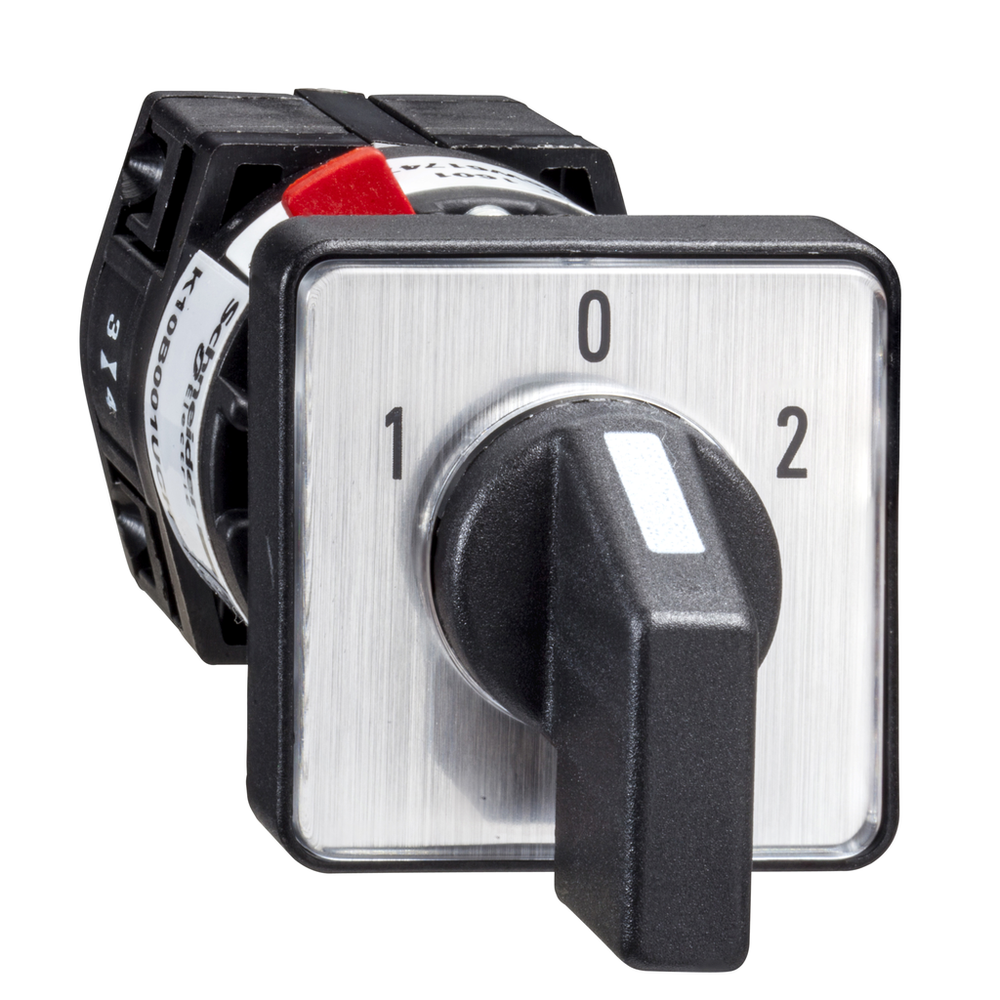

This Harmony K10 complete cam switch/selector switch has 3 poles (3P). It also has a rating of 10A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 0 - 2" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.Cam changeover switch, Harmony K, Ø16 or 22mm , plastic, 3 poles, position 0, 60°, 10A, 30x30mm, marked 1/0/2
Schneider Electric K10F003UCH is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cad Overall Depth
- 100 mm
- Cad Overall Height
- 30 mm
- Cad Overall Width
- 30 mm
- Contact Operation
- slow-break
- Electrical Connection
- captive screw clamp terminals 2 x 1.5 mm²
- Electrical Durability
- 100000000 cycles
- [Ie] Rated Operational Current Ac
- 10 A 400 V AC-1 || 10 A 400 V AC-21A || 3 A 240 V AC-15 || 6 A 120 V AC-15
- [Ie] Rated Operational Current Dc
- 10 A 24 V resistive || 0.3 A 220 V resistive || 0.7 A 110 V resistive
- Mechanical Durability
- 1000000 cycles
- Net Weight
- 0.055 kg
- Rated Operational Power In W
- 1800 W AC-23A, 220/240 V 3 phase || 370 W AC-23A, 110/120 V 1 phase || 750 W AC-23A, 220/240 V 1 phase
- Rated Power In Hp
- 1 hp 220/240 V AC, 3 phase || 0.33 hp 110/120 V AC, 1 phase || 0.75 hp 110/120 V AC, 3 phase || 0.75 hp 220/240 V AC, 1 phase
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Switching Angle
- 60 °
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 440 V 3)IEC 60947-1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -20-55 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 60536
- Product Certifications
- cULus
- Protective Treatment
- TC
- Standards
- CENELEC EN 50013 || EN/IEC 60947-3 || EN/IEC 60947-5-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Cam Switch Function
- changeover switch
- Cam Switch Head Type
- with front plate 30 x 30 mm
- Component Name
- K10
- Fixing Mode
- Ø 16 or 22 mm hole
- Ip Degree Of Protection
- contact block: IP20 || operating head: IP65 conforming to IEC 60529
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Off Position
- with Off position
- Poles Description
- 3P
- Presentation Of Legend
- with metallic, 1 - 0 - 2 black
- Product Mounting
- front mounting
- Product Or Component Type
- complete cam switch
- Range Of Product
- Harmony K
- Return
- without
- Rotary Handle Padlocking
- without
- Switching Positions
- right: 0° - 60° || left: 0° - 300°
- Type Of Operator
- Black handle
