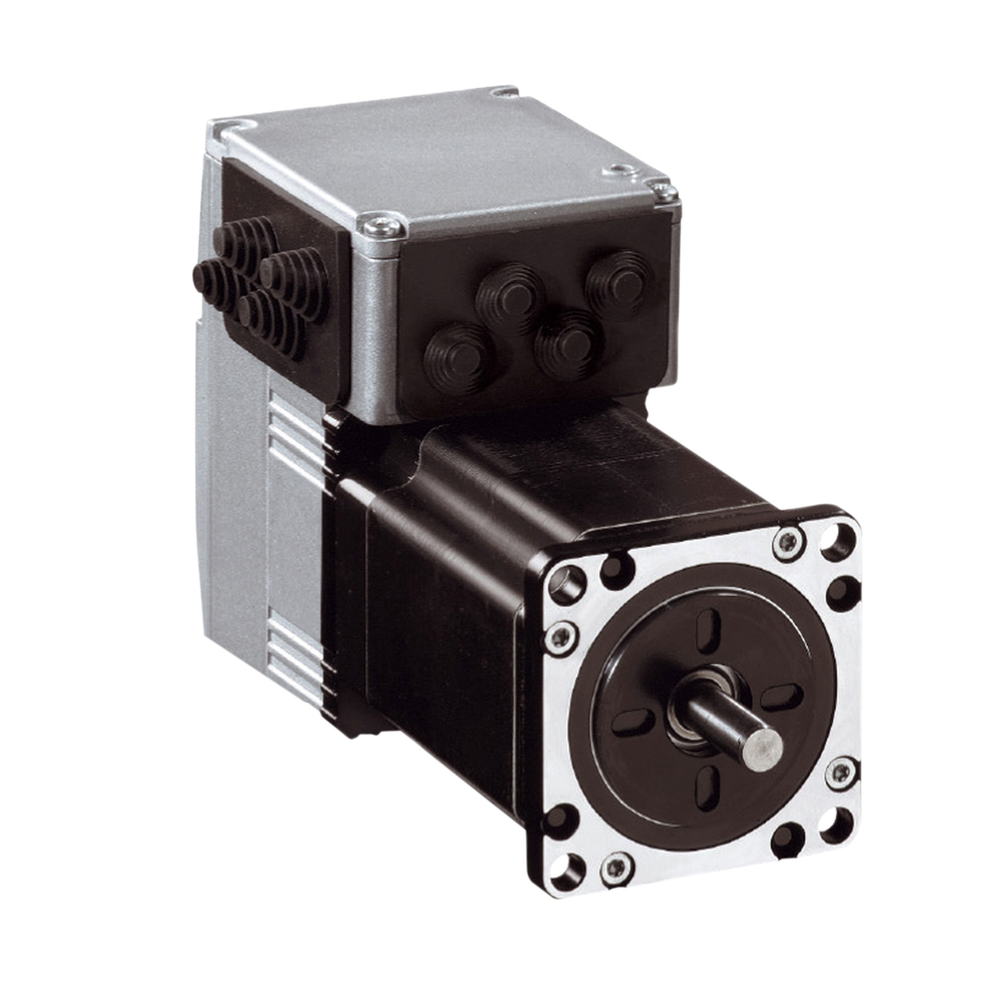

Schneider Electric ILS2E573PC1A0
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
integrated drive ILS with stepper motor - 24..48 V - EtherCAT - 3.5 A
Schneider Electric ILS2E573PC1A0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accuracy Error
- +/- 6 arc min
- Associated Fuse Rating
- 16 A
- Centring Collar Depth
- 1.6 mm
- Centring Collar Diameter
- 38.1 mm
- Circle Diameter Of The Mounting Holes
- 66.6 mm
- Commissioning Interface
- RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
- Continuous Stall Torque
- 1.5 N.m
- Current Consumption
- 3500 mA maximum continuous
- Discrete Input Current
- 10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface
- Discrete Output Voltage
- 23...25 V
- Feedback Type
- index pulse
- Input/Output Type
- 4 signals (each be used as input or output)
- Marking
- CE
- Maximum Axial Force Fa
- 100 N tensile force) || 8.4 N force pressure)
- Maximum Mechanical Speed
- 3000 rpm
- Maximum Radial Force Fr
- 50 N
- Maximum Switching Current
- 100 mA per output || 200 mA total
- Motor Flange Size
- 57 mm
- Mounting Holes Diameter
- 5.2 mm
- Mounting Support
- flange
- Net Weight
- 2 kg
- Number Of Motor Stacks
- 3
- Number Of Mounting Holes
- 4
- Peak Stall Torque
- 1.5 N.m
- Protection Type
- safe torque off || overload of output voltage || short circuit of the output voltage
- Rotor Inertia
- 0.38 kg.cm²
- Second Shaft
- without second shaft end
- Service Life In Hours
- 20000 h bearing
- Shaft Diameter
- 8 mm
- Shaft End
- untapped
- Shaft Length
- 21 mm
- Speed Feedback Resolution
- 20000 points/turn
- Supply Voltage Limits
- 18-55 V
- Transmission Rate
- 100 Mbits
- Type Of Cooling
- natural convection
- Voltage State 0 Guaranteed
- -3...4.5 V
- Voltage State 1 Guaranteed
- 15...30 V
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- shaft bushing IP41 EN/IEC 60034-5 || total except shaft bushing IP54 EN/IEC 60034-5
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating
- Permissible Ambient Air Temperature Around The Device
- 105 °C power amplifier || 110 °C motor
- Product Certifications
- UL || TÜV || cUL
- Relative Humidity
- 15-85 % without condensation
- Shock Resistance
- 150 m/s² 1000 shocks EN/IEC 60068-2-29
- Standards
- EN 61800-3 : 2001-02 || IEC 60072-1 || EN/IEC 61800-3 || IEC 61800-3, Ed 2 || EN 61800-3:2001, second environment || EN 50347 || EN/IEC 50178
- Vibration Resistance
- 20 m/s² 10-500 Hz) 10 cycles EN/IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1411002EN
- Environmental Disclosure
- ENVPEP1411002EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Communication Interface
- EtherCAT, Integrated
- Device Short Name
- ILS
- Electrical Connection
- industrial connector
- Gear Box Type
- without
- Holding Brake
- without
- Holding Torque
- 1.5 N.m
- Length
- 138.9 mm
- Motor Type
- 3-phase stepper motor
- Network Type
- DC
- Nominal Speed
- 300 rpm 24 V || 600 rpm 48 V
- Nominal Torque
- 1.5 N.m
- Number Of Motor Poles
- 6
- Phase
- single phase
- Product Or Component Type
- motion integrated drive
- Range Of Product
- Lexium integrated drive
- [Us] Rated Supply Voltage
- 24 V || 48 V
- Winding Type
- medium speed of rotation and medium torque
