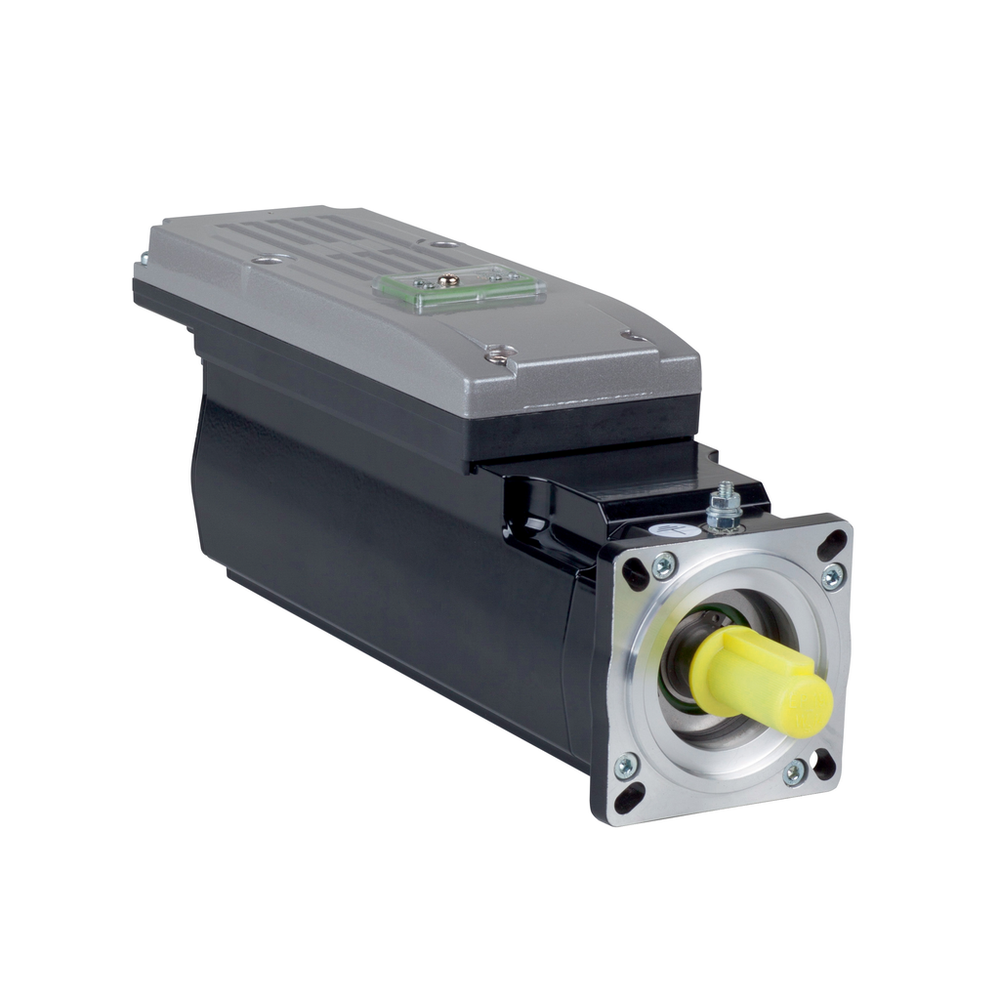

Schneider Electric ILM0702P12A0000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the PacDrive 3 range, an offer of integrated servo motors for machines from 0.31kW to 1.91kW. The 6-pole integrated servo motor features 2 stacks with a maximum mechanical speed of 6000RPM, a continuous rated stall torque 1.7Nm and parallel keyed. It is an equipped with a multi-turn SinCos Hiperface® absolute encoder (128 periods per revolution) without holding brake. It is an integrated servo motor with a supply voltage of 250V to 700V, a continuous stall current of 2.5A and a maximum continuous power of 0.72kW. The shaft dimensions are 11mm (diameter) x 23mm (length). It is an IP54 rated product. The length of this product is 226mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 3.4kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. It supports international standard 70mm flange mount with a natural convection cooling system. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.integrated servo motor- 1.7 Nm - 6000 rpm- keyed shaft- multiturn- without brake
Schneider Electric ILM0702P12A0000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Back Emf Constant
- 48 V/krpm 20 °C
- Centring Collar Depth
- 2.5 mm
- Centring Collar Diameter
- 60 mm
- Circle Diameter Of The Mounting Holes
- 82 mm
- Continuous Stall Current
- 2.5 A
- Continuous Stall Torque
- 1.7 N.m
- Feedback Type
- absolute multiturn SinCos Hiperface
- Holding Brake
- without
- Key Width
- 18 mm
- Length
- 226 mm
- Line Rated Current
- 1.5 A
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Current Irms
- 11.8 A
- Maximum Radial Force Fr
- 710 N 1000 rpm || 560 N 2000 rpm || 490 N 3000 rpm || 450 N 4000 rpm || 410 N 5000 rpm || 390 N 6000 rpm
- Motor Flange Size
- 70 mm
- Mounting Holes Diameter
- 5.5 mm
- Mounting Support
- international standard flange
- Net Weight
- 3.4 kg
- Nominal Output Power
- 720 W
- Nominal Speed
- 6000 rpm
- Nominal Torque
- 1.15 N.m
- Number Of Motor Poles
- 6
- Number Of Motor Stacks
- 2
- Number Of Mounting Holes
- 4
- Peak Stall Torque
- 7.6 N.m
- Rotor Inertia
- 0.41 kg.cm²
- Second Shaft
- without second shaft end
- Shaft Diameter
- 11 mm
- Shaft End
- keyed
- Shaft Length
- 23 mm
- Speed Feedback Resolution
- 128 periods
- Stator Inductance
- 19 mH 20 °C Ph/Ph || 9.5 mH 120 °C Ph/N
- Stator Resistance
- 4.2 Ohm 20 °C Ph/Ph || 2.92 Ohm 120 °C Ph/N
- Torque Constant
- 0.76 N.m/A 120 °C
- Type Of Cooling
- natural convection
- [Us] Rated Supply Voltage
- 250...700 V
Contractual warranty
- Warranty
- 18 months
Environment
- Ip Degree Of Protection
- IP54
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1409011EN
- Environmental Disclosure
- ENVPEP1409011EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- ILM
- Product Or Component Type
- servo motor integrated drive
- Range Of Product
- PacDrive 3
