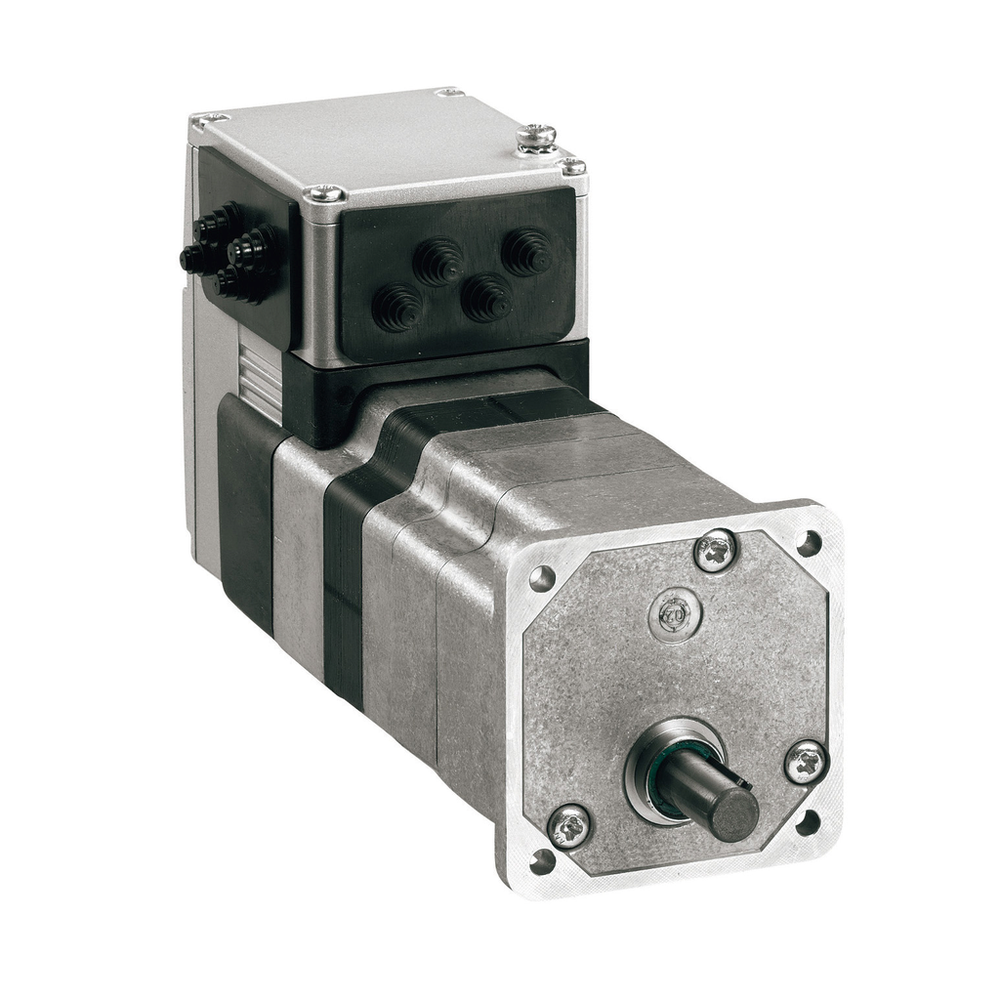

Schneider Electric ILE2E661PC1A3

Complementary

• Accuracy Error
  • +/- 0.5 point
• Associated Fuse Rating
  • 16 A
• Centring Collar Depth
  • 4 mm
• Centring Collar Diameter
  • 16 mm
• Circle Diameter Of The Mounting Holes
  • 73.54 mm
• Commissioning Interface
  • RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
• Continuous Stall Torque
  • 11.6 N.m
• Current Consumption
  • 7000 mA peak || 5500 mA maximum continuous
• Detent Torque
  • 4.36 N.m
• Discrete Input Current
  • 10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
• Discrete Output Voltage
  • 23...25 V
• Feedback Type
  • BLDC encoder
• Input/Output Type
  • 4 signals (each be used as input or output)
• Key Width
  • 16 mm
• Marking
  • CE
• Maximum Axial Force Fa
  • 10 N long-term operation) || 80 N short-term operation)
• Maximum Mechanical Speed
  • 92 rpm
• Maximum Radial Force Fr
  • 200 N long-term operation) || 200 N short-term operation)
• Maximum Supply Current
  • 0.1 A power stage disabled) || 6.8 A 24 V || 3.8 A 48 V
• Maximum Switching Current
  • 100 mA per output || 200 mA total
• Maximum Torsional Backlash
  • 1 °
• Motor Flange Size
  • 66 mm
• Mounting Holes Diameter
  • 4.4 mm
• Mounting Support
  • flange
• Net Weight
  • 1.85 kg
• Nominal Output Power
  • 112 W 48 V || 90 W 24 V
• Number Of Motor Stacks
  • 1
• Number Of Mounting Holes
  • 4
• Peak Stall Torque
  • 20.9 N.m 24 V || 20.9 N.m 48 V
• Protection Type
  • overload of output voltage || short circuit of the output voltage || safe torque off
• Rotor Inertia
  • 441 kg.cm²
• Second Shaft
  • without second shaft end
• Service Life In Hours
  • 2500 h bearing short-term operation || 15000 h bearing long-term operation
• Shaft Diameter
  • 10 mm
• Shaft End
  • keyed
• Shaft Length
  • 25 mm
• Speed Feedback Resolution
  • 12 points/turn motor || 0.55° gearbox output
• Supply Voltage Limits
  • 18-55.2 V
• Transmission Rate
  • 100 Mbits
• Type Of Cooling
  • natural convection
• Voltage State 0 Guaranteed
  • -3...4.5 V
• Voltage State 1 Guaranteed
  • 15...30 V

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • 40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)
• Ambient Air Temperature For Storage
  • -25-70 °C
• Ip Degree Of Protection
  • shaft bushing IP41 EN/IEC 60034-5 || total except shaft bushing IP54 EN/IEC 60034-5
• Operating Altitude
  • <= 3280.84 ft (1000 m) without derating
• Permissible Ambient Air Temperature Around The Device
  • 105 °C power amplifier || 110 °C motor
• Product Certifications
  • UL || TÜV || cUL
• Relative Humidity
  • 15-85 % without condensation
• Shock Resistance
  • 150 m/s² 1000 shocks EN/IEC 60068-2-29
• Standards
  • IEC 61800-3, Ed 2 || EN/IEC 61800-3 || EN/IEC 50178 || EN 61800-3:2001, second environment || EN 61800-3 : 2001-02 || EN 50347 || IEC 60072-1
• Vibration Resistance
  • 20 m/s² 10-500 Hz) 10 cycles EN/IEC 60068-2-6

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1411012EN
• Environmental Disclosure
  • ENVPEP1411012EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Pvc Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Communication Interface
  • EtherCAT, Integrated
• Device Short Name
  • ILE
• Electrical Connection
  • industrial connector
• Gear Box Type
  • straight teeth gear, 4 stages
• Holding Brake
  • without
• Length
  • 174 mm
• Motor Type
  • brushless DC motor
• Network Type
  • DC
• Nominal Speed
  • 73 rpm 24 V || 92 rpm 48 V
• Nominal Torque
  • 10 N.m 24 V || 10 N.m 48 V
• Number Of Motor Poles
  • 6
• Phase
  • single phase
• Product Or Component Type
  • motion integrated drive
• Range Of Product
  • Lexium integrated drive
• Reduction Ratio
  • 54:1 (490:9)
• [Us] Rated Supply Voltage
  • 48 V || 24 V
• Winding Type
  • medium speed of rotation and medium torque
