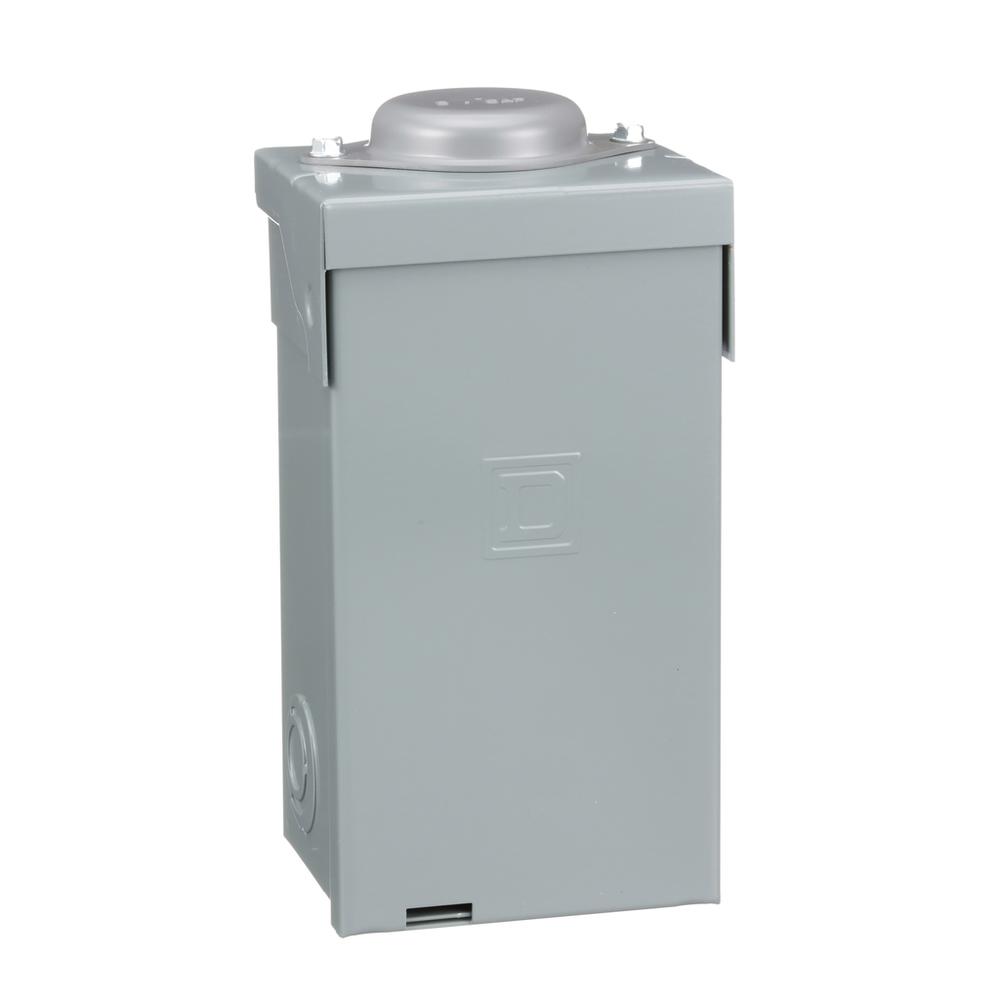

Schneider Electric HOM24L70RB
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with fixed main lugs that are rated at 70A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 2 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 14 AWG to 4 AWG copper or 12 AWG to 3 AWG aluminum wire. This Homeline load center has a height of 9.37 inches, a width of 4.88 inches, and depth of 4.01 inches. Homeline load centers are UL Listed.Load center, Homeline, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA3R
Schneider Electric HOM24L70RB is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Awg Gauge
- AWG 12...AWG 3 aluminium || AWG 14...AWG 4 copper
- Box Number
- 1R
- Depth
- 102 mm
- Device Composition
- grounding bar (ordered separately)
- Enclosure Material
- welded galvannealed steel
- Height
- 238 mm
- Material
- tin plated aluminium busbar
- Number Of Tandem Circuit Breakers
- 2
- Phase
- 1 phase
- Short-Circuit Current
- 10 kA
- Surface Finish
- baked enamel Gray
- Width
- 124 mm
- Wiring Configuration
- 3-wire
Contractual warranty
- Warranty
- Lifetime
Environment
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
- Product Certifications
- UL listed file E-6294
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Environmental Disclosure
- ENVPEP1403002
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Cover Type
- surface cover
- Line Rated Current
- 70 A
- Load Center Type
- Fixed Mains (lugs)
- Nema Degree Of Protection
- NEMA 3R outdoor
- Number Of Circuits
- 4
- Number Of Spaces
- 2
- Product Or Component Type
- Load Center
- Range Of Product
- Homeline
