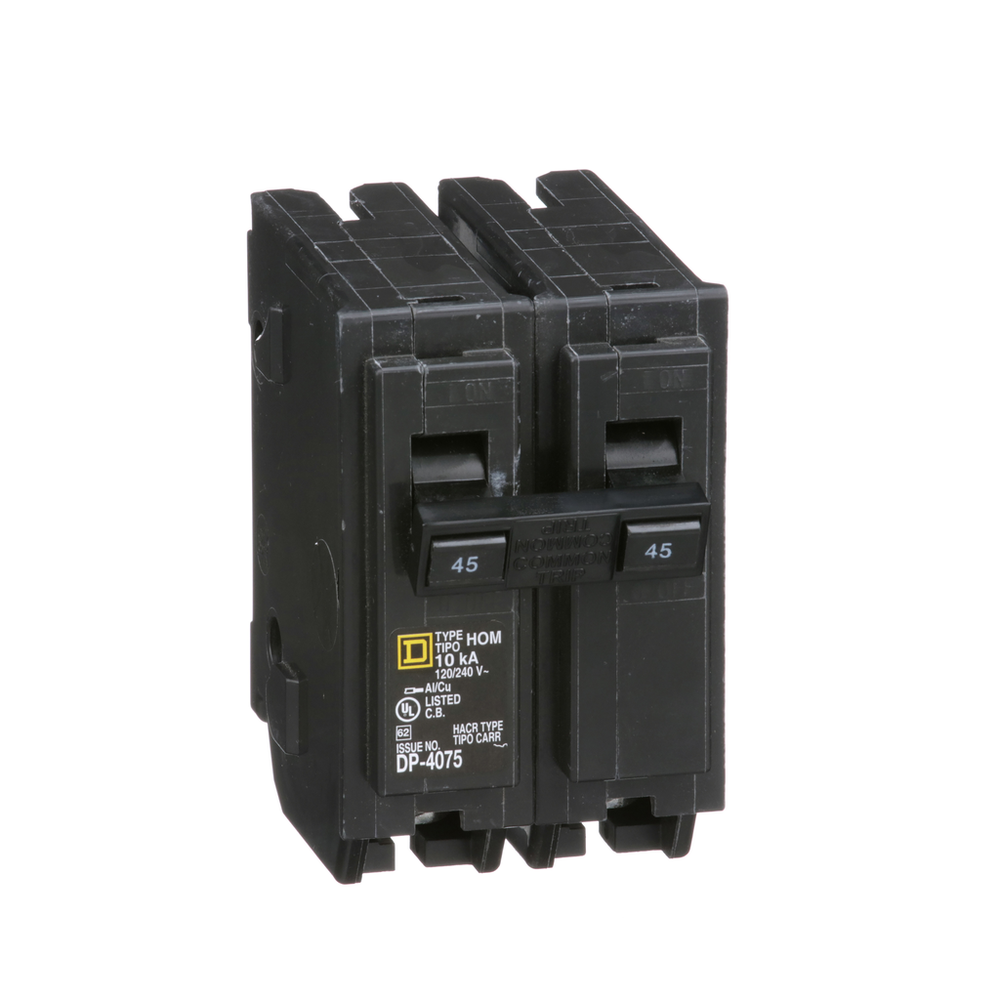

Schneider Electric HOM245
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 45A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.Mini circuit breaker, Homeline, 45A, 2 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
Schneider Electric HOM245 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Depth
- 2.98 in
- Height
- 3.13 in
- Tightening Torque
- 4.6-4.6 N.m (AWG 8...AWG 2)
- Width
- 2 in
Contractual warranty
- Warranty
- Lifetime
Environment
- Ambient Air Temperature For Operation
- 40 °C
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Environmental Disclosure
- ENVPEP1308001
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Awg Gauge
- 1 x AWG 8...AWG 2 ( aluminium/copper )
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- standard
- Electrical Connection
- box lugs
- Line Rated Current
- 45 A
- Mounting Mode
- plug-in
- Number Of Spaces Required
- 2
- Poles Description
- 2P
- Product Certifications
- UL Listed
- Product Or Component Type
- miniature circuit-breaker
- Range Of Product
- Homeline
- Short-Circuit Current
- 10 kA
- [Ue] Rated Operational Voltage
- 120/240 V AC
