Description

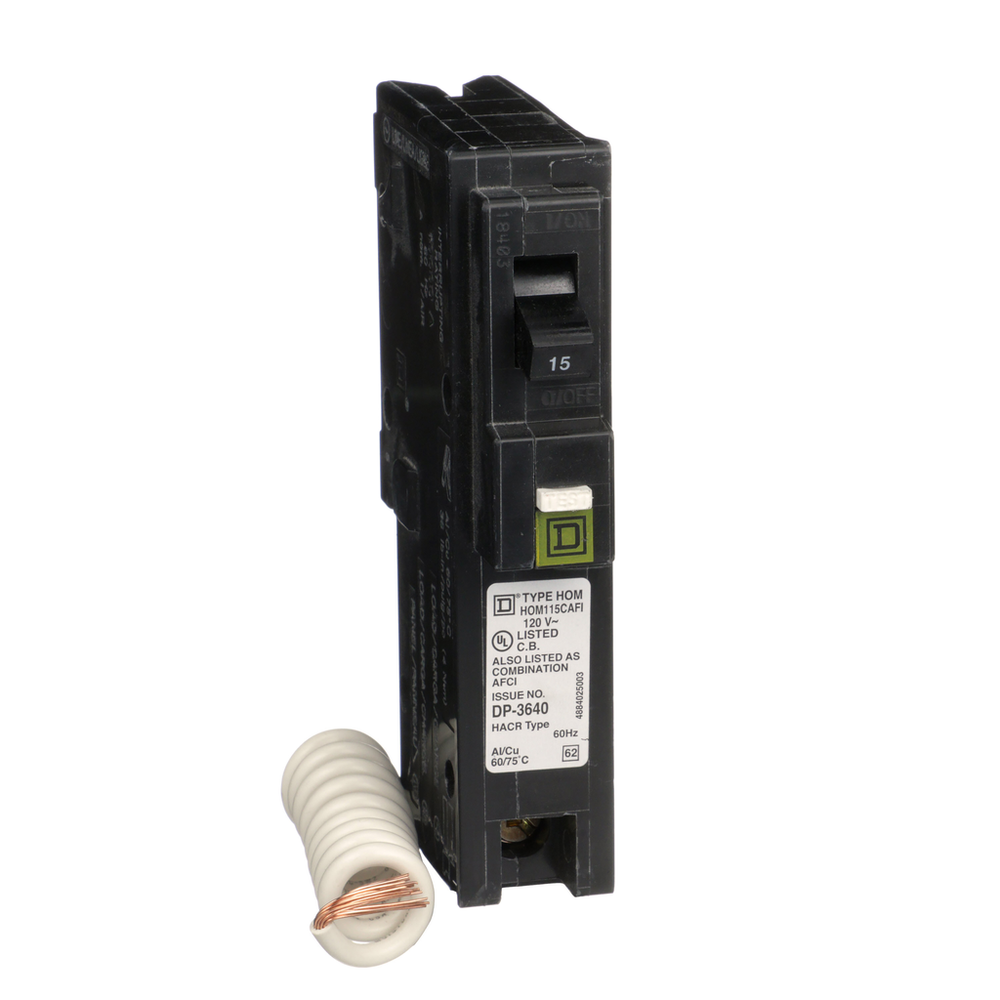

Square D™ Homeline™ Miniature Circuit Breakers, HOM115CAFIC, is in a 1 inch wide format for 1-pole circuit breakers. They are designed to plug into Homeline load centers. Equipped with Combination ground and Arc-fault interrupter (Pigtail Neutral). Comes in clam packing. UL listed.Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, combo arc fault, pigtail neutral, plug in, UL
Schneider Electric HOM115CAFIC is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- pigtail neutral
- Depth
- 2.98 in
- Height
- 3.13 in
- Net Weight
- 0.30 kg
- Tightening Torque
- 4.0-4.0 N.m 2.5-6 mm² (AWG 14...AWG 8)
- Width
- 1 in
Contractual warranty
- Warranty
- Lifetime
Environment
- Ambient Air Temperature For Operation
- 40 °C
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile
- ENVEOLI1406034
- Environmental Disclosure
- ENVPEP1406034
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free product
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Awg Gauge
- 1 x AWG 14...AWG 8 ( aluminium/copper ) || 1 x AWG 14...AWG 10 ( copper )
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- combination ARC-fault
- Electrical Connection
- screw clamp terminals
- Line Rated Current
- 15 A
- Mounting Mode
- plug-in
- Number Of Spaces Required
- 1
- Poles Description
- 1P
- Product Certifications
- UL Listed
- Product Or Component Type
- miniature circuit-breaker
- Range Of Product
- Homeline
- Short-Circuit Current
- 10 kA
- Type Of Packing
- clam packaging
- [Ue] Rated Operational Voltage
- 120 V AC
