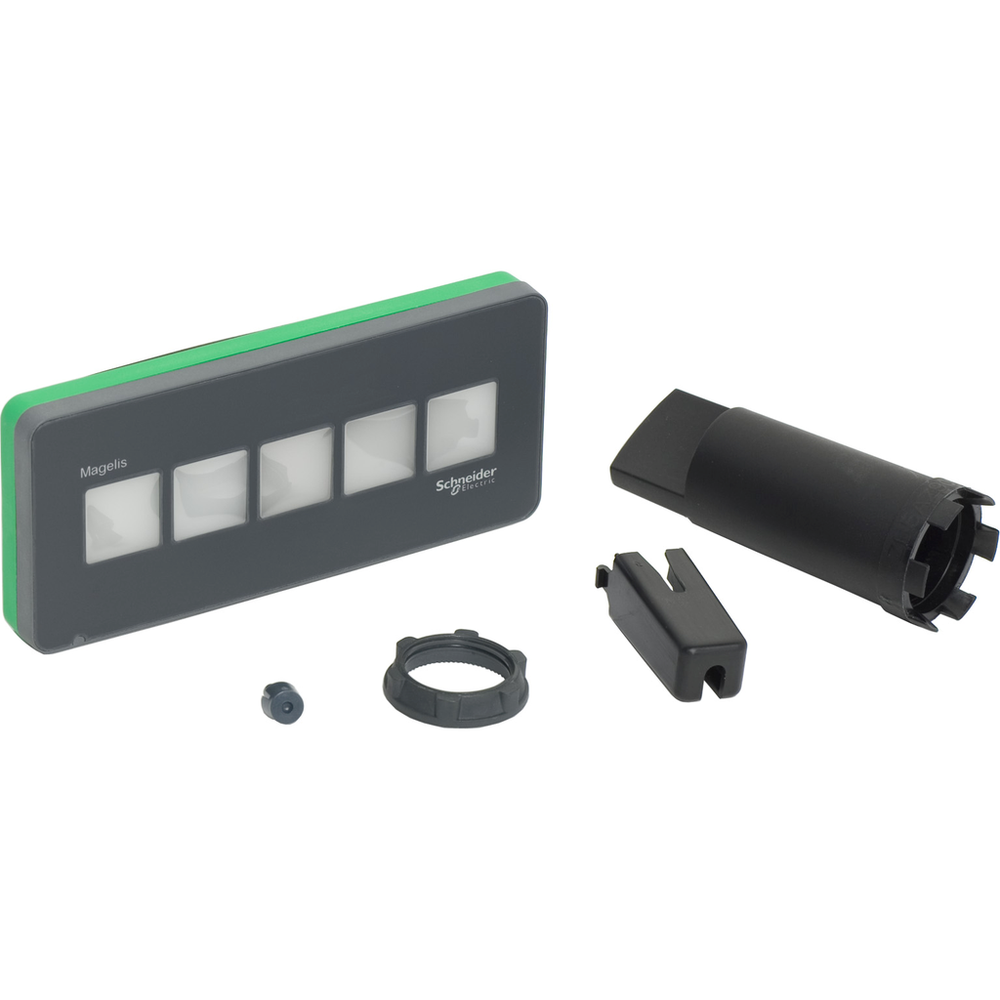

Schneider Electric HMIZRA1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This illuminated USB switch accessory is connected via a USB cable and compatible with Harmony HMI range terminals. HMIZRA1 with click sensation is used as function keys with an HMI terminal where repetitive and reliable operations in dirty environments are required, while keeping the touch panel clean and protected. It is IP65 protected and has 5 switches with backlit LED. With Vijeo Desigher, the switches can be set to alarm display and acknowledgement mode or illuminated function keys mode. It is designed with wide view angle and brightness for easy visualization and quick acknowledgement of alarm. It offers water-resistance and can operate in harsh environments. The users can select and adjust the colors of the switch. It weighs 0.110Kg. It iis ideal for use in industrial applications like machine tool, packaging, printing, automotive, metal processing, food and beverage, and paper. It is compatible with Harmony Panel PC and Box PC, XBTGT, XBTGC, HMIGTO, HMIGXO, and HMISCU terminals. It is an Ideal complement to Harmony HMI series for direct access to functions without the need to touch the screen.Illuminated Switch-5 Function keys with multi-color LEDs backlit
Schneider Electric HMIZRA1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Colour Of Cover
- front dark grey
- Connector Type
- USB type B
- Control Type
- 5 push-buttons multi-colour backlit LED
- Depth
- 28 mm
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 || electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4
- Height
- 54 mm
- Mounting Location
- flat surface
- Net Weight
- 0.11 kg
- Power Consumption In W
- 2 W
- Quantity Per Set
- 1 piece
- Shock Resistance
- 147 m/s²3 chocks in each direction X, Y and Z IEC 61131-2
- Software Designation
- Vijeo Designer >= V6.1 SP2
- Supply Voltage Limits
- 4.75-5.25 V DC
- [Us] Rated Supply Voltage
- 5 V DC USB 2.0
- Width
- 122 mm
Environment
- Ambient Air Temperature For Storage
- -20-60 °C
- Environmental Characteristic
- corrosive gas free
- Ip Degree Of Protection
- IP65 front panel (in enclosure))
- Level Or Class
- Class I Division 2 Groups A/B/C/D
- Nema Degree Of Protection
- NEMA 4X indoor installation || NEMA 13 enclosed outdoor
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Pollution Degree
- 2
- Product Certifications
- GOST || UL/cUL listed || C-tick || CE
- Relative Humidity
- 10-90 % 0-55 °C non-condensing
- Standards
- CSA C22.2 No 142 || UL 508 || CSA C22.2 No 213 || EN 61000-6-4 || ANSI/ISA 12.12.01 || EN 61000-6-2 || EMC 2004/108/EC
- Vibration Resistance
- 3.5 mm 5-9 Hz)IEC 61131-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- food and beverage || industrial machines
- Product Compatibility
- XBTGC - controller panel || XBTGT2... - advanced touch panel || HMISTO - touch panel || HMISCU - touch panel || XBTGT6... - advanced touch panel || HMIGTW - advanced touch panel || XBTGK - graphic display || XBTGT4... - advanced touch panel || XBTGT5... - advanced touch panel || XBTGT7... - advanced touch panel || HMISTU - touch panel || HMIGTO - advanced touch panel || HMIPSP - S-Panel PC || HMIPSO - S-Panel PC || HMIBMU - Modular Box PC || HMIBMP - Modular Box PC || HMIBMO - Modular Box PC || HMIBMI - Modular Box PC
- Product Or Component Type
- illuminated USB switch
- Provided Equipment
- 1 x User Manual || 1 x USB type B cable clamp || 1 x fixing nut || 1 x tightening wrench || 1 x anti-rotation tee || 1 x gasket || 1 x insert label || 1 x USB cable type A/B 1 m
- Range Of Product
- Harmony HMIZ
