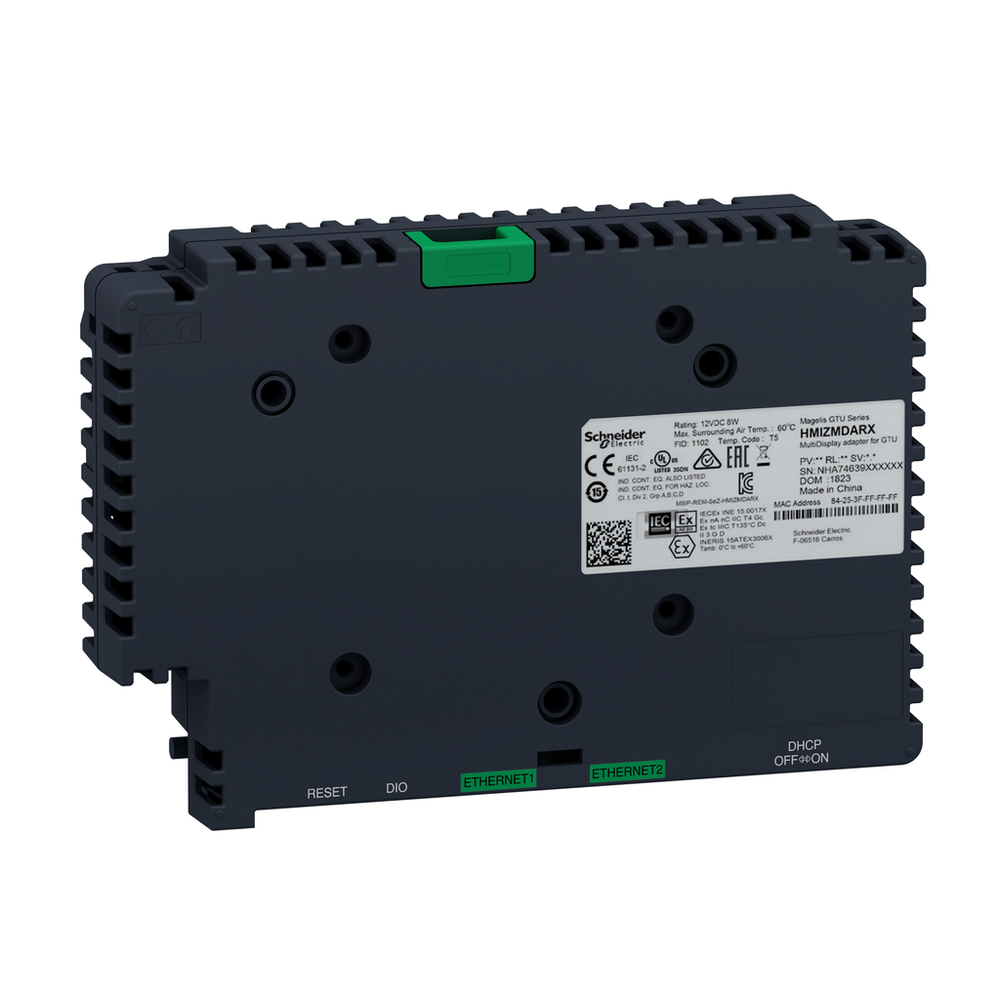

Schneider Electric HMIZMDARX
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Multi Display Adapter for Harmony GTU
Schneider Electric HMIZMDARX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accessory / Separate Part Destination
- Harmony GTU display
- Depth
- 35 mm
- Height
- 131 mm
- Input Voltage
- 12 V DC module supply || 24 V DC
- Integrated Connection Type
- 1 DIO terminal block 3 inputs + 1 output || 2 Ethernet TCP/IP RJ45 jack
- Local Signalling
- LED green, steady operating status (RUN) || LED green, faded stand-by || LED green/orange, alternate program mode || LED orange, flashing establishing communication connection || LED red, steady power ON || LED green, orange and red, alternate ERROR (fault)
- Net Weight
- 0.8 kg
- Output Current
- 50 mA
- Output Voltage
- 24 V
- Output Voltage Type
- DC
- Power Consumption In W
- 8 W
- Type Of Cooling
- natural
- [Us] Rated Supply Voltage
- 12 V DC module supply
- Width
- 188 mm
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -20-60 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
- Environmental Characteristic
- corrosive gas free || dustproof
- Operating Altitude
- 6561.68 ft (2000 m)
- Pollution Degree
- 2
- Product Certifications
- UL 508 || CSA C22-2 No 142 || CSA C22-2 No 213 || cULus HazLoc Class I Division 2 ANSI/ISA 12-12-01 || IEC-Ex || ATEX zone 2/22 || EAC || UKCA || UKEX
- Relative Humidity
- 10-90 % non-condensing
- Resistance To Fast Transients
- 1 kV IEC 61000-4-4 signal ports) || 2 kV IEC 61000-4-4 power ports)
- Shock Resistance
- 147 m/s²X, Y, Z directions for 3 times EN/IEC 61131-2
- Vibration Resistance
- 3.5 mm constant amplitude 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2 || 9.8 m/s² constant acceleration 9-150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Accessory / Separate Part Category
- adaptation accessory
- Accessory / Separate Part Type
- adaptor
- Product Compatibility
- Harmony GTU open || Harmony iPC industrial PCs
- Range Of Product
- Harmony GTU
