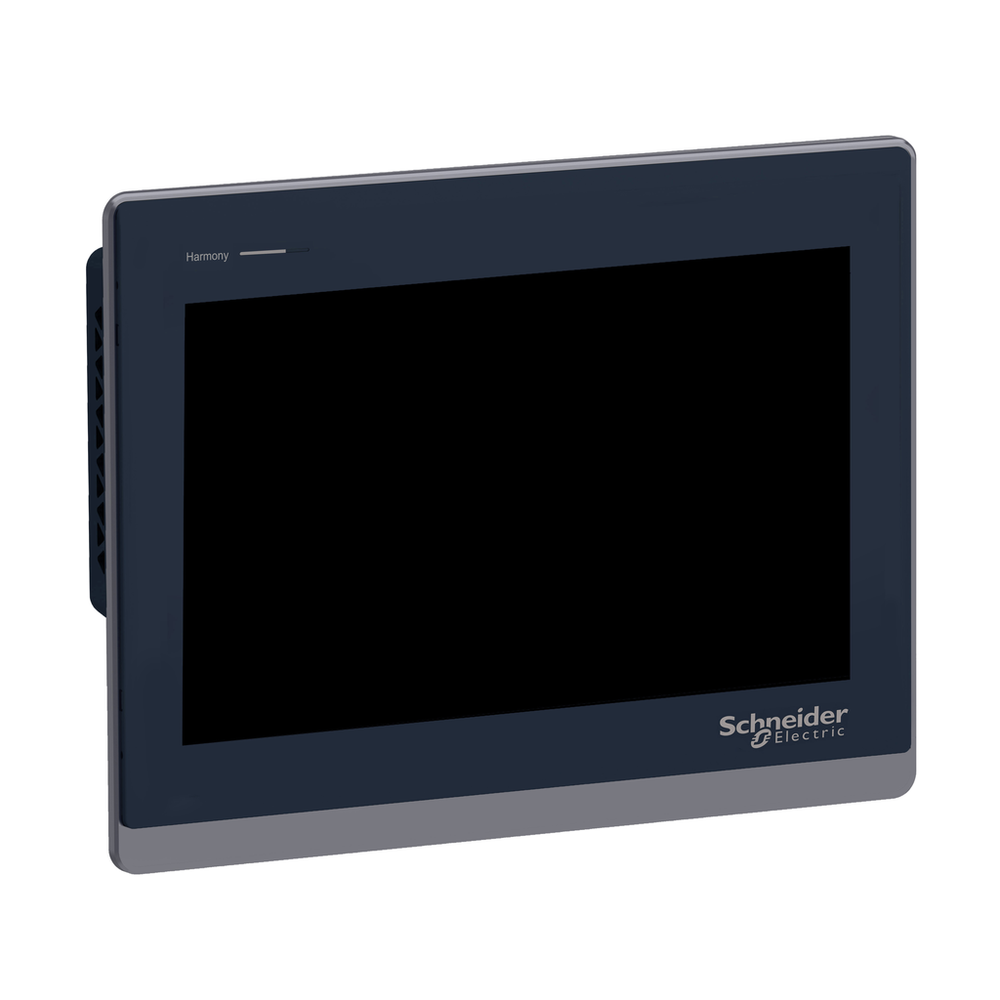

Schneider Electric HMISTW6500
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Basic Web HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 10.1 inch wide with 16 million colors and 1024 x 600 pixel resolution (SVGA). It is a ready-to-use agnostic HMI terminal with pre-installed HTML5 browser. It has a 800 MHz ARM Cortex-A8 CPU, 512 MB device memory, 512 MB user data memory, and 128 KB backup memory. This HMI STW6 supports 2x Ethernet port, 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 273mm (width) x 203mm (height) x 47mm (depth) and weighs 1.30Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).touch panel screen, Harmony ST6 , 10inch wide display, 2Ethernet, USB host and device, 24V DC
Schneider Electric HMISTW6500 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Backlight Lifespan
- 50000 hours white
- Brightness
- 16 levels
- Character Font
- ASCII || ASCII (European characters) || Katakana
- Cut-Out Dimensions
- 255 x 185 mm panel cut dimension
- Depth
- 47 mm
- Display Colour
- 16 million colours
- Display Resolution
- 1024 x 600 pixels WSVGA
- Display Size
- 10 inch
- Display Type
- colour TFT LCD
- Enclosure Material
- PC
- Fixing Mode
- by 4 screws 1.6...5 mm thick panel UL 61010-2-201 || by 4 screws EN 61131-2 || by 4 screws IEC 61000-6-2
- Front Material
- aluminium
- Height
- 203 mm
- Inrush Current
- 30 A
- Integrated Connection Type
- 1 USB 2.0 type Aback || 1 Ethernet - female RJ45bottom
- Local Signalling
- status LED green, steady offline || status LED green, steady operating || status LED green, flashing operating || status LED green, faded stand-by || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED red, flashing operating || status LED red, off power supply (OFF)
- Marking
- CE
- Memory Description
- 512 MB device memory || 512 MB backup memory || 128 kB user data memory
- Net Weight
- 1.3 kg
- Port Ethernet
- 10/100BASE
- Power Consumption In W
- 12.6 W
- Processor Frequency
- 800 MHz
- Realtime Clock
- built-in 0...50 °C || built-in 10...90 % RH
- Supply
- external supply
- Touch Panel
- single touch analogue resistive
- [Us] Rated Supply Voltage
- 24 V DC +/- 20 %)
- Width
- 273 mm
Environment
- Ambient Air Temperature For Operation
- 0-50 °C
- Ambient Air Temperature For Storage
- -20-60 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Electromagnetic Compatibility
- electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 1 kV (signal ports) || electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3 || electrostatic discharge immunity test - test level: 8 kV (air discharge)
- Immunity To Microbreaks
- 10 ms
- Ip Degree Of Protection
- IP20 IEC 61131-2 rear panel) || IP65 IEC 61131-2 front panel)
- Nema Degree Of Protection
- NEMA 4 front panel (indoor use) || NEMA 13 front panel (in enclosure)
- Operating Altitude
- 6561.68 ft (2000 m)
- Product Certifications
- CSA || CE || UKCA
- Relative Humidity
- 10-90 % non-condensing
- Shock Resistance
- 147 m/s² 11 ms X, Y, Z directions for 3 times)EN/IEC 61131-2
- Standards
- EN 61000-6-4 || EN 61000-6-2 || EN 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
- Vibration Resistance
- +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2 || 9.8 m/s² 9-150 Hz)
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1810005EN
- Environmental Disclosure
- ENVPEP1810005EN
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Processor Name
- ARM Cortex-A8
- Product Or Component Type
- touch panel screen
- Range Of Product
- Harmony ST6
- Software Designation
- web interface for operator
