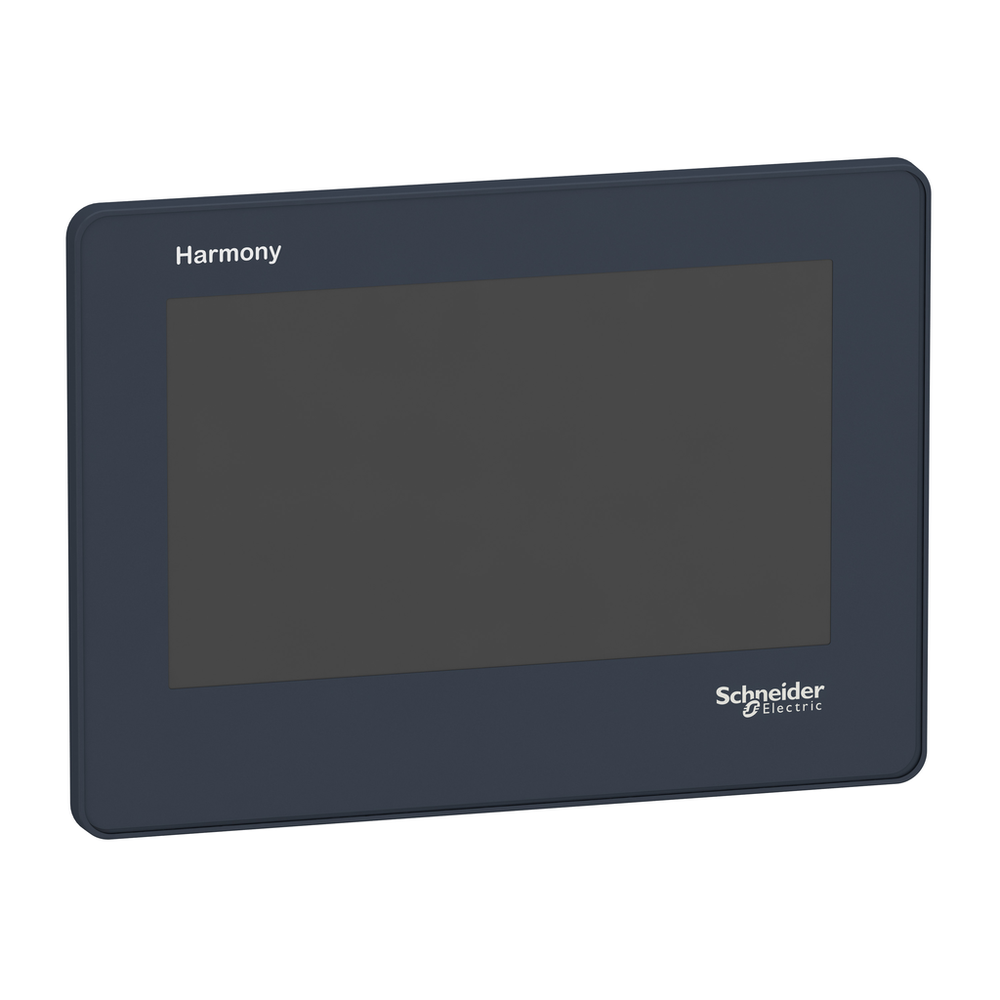

Schneider Electric HMISTO735
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Magelis STO small touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 4.3" color TFT LCD display with, 480 x 272 pixels and 26MB EPROM. It also has 1 host + 1 mini-B USB ports and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays color graphic pages. Its RS485 host port makes it ideal to supervise and control simple systems and machines.touch panel screen, Harmony STO & STU, 4.3inch wide, Ethernet
Schneider Electric HMISTO735 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Backlight Lifespan
- 50000 hours white
- Brightness
- 16 levels via touch panel
- Character Font
- ASCII (European characters) || Cyrillic || Taiwanese (traditional Chinese) || Chinese (simplified Chinese) || Japanese (ANK, Kanji) || Korean
- Cut-Out Dimensions
- 77.5 x 112.5 mm || 66 x 105 mm with mounting adaptor
- Display Colour
- 65536 colours
- Display Resolution
- 480 x 272 pixels
- Display Size
- 4.3 inch
- Display Type
- colour TFT LCD
- Downloadable Protocols
- Modbus TCP || Modbus || third party protocols
- Enclosure Material
- PPT
- Fixing Mode
- by 2 installation fasteners 1.5 to 6 mm thick panel
- Front Material
- plastic
- Integrated Connection Type
- 1 USB 2.0 type mini B || 1 USB 2.0 type A || 1 Ethernet TCP/IP - RJ45
- Memory Description
- back up of data 512 KB || application memory 26 MB
- Net Weight
- 0.22 kg
- Number Of Pages
- 8999
- Port Ethernet
- 10BASE-T/100BASE-TX
- Power Consumption In W
- 8.1 W
- Range Compatibility
- Omron || MitsubishI || Siemens || Allen-Bradley
- Realtime Clock
- with RTC-battery set optional
- Supply
- external source
- Touch Panel
- analogue
- [Us] Rated Supply Voltage
- 12...24 V DC - 10...20 %
Environment
- Ambient Air Temperature For Operation
- 0-50 °C
- Ambient Air Temperature For Storage
- -20-60 °C
- Electromagnetic Compatibility
- resistance to radiated electromagnetic fields - test level: 10 V/m (80 MHz...2.7 GHz) || resistance to electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to EN 61000-4-2 || resistance to electrostatic discharge - test level: 6 kV level 3 (direct contact) conforming to EN 61000-4-2
- Ip Degree Of Protection
- IP65f front panel) || IP20 rear panel)
- Nema Degree Of Protection
- NEMA 4X/13 front panel indoor use)
- Operating Altitude
- 6561.68 ft (2000 m)
- Product Certifications
- CE || C-tick || ATEX zone 2/22 || KCC || UL || cUL || UKCA
- Relative Humidity
- 10-90 % without condensation
- Shock Resistance
- 15 gn 11 msIEC 61131-2
- Standards
- UL 61010-2-201 || EN 61131-2 || EN 61000-6-2 || EN 61000-6-4 || CSA C22.2 No 213 || CSA C22.2 No 142 || UL 61010-1 || ANSI/ISA 12.12.01
- Vibration Resistance
- 1 gn 5-150 Hz) IEC 61131-2 || 3.5 mm constant amplitude 5-150 Hz) IEC 61131-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1511015EN
- Environmental Disclosure
- ENVPEP1511015EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Operating System
- Harmony
- Product Or Component Type
- touch panel screen
- Range Of Product
- Harmony STO & STU
- Software Designation
- EcoStruxure Operator Terminal Expert
