Description

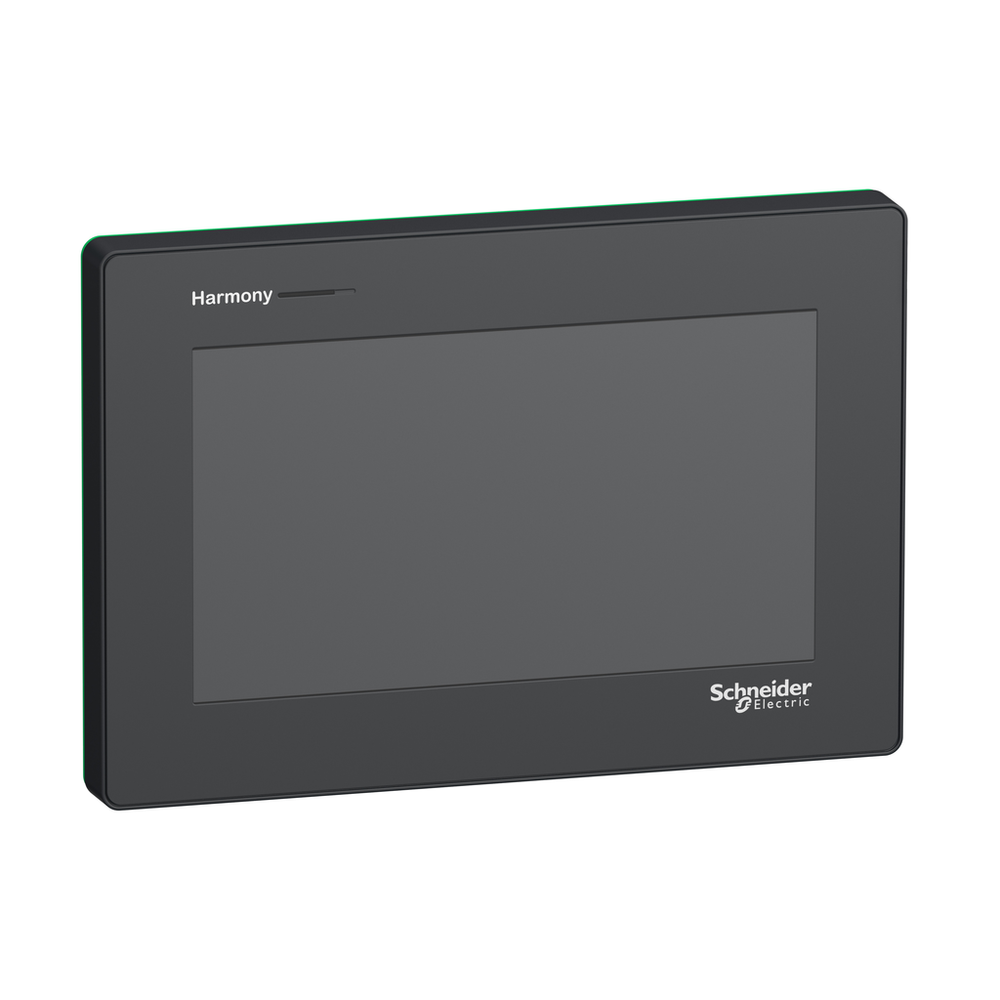

touch panel screen, Harmony ST6, 7inch wide display, colour TFT LCD
Schneider Electric HMISTM64 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Backlight Lifespan
- 20000 hours white
- Brightness
- 16 levels
- Character Font
- ASCII || ASCII (European characters) || Chinese (simplified Chinese) || Japanese (ANK, Kanji) || Katakana || Korean || Taiwanese (traditional Chinese)
- Cut-Out Dimensions
- Ø 22.5 mm
- Depth
- 33 mm
- Display Colour
- 16 million colours
- Display Resolution
- 800 x 480 pixels WVGA
- Display Size
- 7 inch
- Display Type
- colour TFT LCD
- Fixing Mode
- Ø 22 mm hole 1.5 to 6 mm thick panel UL 61010-2-201 || Ø 22 mm hole EN 61131-2 || Ø 22 mm hole IEC 61000-6-2
- Front Material
- plastic
- Height
- 137.2 mm
- Inrush Current
- 30 A
- Local Signalling
- status LED green, steady offline || status LED green, steady operating || status LED green, flashing operating || status LED green, faded stand-by || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED red, flashing operating || status LED red, off power supply (OFF)
- Marking
- CE
- Net Weight
- 0.49 kg
- Number Of Pages
- 200 application pages
- Power Consumption In W
- 3.6 W
- Realtime Clock
- built-in 0...50 °C || built-in 10...90 % RH
- Software Package
- EcoStruxure Operator Terminal Expert
- Touch Panel
- single touch analogue resistive
- [Us] Rated Supply Voltage
- 24 V DC +/- 20 %)
- Width
- 201.2 mm
Environment
- Ambient Air Temperature For Operation
- 0-50 °C
- Ambient Air Temperature For Storage
- -20-60 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Electromagnetic Compatibility
- electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 1 kV (signal ports) || electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3 || electrostatic discharge immunity test - test level: 8 kV (air discharge)
- Immunity To Microbreaks
- 2 ms
- Ip Degree Of Protection
- IP65 IEC 61131-2 front panel)
- Nema Degree Of Protection
- NEMA 4 front panel (indoor use) || NEMA 13 front panel (in enclosure)
- Operating Altitude
- 6561.68 ft (2000 m)
- Product Certifications
- CE || UKCA || cULus || RCM || KC || cULus Class 1 Division 2 || DNV || ABS || RINA || BV
- Relative Humidity
- 10-90 % non-condensing
- Shock Resistance
- 147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))EN/IEC 61131-2
- Standards
- EN 61000-6-4 || EN 61000-6-2 || EN 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || CSA C22.2 No 213
- Vibration Resistance
- +/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2 || 9.8 m/s² 9-150 Hz)
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2007003EN
- Environmental Disclosure
- ENVPEP2007003EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- touch panel screen
- Range Of Product
- Harmony ST6
