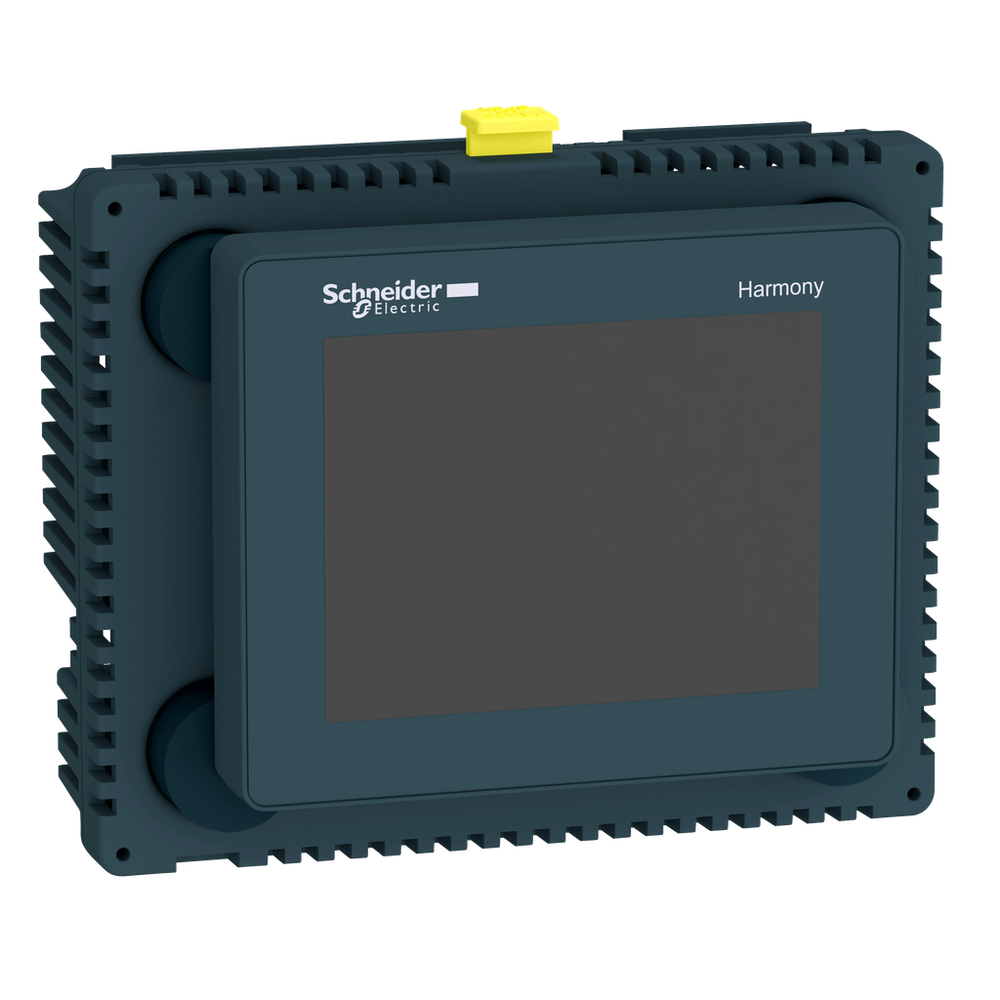

Schneider Electric HMISCU6B5

Complementary

• Absolute Accuracy Error
  • +/- 0.1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode) || 1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode) || +/- 5 % of full scale cyclic ratio 10...90% fast output (PWM or PTO mode) || +/- 10 % of full scale cyclic ratio 20...80% fast output (PWM or PTO mode) || +/- 15 % of full scale cyclic ratio 30...70% fast output (PWM or PTO mode)
• Analogue Input Number
  • 2 analog input || 2 RTDs
• Analogue Input Range
  • 0...20 mA/4...20 mA 12 bits 250 Ohm +/- 1 %) || -10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm
• Analogue Input Type
  • RTD - 200...600 °C 16 bitsPt 100/Pt 1000 || RTD - 50...200 °C 16 bitsNi 100/Ni 1000 || RTD - 200...760 °C 16 bits thermocouple J) || RTD - 240...1370 °C 16 bits thermocouple K) || RTD 0...1600 °C 16 bits thermocouple R) || RTD 200...1800 °C 16 bits thermocouple B) || RTD 0...1600 °C 16 bits thermocouple S) || RTD - 200...400 °C 16 bits thermocouple T) || RTD - 200...900 °C 16 bits thermocouple E) || RTD - 200...1300 °C 16 bits thermocouple N)
• Analogue Output Number
  • 2 resistive load 12 bits + sign
• Analogue Output Range
  • 0...20 mA/4...20 mA > 300 Ohm)open-circuit || -10...10 V/0...10 V > 2 kOhm)short-circuit
• Backlight Lifespan
  • 50000 hours 65000 colours
• Brightness
  • 16 levels via touch panel
• Character Font
  • Chinese (simplified Chinese) || ASCII || Taiwanese (traditional Chinese) || Korean || Japanese (ANK, Kanji)
• Configurable Filtering Time
  • 0 ms no filter none) || 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)) || 3...12 ms integrator none/run/stop)
• Connection Pitch
  • 3.5 mm
• Depth
  • 102 mm
• Discrete Input Current
  • 7.83 mA fast input || 5 mA digital
• Discrete Input Number
  • 2 fast input (normal mode) IEC 61131-2 Type 1 || 6 digital input IEC 61131-2 Type 1
• Discrete Input Voltage
  • 24 V DC sink or source (positive/negative)
• Discrete Output Current
  • 2 A 4 A)5 ms opening contact digital output || 2 A 4 A)2 ms closing contact digital output || 300 mA2 ms fast output (normal mode) || 50 mA2 ms fast output (PWM or PTO mode)
• Discrete Output Number
  • 2 fast output (normal mode) source || 6 digital output source
• Discrete Output Voltage
  • 24 V DC 19.2...28.8 V)transistor || 24 V DC 5...30 V)relay || 220 V AC 100...250 V)relay
• Display Resolution
  • 320 x 240 pixels QVGA
• Downloadable Protocols
  • Modbus TCP/IP || CANopen || Modbus
• Electromagnetic Compatibility
  • electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4 || surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5 || surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5 || surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5 || surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5 || conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 || conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011 || radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011
• Enclosure Material
  • PC/PBT
• Fixing Mode
  • by 1 nut Ø 22 mm 1...6 mm thick panel
• Height
  • 74.95 mm
• Immunity To Microbreaks
  • 10 ms
• Input Impedance
  • 2.81 kOhm || 4.7 kOhm
• Input/Output Number
  • 2 fast input FI0...FI1 || 2 fast output FQ0...FQ1 || 6 digital input DI0...DI5 || 6 digital output DQ0...DQ5
• Inrush Current
  • 30 A
• Insulation Resistance
  • > 10 MOhm between the I/O and internal logic || > 10 MOhm between power supply and earth
• Integrated Connection Type
  • 1 serial link - RJ45 - RS232/RS485 <= 115.2 kbits/s) || 1 Ethernet TCP/IP - RJ45 || 1 USB 2.0 type mini B || 1 USB 2.0 type A || CANopen master bus - SUB-D 9
• Isolation Between Channels
  • none
• Isolation Between Channels And Internal Logic
  • 500 V DC
• Local Signalling
  • no indicator
• Maximum Cable Distance Between Devices
  • shielded cable <10 m fast input || shielded cable <100 m digital input || unshielded cable <50 m digital input
• Maximum Input Frequency
  • 100 kHz fast input (encoder mode) A/B || 100 kHz fast input single phase || 100 kHz fast input pulse/direction
• Maximum Output Frequency
  • 100 kHz fast output (PTO mode) || 1 kHz fast output (PWM mode)
• Memory Description
  • flash NAND, 128 MB || internal data storage FRAM, 128 kB || application run DRAM, 128 MB
• Net Weight
  • 0.551 kg
• Number Of Common Point
  • 1 fast input (HSC mode) || 1 digital input
• Number Of Pages
  • limited by internal memory capacity
• Operating System
  • Harmony
• Overvoltage Protection
  • with
• Power Consumption In W
  • 15 W
• Processor Frequency
  • 333 MHz
• Processor Name
  • CPU RISC
• Realtime Clock
  • built-in
• Sensor Power Supply
  • 15-28.8 V DC >= 15 V >= 5 mA <= 5 V <= 1.5 mA || 15-28.8 V DC >= 15 V >= 2.5 mA <= 5 V <= 1 mA
• Shock Resistance
  • 147 m/s² 11 ms on DIN rail)IEC 60068-2-27 || 294 m/s² 6 ms on panel mounting)IEC 60068-2-27
• Software Designation
  • SoMachine
• Supply
  • external source
• [Us] Rated Supply Voltage
  • 24 V 20.4-28.8 V)DC
• Vibration Resistance
  • +/- 3.5 mm 5-9 Hz) IEC 60068-2-6 || 1 gn 9-150 Hz) IEC 60068-2-6
• View Angle Horiz X Vert
  • 60° left || 60° right || 40° top || 60° bottom
• Width
  • 128 mm

Environment

• Ambient Air Temperature For Operation
  • 0-50 °C
• Ambient Air Temperature For Storage
  • -20-60 °C
• Environmental Characteristic
  • corrosive gas free
• Ip Degree Of Protection
  • IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
• Marking
  • CE
• Maximum Pressure
  • 800...1114 hPa
• Nema Degree Of Protection
  • NEMA 4X front panel
• Operating Altitude
  • <= 6561.68 ft (2000 m)
• Pollution Degree
  • 2 IEC 60664
• Product Certifications
  • cULus CSA 22-2 No 142 || cUL 1604 Class 1 Division 2 || C-tick || GOST || KCC || cULus 508 || UKCA || UKEX
• Relative Humidity
  • 5-85 % without condensation
• Standards
  • CSA C22.2 No 213 Class I Division 2 || EN 61131-2 || IEC 61000-6-2 || ANSI/ISA 12-12-01 || UL 508 || FCC Class A
• Storage Altitude
  • 0-10000 m

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1405010EN
• Environmental Disclosure
  • ENVPEP1405010EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Upgradeability
  • Upgradeable through digital modules and upgraded components
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Device Presentation
  • complete product
• Display Size
  • 3.5 inch
• Display Type
  • backlit LED colour TFT LCD
• Product Or Component Type
  • small touch HMI controller
• Range Of Product
  • Harmony SCU
• Touch Panel
  • analogue
