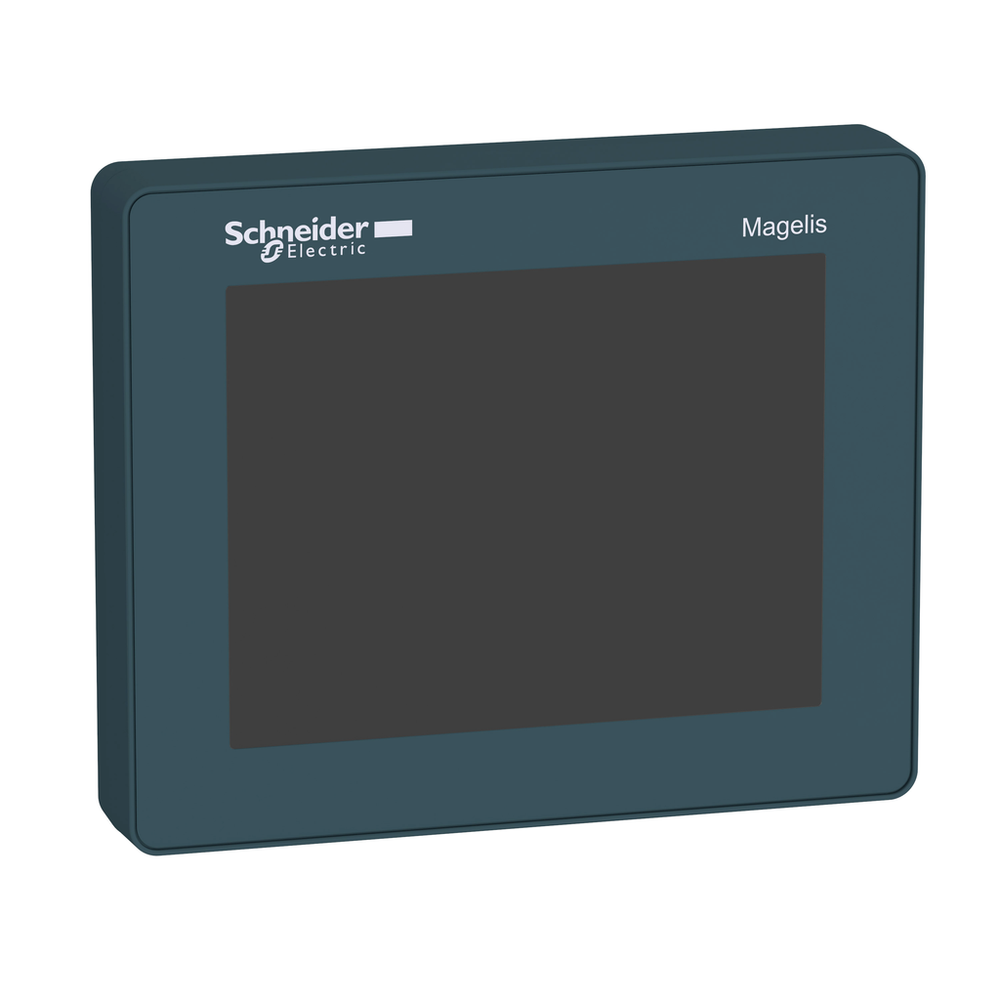

Schneider Electric HMIS65
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Harmony SCU range, an offer of HMI controllers from 3.5 to 5.7inch colour screens. The HMI small touchscreen features 3.5inch QVGA backlit LED colour TFT LCD display and supports 320 x 240 pixels resolution. It supports Korean, Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII and Taiwanese (traditional Chinese) character fonts. It supports 65536 colours with 50000 hours of backlight lifespan. The analogue touch panel with 16 levels brightness provides four viewing angles 60° left, 60° right, 40° top, 60° bottom in horizontal x vertical. Its dimensions are 97.6mm (width) x 80mm (depth) and weighs 0.53kg. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. Designed for small machines and simple processes control, its state-of-the-art display provides clear readability. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with EcoStruxure™ Machine Expert. It offers functionality for control of small machines and simple processes, while saving up to 30% in installation and ownership costs.Small touchscreen display HMI, Harmony SCU, 3in5 front module Backlight LED Color TFT LCD
Schneider Electric HMIS65 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Backlight Lifespan
- 50000 hours 65536 colours
- Brightness
- 16 levels via touch panel
- Character Font
- Korean || Chinese (simplified Chinese) || Japanese (ANK, Kanji) || ASCII || Taiwanese (traditional Chinese)
- Depth
- 80 mm
- Display Type
- backlit LED colour TFT LCD
- Net Weight
- 0.53 kg
- Touch Panel
- analogue
- View Angle Horiz X Vert
- 60° left || 60° right || 40° top || 60° bottom
- Width
- 97.6 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Product Certifications
- UKCA || UKEX
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2101003EN
- Environmental Disclosure
- ENVPEP2101003EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Upgradeability
- Upgradeable through digital modules and upgraded components
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Display Size
- 3.5 inch
- Pixel Resolution
- 320 x 240 pixels QVGA
- Product Or Component Type
- small touchscreen display HMI
- Range Of Product
- Harmony SCU
