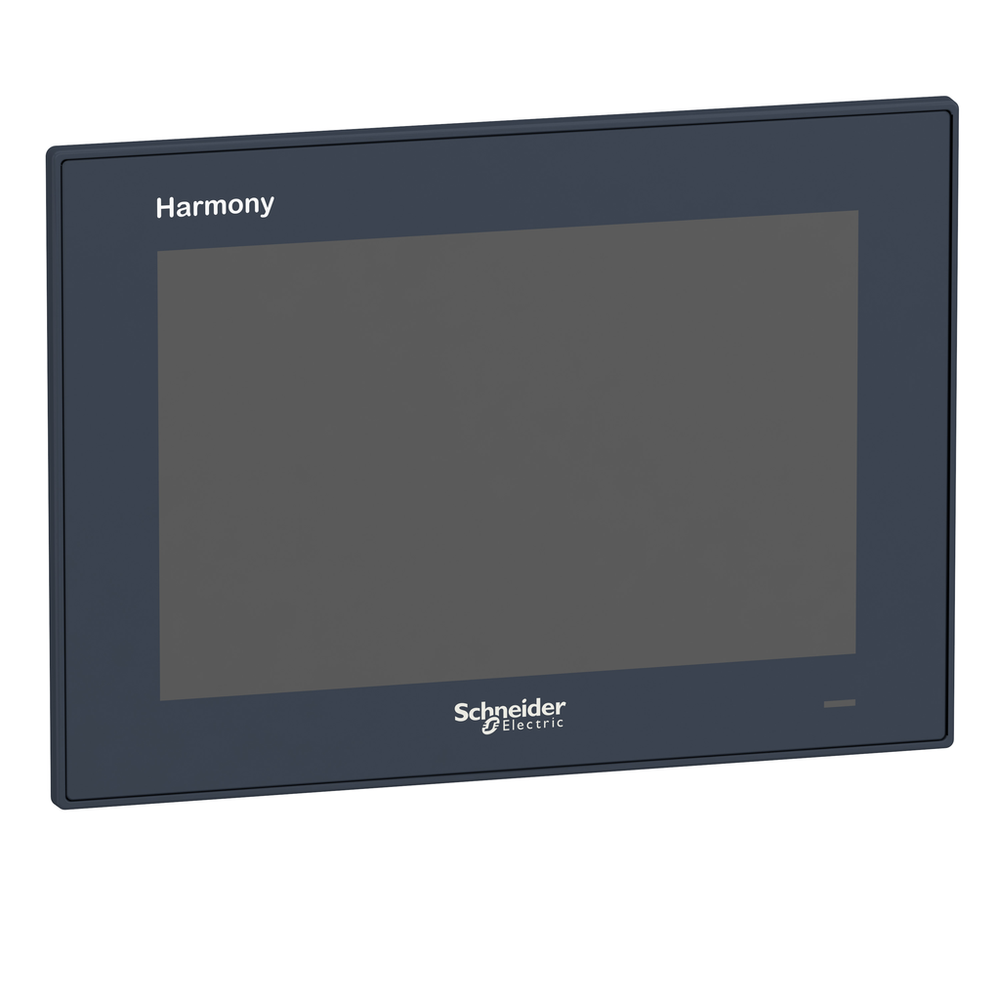

Schneider Electric HMIPSOH552D1801
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
multi touch screen, Harmony iPC, S panel PC optimized, HDD, 10inch wide display, DC, Windows 10
Schneider Electric HMIPSOH552D1801 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Aspect Ratio
- 16:9
- Backlight Lifespan
- 50000 hours
- Cut-Out Dimensions
- 274.6 (+/- 0.7) x 193.8 (+/- 0.4)
- Data Storage Equipment
- 500 GB extension back side enterprise hard disk
- Depth
- 85.5 mm
- Display Resolution
- 1280 x 800 pixels WSVGA
- Display Size
- 10" wide multi-touch
- Display Type
- LED || colour TFT LCD
- Function Available
- operate with water on screen
- Height
- 202.3 mm
- Line Rated Current
- 1.9 A
- Local Signalling
- buzzer || for on LED (green) || for stand-by LED (orange)
- Main Type
- Optimised
- Mechanical Robustness
- hardness anti-scratch 7H
- Memory Type
- 4 GB RAM DDR3 internal
- Net Weight
- 2.5 kg
- Number Of Points
- 5
- Number Of Slots
- 1 mini PCI Express full-size
- Terminal Type
- touchscreen display
- Touch Panel
- projected capacitive technology (PCT)
- Type Of Cooling
- passive || fanless
- [Us] Rated Supply Voltage
- 24 V DC +/- 20 % || 100...240 V AC with additional adaptor HMIYPSOMAC1
- View Angle Horizontal X Vertical
- 160 x 160°
- Watchdog Timer
- 1-255 ms
- Width
- 283.1 mm
Environment
- Ambient Air Temperature For Operation
- 0-55 °C SSD || 0-55 °C Cfast card || 0-45 °C HDD || 0-45 °C Mini PCIe
- Ambient Air Temperature For Storage
- -20-60 °C
- Directives
- 2004/108/EC - electromagnetic compatibility || 2006/95/EC - low voltage directive
- Ip Degree Of Protection
- front panel IP66
- Operating Altitude
- 2000
- Pollution Degree
- 2
- Product Certifications
- CE || EAC || AS/NZS || CCC || RCM || C-tick
- Relative Humidity
- 10-95 % non-condensing
- Standards
- CSA C22.2 No. 60950 || UL 60950 || IEC 61000-6-4 || CISPR 11 || IEC 60950 || FCC Part 15 class A || IEC 61000-6-2
- Vibration Resistance
- 1 gn 5-500 Hz)HDD || 2 gn 5-500 Hz)SSD || 2 gn 5-500 Hz)Cfast card
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
- Mercury Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Chipset Type
- Intel Atom SoC
- Display Colour
- 267000 colours
- Display Size
- 10.1 inch
- Free Slots
- 1 Internal SATA HDD/SSD || 1 CFast
- Luminance
- 300 cd/m²
- Operating System
- Windows 10 IoT Enterprise 64 bitmulti-language
- Pixel Resolution
- 4096 x 4096
- Processor Name
- Intel Atom E3827 dual core 1.75 GHz
- Product Or Component Type
- multi-touch screen
- Range Of Product
- Harmony iPC
- Software Package
- EcoStruxture secure connect advisor annual subscription cyber security license not included || EcoStruxure Operator Terminal Expert run time HMI license not included || EcoStruxure Machine SCADA Expert run time HMI/SCADA on configured offer only || EcoStruxure augmented operator advisor server augmented operator license not included
- Video Controller Type
- Intel HD Graphics
