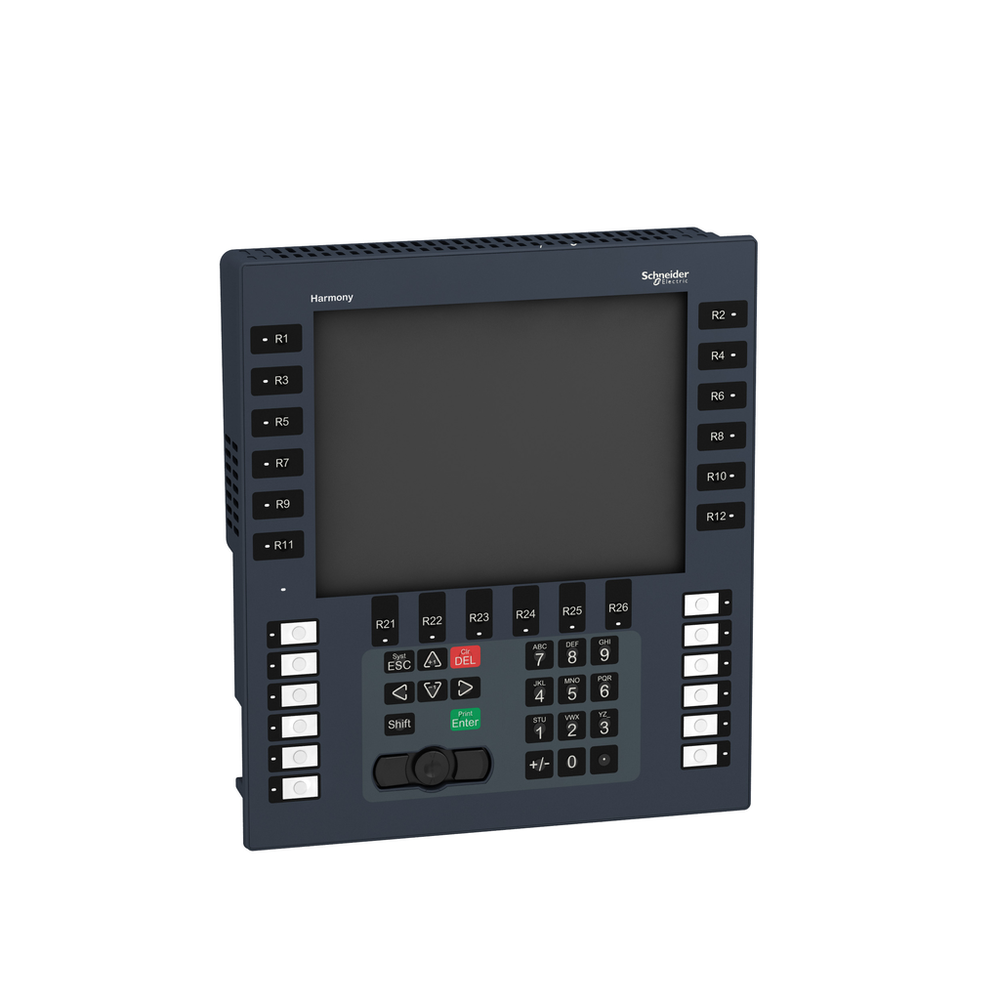

Schneider Electric HMIGK5310
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Magelis GK keypad-touchscreen operator interface (HMI) is supplied with 24V DC, has a 10.4" color TFT LCD display with, 640 x 480 pixels (VGA), a complete keypad and 128MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for complete control of an automation system in industry such as complex machines, CNC machines, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers 18 dynamic function keys, 12 static function keys, 12 alphanumeric keys, 8 service keys and an industrial mouse pointer. Its RS485 host port makes it ideal to supervise and control simple systems and machines.Keypad-touchscreen panel color - 640 x 480 pixels VGA -10.4" - TFT LCD
Schneider Electric HMIGK5310 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Backlight Lifespan
- 50000 hours
- Brightness
- 16 levels via touch panel
- Character Font
- Japanese (ANK, Kanji) || Korean || ASCII (European characters) || Taiwanese (traditional Chinese) || Chinese (simplified Chinese)
- Cut-Out Dimensions
- 285 (+/- 0.4) x 309 (+/- 0.4) mm
- Depth
- 76 mm
- Display Resolution
- 640 x 480 pixels VGA
- Display Type
- backlit colour TFT LCD
- Downloadable Protocols
- Telemecanique Modicon FIPWAY || Telemecanique Modicon Modbus Plus || Telemecanique Modicon Modbus TCP || Telemecanique Modicon Modbus || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automation Allen-Bradley third party protocols || Siemens Simatic third party protocols || Telemecanique Modicon Uni-TE
- Enclosure Material
- PPT
- Fixing Mode
- by 12 spring clips
- Front Material
- aluminium alloy
- Height
- 332 mm
- Inrush Current
- 30 A
- Integrated Connection Type
- <= 187.5 kbit/s RJ45, RS485 COM2 serial link Siemens MPI (187.5 kbits/s) || USB 2.0 type A master Modicon M340 terminal port communication || <= 115.2 kbits/s male SUB-D 9, RS232C COM1 serial link || removable screw terminal block power supply || RJ45 Ethernet TCP/IP || USB 2.0 type mini B
- Local Signalling
- for normal operation or backlighting faulty 1 LED (green or orange)
- Marking
- CE
- Memory Description
- 512 KB SRAM back up of data lithium battery || 128 MB flash EPROM application memory
- Memory Type
- up to 32 GB SD card RAM || up to 32 GB SDHC card RAM
- Mounting Mode
- flush mounting
- Net Weight
- 3.3 kg
- Number Of Alphanumeric Keys
- 12
- Number Of Dynamic Function Keys Symb
- 18 with LED
- Number Of Pages
- limited by internal memory capacity
- Number Of Service Keys
- 8
- Number Of Static Function Keys
- 12 with LED and labels
- Port Ethernet
- 10BASE-T/100BASE-TX
- Power Consumption In W
- 11.4 W
- Processor Frequency
- 333 MHz
- Realtime Clock
- built-in
- Software Designation
- Vijeo Designer
- Software Type
- configuration software
- Supply Voltage Limits
- 19.2-28.8 V
- Touch Panel
- analogue
- Touch Sensitive Zone
- 1024 x 1024
- [Us] Rated Supply Voltage
- 24 V DC
- Width
- 296 mm
Environment
- Ambient Air Temperature For Operation
- 0-55 °C
- Ambient Air Temperature For Storage
- -20-60 °C
- Electromagnetic Compatibility
- resistance to electrostatic discharge - test level: 4 kV level 3 conforming to IEC 61000-4-2 || resistance to radiated electromagnetic fields - test level: 10 V/m conforming to IEC 61000-4-3 || resistance to fast transient - test level: 2 kV level 3 conforming to IEC 61000-4-4
- Immunity To Microbreaks
- 10 ms
- Ip Degree Of Protection
- IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
- Nema Degree Of Protection
- NEMA 4X front panel (indoor use)
- Operating Altitude
- < 6561.68 ft (2000 m)
- Product Certifications
- cULus || EAC || UL Class 1 Division 2 T5 || KC || UL Class 1 Division 2 T4A || RCM || CSA Class 1 Division 2 T4A || CSA Class 1 Division 2 T5 || UKCA
- Relative Humidity
- 10-90 % without condensation
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Standards
- IEC 61000-6-2 || IEC 61000-6-4 || CSA C22.2 No 213 || UL 61010-2-201 || ANSI/ISA 12.12.01 || IEC 61131-2
- Vibration Resistance
- 1 gn 9-150 Hz)IEC 60068-2-6 || 3.5 mm 5-9 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Display Colour
- 65536 colours
- Display Size
- 10.4 inch
- Operating System
- Harmony
- Processor Name
- CPU RISC
- Product Or Component Type
- touchscreen panel with keypad
- Range Of Product
- Harmony GK
- Supply
- external source
