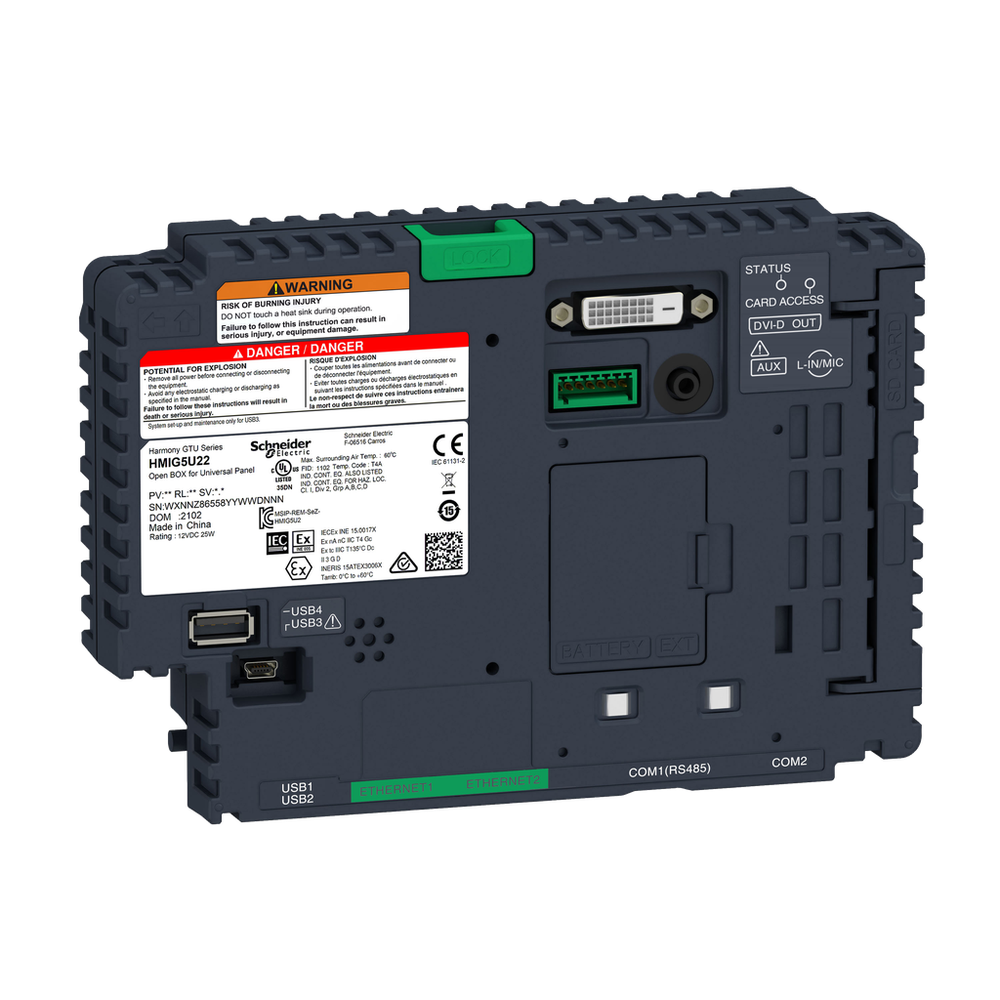

Schneider Electric HMIG5U22
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Pro-face SP5000 range, an offer of High performance IoT-ready modular HMI panels from 7 inch to 19 inch (Width) screen. The open box features Intel X86 1.33GHz processor and 32GB CFast card data storage, suits for universal panel. It is designed with backup memory of NVRAM 512kB and internal memory of RAM 4GB. This open box supports Windows 10 IoT Enterprise 2019 LTSC 32bit operating system. It is equipped with 10BASE-T/100BASE-TX/1000BASE-T Ethernet port. Communication port protocols are Modbus, Modbus TCP/IP and Uni-Telway. Its dimensions are 188mm (width) x 45mm (depth) x 131mm (height) and weighs 0.9kg. This product is not installed with HMI software. This product is certified by ATEX, IECEx, Ex CCC, CE, CULus, IEC, CUL, DNV-GL, RCM and EAC. It meets CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508, Class I division 2 CSA C22.2 No 213 and IEC 61132-2 standards. As a flagship model, SP5000 series, "Smart Portal", is available. SP5000 series offers unprecedented solutions for utilization of increasingly sophisticated information.base unit, Harmony GTU, Open BOX Windows 10, Universal Panel, with HMI software installed
Schneider Electric HMIG5U22 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Port Protocol
- Modbus || Modbus TCP/IP || Uni-Telway
- Data Storage Equipment
- 32 GB CFast card
- Depth
- 45 mm
- Height
- 131 mm
- Integrated Connection Type
- Ethernet TCP/IP 2 RJ45 || COM1 serial link RJ45 RS485 2400...115200 bps || COM2 serial link SUB-D 9 RS232C/RS422/RS485 2400...115200 bps || auxiliary port terminal block || USB 2.0 port mini B USB || DVI-D video port DVI-D || microphone mini-jack || USB 2.0 port 3 USB type A
- Local Signalling
- , multi-colour LEDstatus
- Memory Description
- 512 KB NVRAM backup memory || 4 GB RAM internal
- Net Weight
- 0.9 kg
- Number Of Slots
- 1 slot(s) for SD card || 2 slot(s) for Cfast card
- Operating System
- Windows 10 IoT Enterprise 32bit
- Port Ethernet
- 10BASE-T/100BASE-TX/1000BASE-T
- Processor Name
- Intel X86 1.33 GHz
- Realtime Clock
- built-in
- Software Package
- Vijeo Designer run time || EcoStruxure Operator Terminal Expert run time || Internet Explorer || .NET framework 4.0 || multimedia player
- Type Of Cooling
- natural convection
- Width
- 188 mm
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -20-60 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2
- Operating Altitude
- 2000
- Pollution Degree
- 2 EN 61131-2 Ed.3
- Product Certifications
- CE || cULus || ATEX || IEC-Ex || RCM || DNV-GL || KC || cUL || EAC || UKCA || UKEX
- Relative Humidity
- 10-90 % non-condensing
- Shock Resistance
- 147 m/s²EN/IEC 61131-2
- Standards
- CSA C22.2 No 142 || ANSI/ISA 12-12-01 || UL 508 || class I division 2 CSA C22.2 No 213 || IEC 61132-2
- Vibration Resistance
- 3.5 mm constant amplitude 5-9 Hz) EN/IEC 61131-2 || 9.8 m/s² 9-150 Hz) EN/IEC 61131-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403023EN
- Environmental Disclosure
- ENVPEP1403023EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- Open Box
- Product Or Component Type
- base unit
- Range Compatibility
- Harmony GTU
- Range Of Product
- Harmony GTU
- [Us] Rated Supply Voltage
- 12...24 V DC power supply
