Description

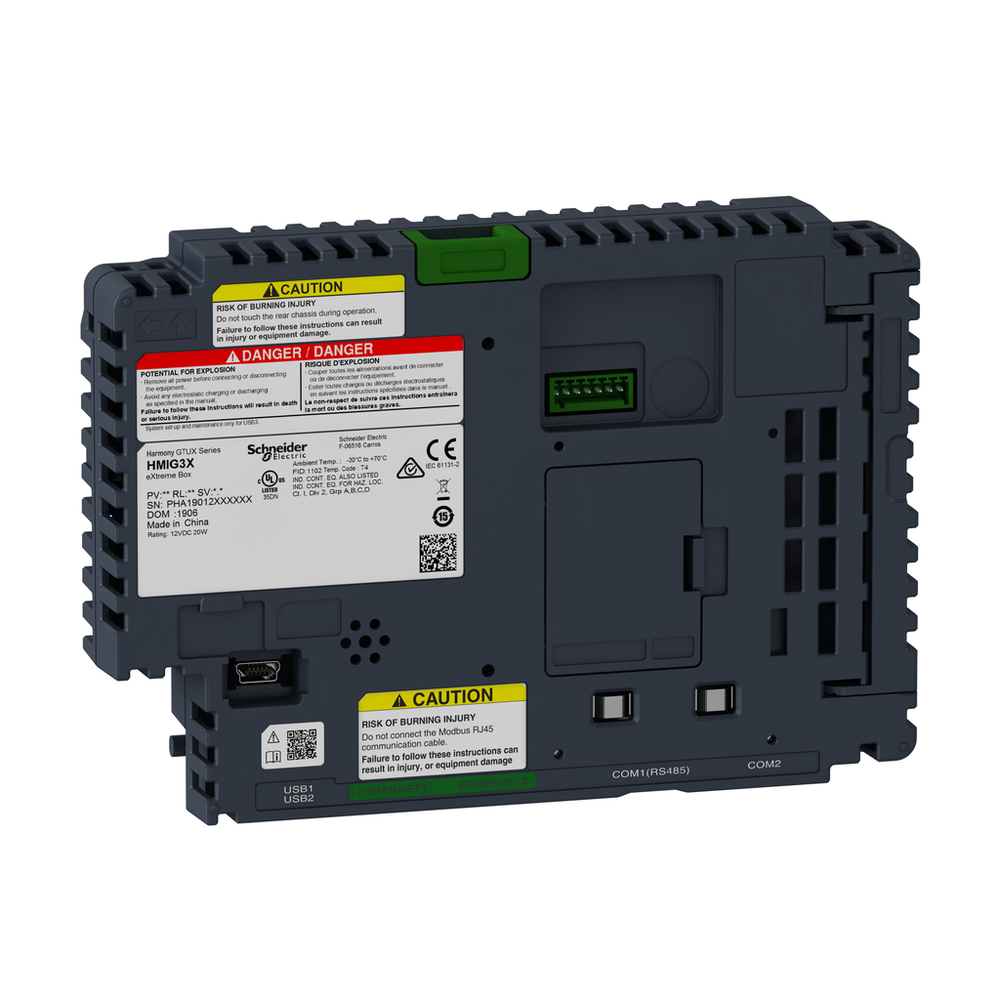

Base unit, Harmony GTUX, Serie eXtreme Box full Coated
Schneider Electric HMIG3XFH is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Port Protocol
- Modbus TCP/IP || Modbus serial || Uni-Telway
- Data Storage Equipment
- 1 GB SD card
- Depth
- 45 mm
- Height
- 131 mm
- Integrated Connection Type
- Ethernet TCP/IP 2 RJ45 10 BASE-T/100 BASE-TX/1000 BASE-T || COM1 serial link RJ45 RS485 110...115200 bit/s || COM1 serial link RJ45 RS485 187.5 kbit/s || COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s || COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/s || auxiliary port terminal block || expansion unit fieldbus card || USB 2.0 port 2 USB type A || USB 2.0 port mini B USB
- Memory Description
- 256 MB RAM internal 2 x 13 mm board)
- Net Weight
- 0.9 kg
- Number Of Slots
- 2 slot(s) for SD card
- Operating System
- Harmony
- Processor Name
- CPU RISC 600 MHz
- Software Package
- Vijeo Designer run time || EcoStruxure Operator Terminal Expert
- Type Of Cooling
- natural convection
- Width
- 188 mm
Environment
- Ambient Air Temperature For Operation
- -30-70 °C EN 61131-2
- Ambient Air Temperature For Storage
- -30-70 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 level 3
- Environmental Characteristic
- 3C3
- Operating Altitude
- 6561.68 ft (2000 m)
- Pollution Degree
- 2 EN 61131-2 Ed.3
- Product Certifications
- CE || KC || RCM || EAC || ATEX zone 2/22 || IEC-Ex || UL || CSA || UKCA || UKEX
- Relative Humidity
- 10-90 % non-condensing
- Resistance To Electrostatic Discharge
- 6 kV contact discharge EN/IEC 61000-4-2 level 3 || 8 kV air discharge EN/IEC 61000-4-2 level 3
- Resistance To Fast Transients
- 1 kV IEC 61000-4-4 signal ports) || 2 kV IEC 61000-4-4 power ports)
- Shock Resistance
- 392 m/s² X, Y, Z directions for 3 times)EN/IEC 61131-2
- Standards
- UL 61010 || UL 121201 || CSA C22.2 No 213 || CSA C22.2 No 61010-1 || IEC 61132-2
- Vibration Resistance
- 7 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2 || 19.6 m/s² 9-150 Hz) EN/IEC 61131-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403023EN
- Environmental Disclosure
- ENVPEP1403023EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- eXtreme Box full coated
- Power Consumption In W
- 20.0 W
- Product Or Component Type
- base unit
- Range Of Product
- Harmony GTUX
- [Us] Rated Supply Voltage
- 12 V DC power supply
