Schneider Electric HMIG3U
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

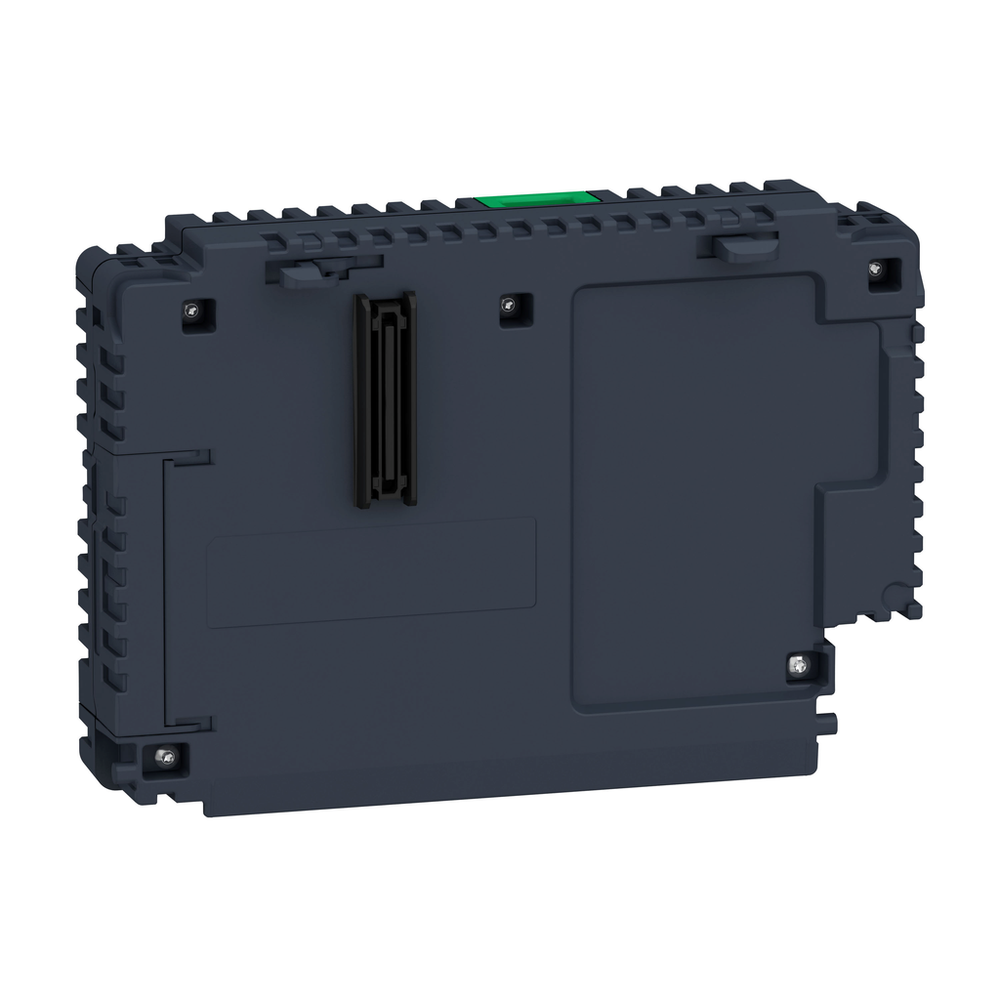

This Magelis GTU premium box module has 256MB of RAM, a RISC CPU, 2 SD card slots, including a 1GB pre-installed card. It also has 2 host + 1 mini-B USB ports, 1 RS232C/RS422/RS485 port, 1 RS485 port and 1 Ethernet TCP/IP port. This universal premium box is designed for building advanced HMI systems together with Magellis universal GTU panels. It also offers a LED power indicator and a lock button to attach the box module and display. It has high performance RISC CPU for low latency display and automation. Its RS485 and Ethernet ports, ideal to supervise and control complex systems and machines.base unit, Harmony GTU, premium box, 1GB SD card
Schneider Electric HMIG3U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Port Protocol
- Modbus || Modbus TCP/IP || Uni-Telway
- Data Storage Equipment
- 1 GB SD card
- Depth
- 45 mm
- Height
- 131 mm
- Integrated Connection Type
- Ethernet TCP/IP 2 RJ45 || COM1 serial link RJ45 RS485 110...115200 bit/s || COM1 serial link RJ45 RS485 187.5 kbit/s || COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s || COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/s || auxiliary port terminal block || expansion unit fieldbus card || USB 2.0 port 2 USB type A || USB 2.0 port mini B USB
- Memory Description
- 256 MB RAM internal 2 x 13 mm board) || 512 KB NVRAM backup memory
- Net Weight
- 0.9 kg
- Operating System
- Harmony
- Port Ethernet
- 10BASE-T/100BASE-TX/1000BASE-T
- Processor Name
- CPU RISC 600 MHz
- Software Package
- Vijeo Designer run time
- Type Of Cooling
- natural convection
- Width
- 188 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -20-60 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2
- Operating Altitude
- 6561.68 ft (2000 m)
- Pollution Degree
- 2 EN 61131-2 Ed.3
- Product Certifications
- CE || cULus || ATEX || IEC-Ex || RCM || GL || KC || cUL || EAC || ABS || BV || CCS || DNV || LR || RINA || UKCA || UKEX
- Relative Humidity
- 10-90 % non-condensing
- Standards
- CSA C22.2 No 142 || ANSI/ISA 12-12-01 || UL 508 || class I division 2 CSA C22.2 No 213 || IEC 61132-2
- Vibration Resistance
- 3.5 mm constant amplitude 5-9 Hz) EN/IEC 61131-2 || 9.8 m/s² 9-150 Hz) EN/IEC 61131-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403023EN
- Environmental Disclosure
- ENVPEP1403023EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- Premium Box
- Product Or Component Type
- base unit
- Range Compatibility
- Harmony GTU
- Range Of Product
- Harmony GTU
- [Us] Rated Supply Voltage
- 12...24 V DC power supply
