Description

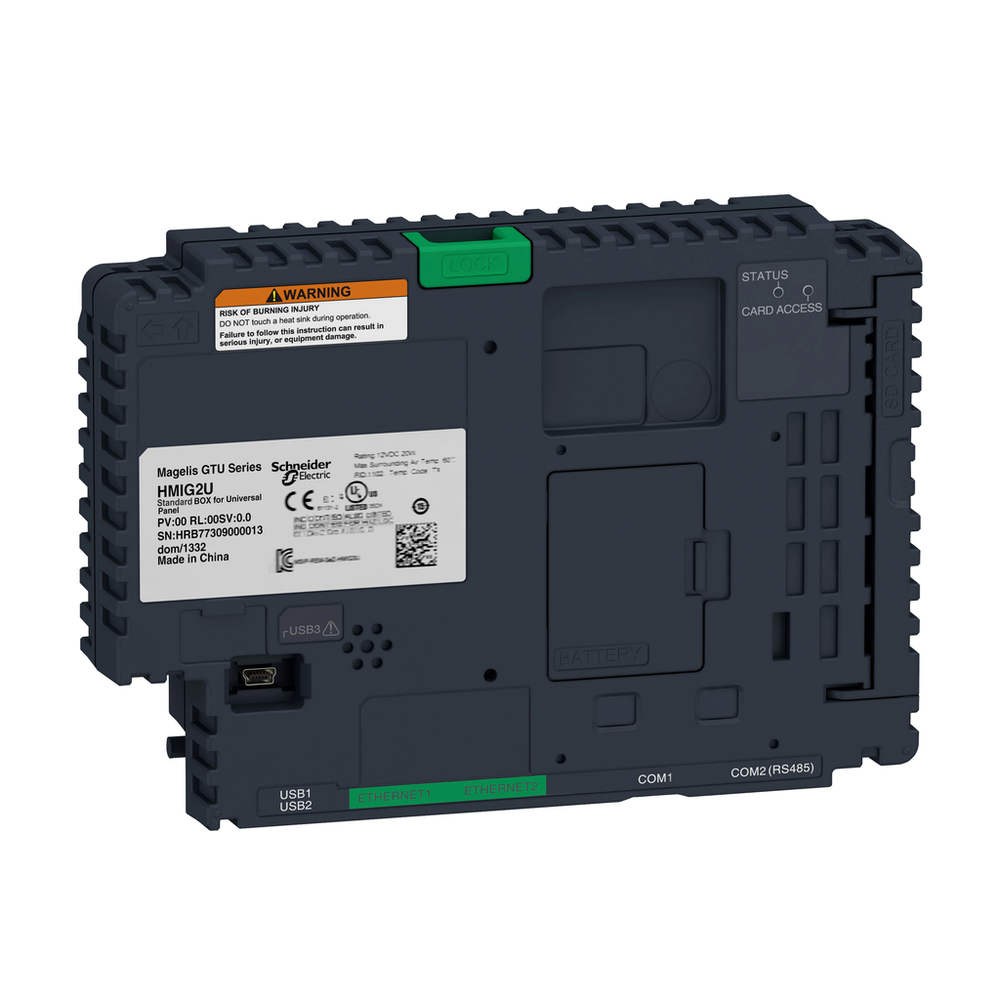

base unit, Harmony GTU, standard box, 1GB built-in flash memory
Schneider Electric HMIG2U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Port Protocol
- Modbus || Modbus TCP/IP || Uni-Telway
- Data Storage Equipment
- 1 GB built-in flash memory
- Depth
- 45 mm
- Height
- 131 mm
- Integrated Connection Type
- Ethernet TCP/IP 2 RJ45 || COM1 serial link SUB-D 9 RS232C 2400...115200 bps || COM2 serial link RJ45 RS485 187.5 kbps || USB 2.0 port 2 USB type A || USB 2.0 port mini B USB
- Local Signalling
- , green LED steady)operating status (RUN) || , green LED faded)stand-by || , orange LED flashing)software starting up || , red LED steady)power ON || , green, orange and red LED alternate)module error (ERR) || , red/orange LED alternate)boot status || , green/red LED alternate)connection status
- Memory Description
- 256 MB RAM internal 2 x 13 mm board) || 512 KB NVRAM backup memory
- Net Weight
- 0.9 kg
- Number Of Slots
- 1 slot(s) for SD card
- Operating System
- Harmony
- Port Ethernet
- 10BASE-T/100BASE-T
- Processor Name
- CPU RISC 600 MHz
- Realtime Clock
- built-in
- Software Package
- Vijeo Designer run time 8000 variables
- Type Of Cooling
- natural convection
- Width
- 188 mm
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -20-60 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2
- Environmental Characteristic
- corrosive gas free
- Operating Altitude
- 6561.68 ft (2000 m)
- Pollution Degree
- 2 EN 61131-2 Ed.3
- Product Certifications
- CE || cULus || ATEX || IEC-Ex || RCM || GL || KC || cUL || EAC || UKCA || UKEX
- Relative Humidity
- 10-90 % non-condensing
- Resistance To Electrostatic Discharge
- 6 kV contact discharge EN/IEC 61000-4-2 level 3 || 8 kV air discharge EN/IEC 61000-4-2 level 3
- Resistance To Fast Transients
- 1 kV IEC 61000-4-4 signal ports) || 2 kV IEC 61000-4-4 power ports)
- Shock Resistance
- 147 m/s² X, Y, Z directions for 3 times)EN/IEC 61131-2
- Standards
- CSA C22.2 No 142 || ANSI/ISA 12-12-01 || UL 508 || class I division 2 CSA C22.2 No 213 || IEC 61132-2
- Vibration Resistance
- 3.5 mm constant amplitude 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2 || 9.8 m/s² 9-150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403023EN
- Environmental Disclosure
- ENVPEP1403023EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- standard box
- Product Or Component Type
- base unit
- Range Compatibility
- Harmony GTU || Allen-Bradley || ABB || MitsubishI || Omron || Siemens
- Range Of Product
- Harmony GTU
- [Us] Rated Supply Voltage
- 12...24 V DC power supply
