Schneider Electric HMIFP6900WCD
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

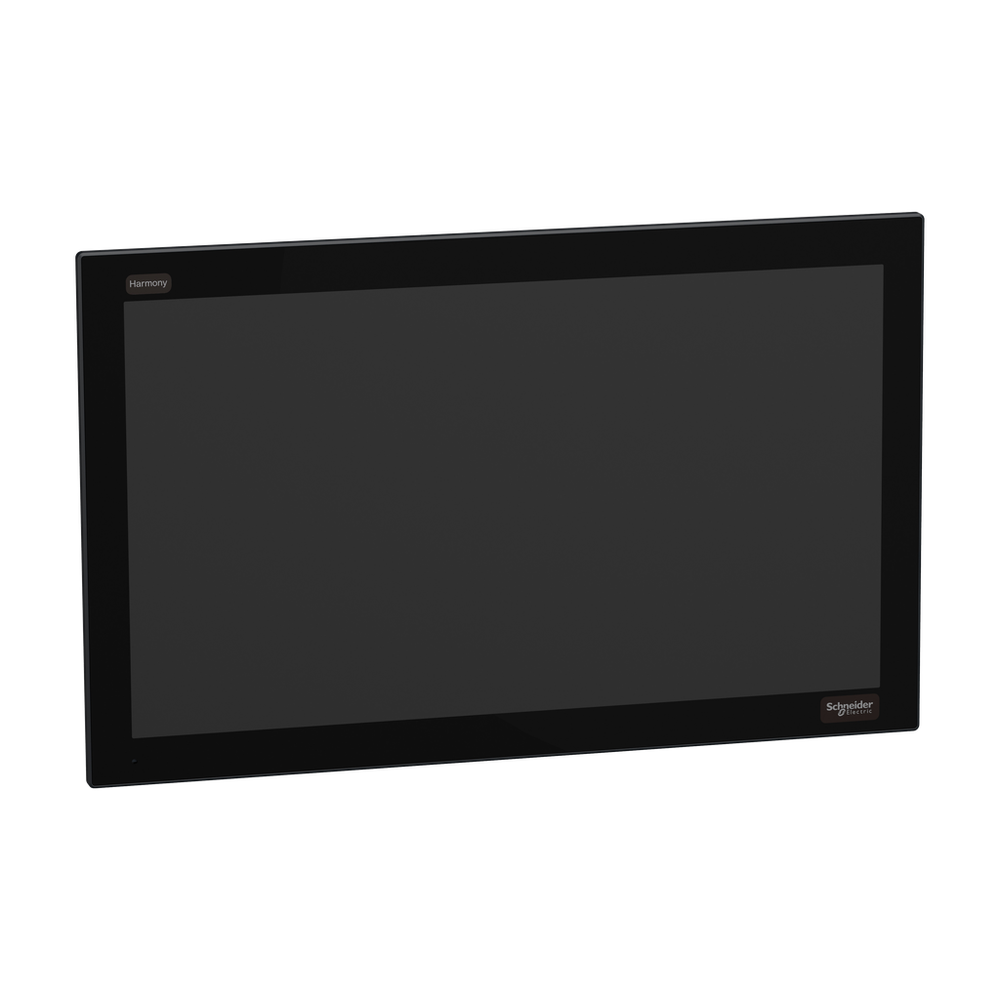

This industrial flat panel monitor belongs to the Schneider Electric's Harmony FP6 range. This 2 point multi-touch projected capacitive HMIFP6 display has a glass-top surface design with backlight service life of 50,000 hours. HMIFP6900WCD is a 21.5 inch wide screen of 16 million colors and 1,920 × 1,080 pixel resolution (FHD). Three touch mode configurations are available namely Standard mode, Glove mode, and Water detection mode. The modularity of the FP6 display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), and Type 12 and Type 13 degree of protection. The power consumption when this FP6 display is paired with Modular Boxes is 31.8Wmax. Its dimensions are 532.6mm (width) x 330.6mm (height) x 67.5mm (depth) and weighs 8.00Kg. Harmony FP6 industrial Flat Panel Monitor caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure. It complies with CE, RCM, UL 61010-2-201, UL 121201, and CSA C22.2 No. 61010-2-201, CSA C22.2 No. 213, IECEx/ATEX for use in Zone 2 gas/Zone 22 dust. This display when combined with any of the Harmony P6, Harmony iPCs, or third-party Boxes makes a Panel PC. It can be mounted on front enclosure or VESA 100 × 100 mount on the rear of Box PC. The stylish wide Harmony FP6 displays provide high visibility during operation featuring glass-top capacitive multi-touch panel with narrow frame and thin design.22w Industrial FPM, Harmony FP6, Full HD, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter, DVI, USB Type B, 24V DC
Schneider Electric HMIFP6900WCD is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Aspect Ratio
- 16:9
- Backlight Lifespan
- 50000 hours at 25 °C
- Cut-Out Dimensions
- 518.5 (+ 1/- 0) x 316.5 (+ 1/- 0) mm
- Depth
- 69.5 mm
- Device Mounting
- panel mounting || direct mounting VESA
- Display Colour
- 16 million colours
- Display Resolution
- 1920 x 1080 pixels full HD
- Display Size
- 21.5 inch
- Display Type
- LED || colour TFT LCD
- Height
- 330.6 mm
- Inrush Current
- 30 A
- Integrated Connection Type
- DVI-D video port || USB type B USB 2.0
- Net Weight
- 8.0 kg
- Pixel Resolution
- 1920 x 1080
- Power Consumption In W
- 31.8 W
- Touch Panel
- multi-touch projected capactive technology (PCT)
- Type Of Cooling
- natural
- [Us] Rated Supply Voltage
- 24 V DC
- Width
- 532.6 mm
Environment
- Ambient Air Temperature For Operation
- 0-55 °C
- Ambient Air Temperature For Storage
- -20-60 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test 6 kV contact discharge IEC 61000-4-2 level 3 || electrostatic discharge immunity test 8 kV air discharge IEC 61000-4-2 level 3 || electrical fast transient/burst immunity test 2 kV power ports IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV signal ports IEC 61000-4-4
- Ip Degree Of Protection
- IP66f || IP67f || Type 1 || Type 4X || Type 12 || Type 13
- Operating Altitude
- 6561.68 ft (2000 m)
- Pollution Degree
- 2
- Product Certifications
- RCM || KC || UKCA || DNV (except 22" wide display) || ATEX zone 2 || ATEX zone 22 dust || cULus Class 1 Division 2 || IECEx zone 2 (DC model, front USB cover must be locked with screw) || IECEx zone 22 (DC model, front USB cover must be locked with screw)
- Shock Resistance
- 147 m/s² IEC 61131-2 || 147 m/s² 3 shocks in each direction X, Y and Z
- Standards
- CE || FCC part 15 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
- Vibration Resistance
- 1 gn 5-9 Hz) - single amplitude - IEC 61131-2 || 1 gn 9-150 Hz) - fixed amplitude - IEC 61131-2 || 1 gn - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
Specifications
- Operating System
- Windows 10 version 1809)
- Product Or Component Type
- touch panel screen
- Range Of Product
- Harmony FP6
