Description

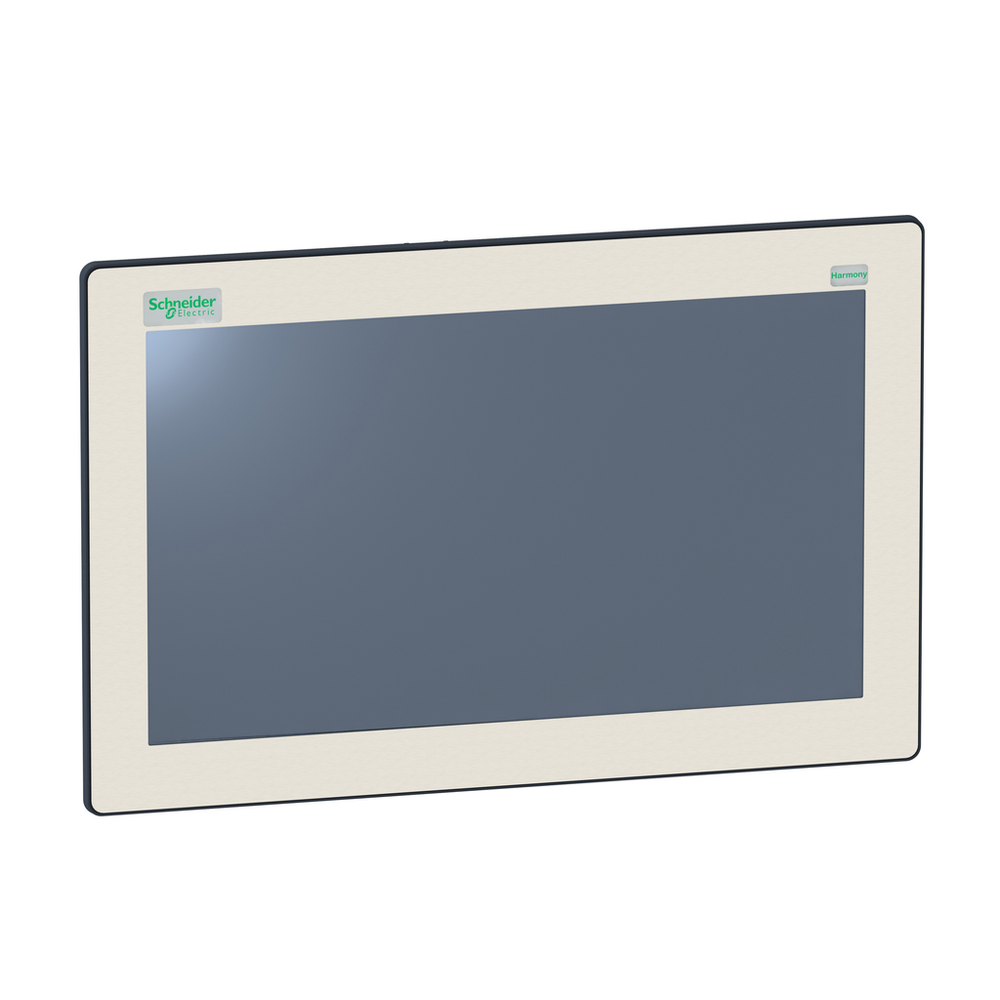

Harmony GTUX Series eXtreme Display 15.0-inch Wide, Outdoor use, Rugged, Coated
Schneider Electric HMIDT75X is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Aspect Ratio
- 4:3
- Cut-Out Dimensions
- 394 (+ 1/- 0) x 250 (+ 1/- 0) mm
- Depth
- 68 mm
- Display Colour
- 262144 colors
- Display Resolution
- 1366 x 768 pixels FWXGA
- Display Size
- 15.6 inch
- Display Type
- colour TFT LCD
- Height
- 264 mm
- Luminance
- 1000 cd/m²
- Net Weight
- 4.8 kg
- Pixel Resolution
- 1366 x 768
- Touch Panel
- single touch analogue resistive
- Touchscreen Resolution
- 1024 x 1024
- Type Of Cooling
- natural convection
- Width
- 408 mm
Environment
- Ambient Air Temperature For Operation
- -20-60 °C IEC 61131-2
- Ambient Air Temperature For Storage
- -20-60 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
- Environmental Characteristic
- corrosive gas free || UV resistant
- Ip Degree Of Protection
- IP66f || IP67f || front panel Type 4X
- Operating Altitude
- 6561.68 ft (2000 m)
- Pollution Degree
- 2
- Product Certifications
- KC || CE || RCM || EAC || ATEX zone 2/22 || IEC-Ex || UL || CSA || UKCA || UKEX
- Relative Humidity
- 10-90 % non-condensing
- Shock Resistance
- 392 m/s²IEC 61131-2
- Standards
- UL 61010 || UL 121201 || CSA C22.2 No 213 || CSA C22.2 No 61010-1 || IEC 61132-2
- Vibration Resistance
- 7 mm constant amplitude 5-9 Hz) IEC 61131-2 || 9.8 m/s² 9-150 Hz) IEC 61131-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1402016EN
- Environmental Disclosure
- ENVPEP1402016EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Inrush Current
- 30 A
- Power Consumption In W
- 12.5 W
- Product Or Component Type
- eXtreme touchscreen panel
- Range Of Product
- Harmony GTUX
- Supply Voltage Limits
- 10.8-28.8 V
- Terminal Type
- touchscreen display
- [Us] Rated Supply Voltage
- 12 V DC power supply
