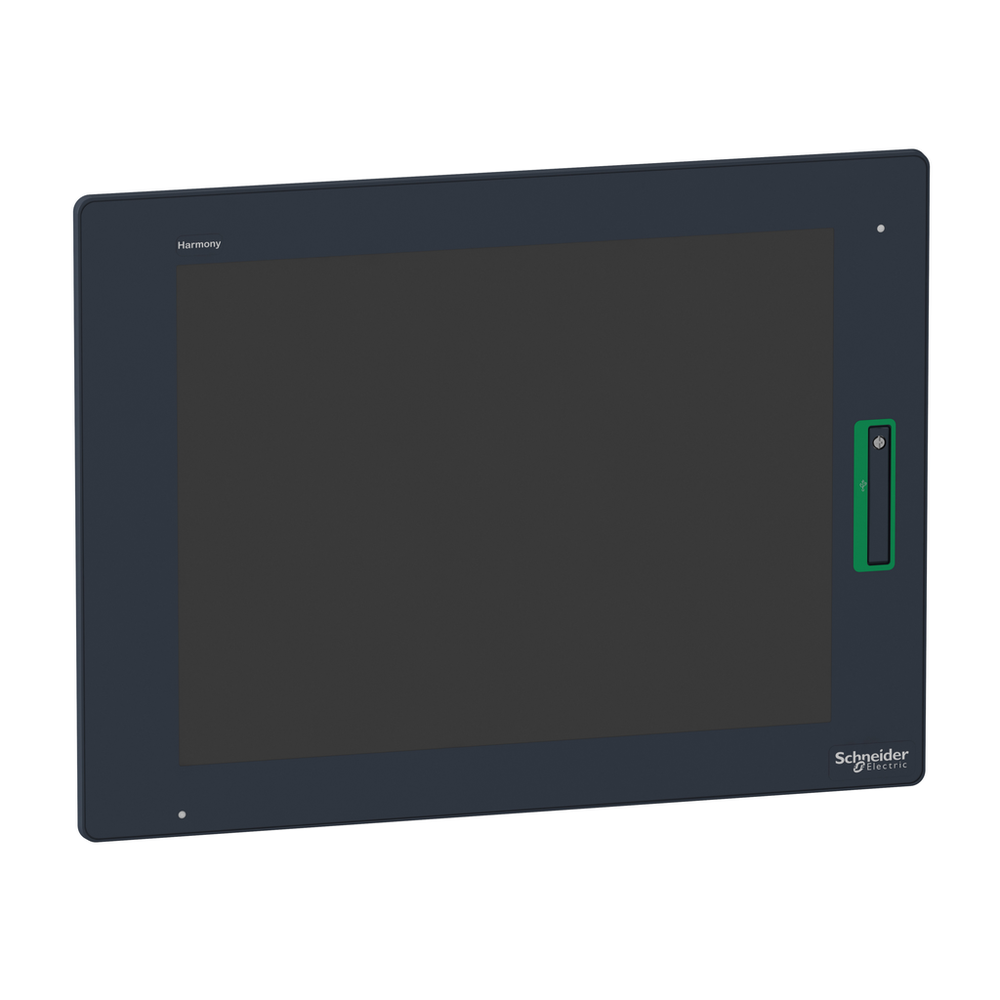

Schneider Electric HMIDT732
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Magelis GTU universal touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 15" color TFT LCD display with 1024 x 768 pixels and 16M colors. It can handle multi-touch gestures. It is ideal for high-performance monitoring and communication thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipments, hazardous locations, and marine applications. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers removable storage, dual LAN and dual communication interfaces. It resists permanent 60°C temperature, this makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky.flat screen, Harmony GTU, 15inch wide display, 1024 x 768pixels XGA
Schneider Electric HMIDT732 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Aspect Ratio
- 4:3
- Backlight Lifespan
- 50000 hours
- Cut-Out Dimensions
- 383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm
- Depth
- 67 mm
- Display Colour
- 16 million colours
- Display Resolution
- 1024 x 768 pixels XGA
- Display Size
- 15 inch
- Display Type
- colour TFT LCD
- Function Available
- brightness sensor
- Height
- 296 mm
- Integrated Connection Type
- USB 2.0 type A || USB 2.0 type mini B
- Net Weight
- 4.5 kg
- Pixel Resolution
- 1024 x 768
- Touch Panel
- multi touch analogue resistive
- Touchscreen Resolution
- 1024 x 1024
- Type Of Cooling
- natural convection
- Type Of Installation
- indoor installation
- Width
- 397 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C EN 61131-2
- Ambient Air Temperature For Storage
- -20-60 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2
- Ip Degree Of Protection
- front panel IP66 || front panel IP67
- Nema Degree Of Protection
- NEMA 4X front panel
- Operating Altitude
- 6561.68 ft (2000 m)
- Product Certifications
- cULus || RCM || KC || CE || UKCA || UKEX
- Relative Humidity
- 10-90 % non-condensing
- Shock Resistance
- 147 m/s²EN/IEC 61131-2
- Standards
- UL 508 || ANSI/ISA 12-12-01 || class I division 2 CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61132-2
- Vibration Resistance
- 3.5 mm constant amplitude 5-9 Hz) EN/IEC 61131-2 || 9.8 m/s² 9-150 Hz) EN/IEC 61131-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1402016EN
- Environmental Disclosure
- ENVPEP1402016EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Inrush Current
- 30 A
- Power Consumption In W
- 22 W
- Product Or Component Type
- flat screen
- Range Of Product
- Harmony GTU
- Supply Voltage Limits
- 10.8-28.8 V
- Terminal Type
- touchscreen display
- [Us] Rated Supply Voltage
- 12...24 V DC power supply
