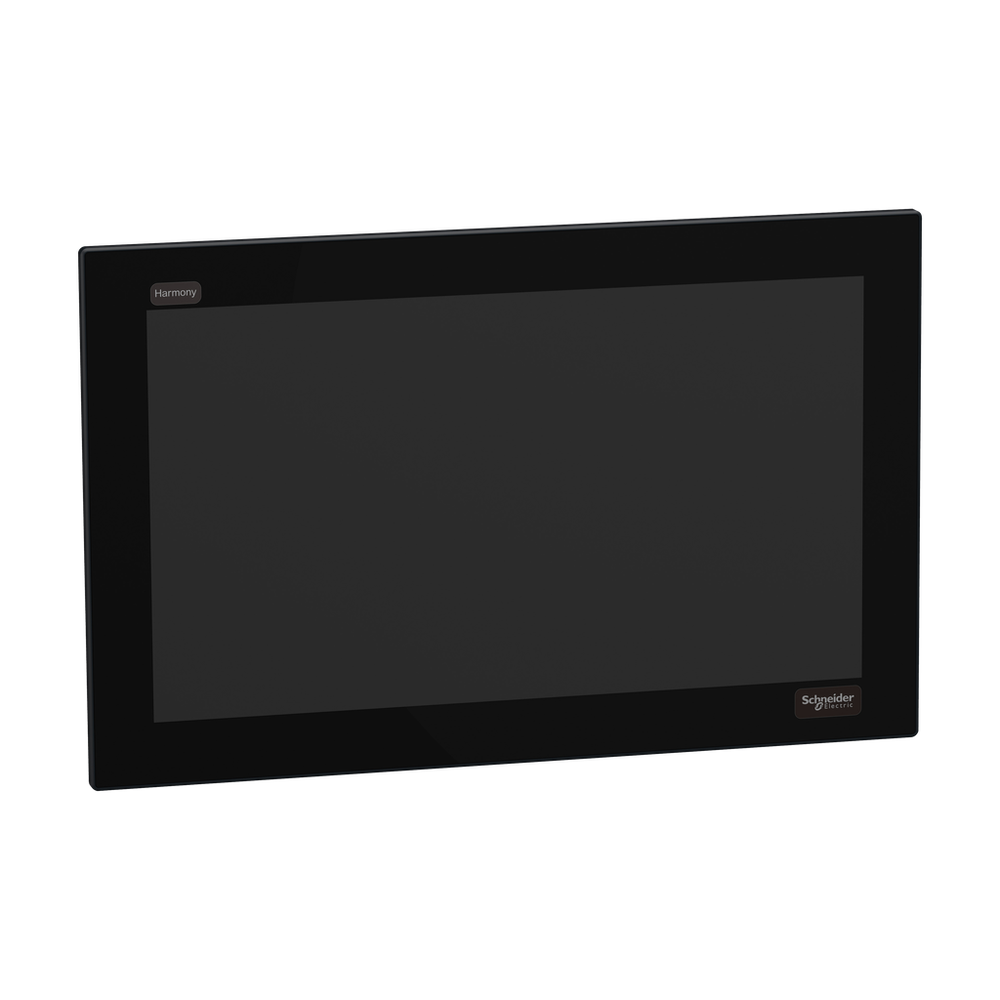

Schneider Electric HMIDM6800WC
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This industrial display belongs to the Schneider Electric's Harmony HMI P6 range. This 2 point multi-touch projected capacitive HMIDM6 display has a glass-top surface design with backlight service life of 50,000 hours. This is a 18.5 inch wide screen of 16 million colors and 1920 × 1080 pixel resolution (FHD). Three touch mode configurations are available namely Standard mode, Glove mode, and Water detection mode. The modularity of the iPC display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), and Type 13 degree of protection. The power consumption when this DM6 display is paired with P6 Advanced Modular Box is 170VAMax. (AC model) and 150WMax. (DC model), with P6 Standard Modular Box is 92VAMax. (AC model) and 82WMax. (DC model). Its dimensions are 463.6mm (width) x 293.6mm (height) x 32mm (depth) and weighs 4.90Kg. Harmony P6 industiral PCs caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure. It complies with CE, RCM, UL 61010-2-201 and CSA C22.2 No. 61010-2-201 for both AC and DC models. They are configurable noise-resistive touch drivers. This display when combined with any of the Harmony P6 Boxes makes a Panel PC. It can be mounted on front enclosure or VESA 100 × 100 mount on the rear of Box PC. The stylish wide Harmony P6 displays provide high visibility during operation featuring glass-top capacitive multi-touch panel with narrow frame and thin design. The Harmony P6 online Configurator with enlarged line-up offers many possibilities and when linked with EcoStruxure Plant Builder eases the design of complete automation architectures and solutions.19w Display module, Harmony P6, Full HD, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter
Schneider Electric HMIDM6800WC is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Aspect Ratio
- 16:9
- Backlight Lifespan
- 50000 hours 25 °C
- Cut-Out Dimensions
- 449.5 (+1/-0) x 279.5 (+1/-0) mm
- Depth
- enclosure 32 mm
- Device Mounting
- panel mounting || direct mounting VESA
- Display Colour
- 16 million colours
- Display Resolution
- 1920 x 1080 pixels full HD
- Display Size
- 18.5 inch
- Display Type
- LED not replaceable || colour TFT LCD
- Function Available
- standard mode || glove mode || water detection mode
- Height
- 293.6 mm
- Inrush Current
- 30 A
- Net Weight
- 4.9 kg
- Pixel Resolution
- 1920 x 1080
- Power Consumption In W
- 85 W typical)advanced box || 150 W maximum)advanced box || 64 W typical)standard box || 82 W maximum)standard box
- Touch Panel
- multi-touch projected capactive technology (PCT) with optimized noise filter
- Type Of Installation
- indoor installation
- Width
- 463.6 mm
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -20-60 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3 || electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 level 3 || electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 || electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4
- Environmental Characteristic
- dust resistant 0.1 mg/m3 non-conductive) || corrosive gas free
- Ip Degree Of Protection
- IP66f || IP67f || Type 1 || Type 4X indoor use || Type 12 || Type 13
- Operating Altitude
- 6561.68 ft (2000 m)
- Pollution Degree
- 2
- Product Certifications
- RCM || KC || UKCA || DNV (DC model without HDD/fan/ EtherCAT card/22" wide display with expansion slot) || ATEX zone 22 dust (DC model, front USB cover must be locked with screw) || ATEX zone 2 (DC model, front USB cover must be locked with screw) || cULus Class 1 Division 2 (without DIO option) || IECEx zone 2 (DC model, front USB cover must be locked with screw) || IECEx zone 22 (DC model, front USB cover must be locked with screw)
- Relative Humidity
- 10-90 % without condensation
- Shock Resistance
- 147 m/s² IEC 61131-2 || 147 m/s² 3 shocks in each direction X, Y and Z
- Standards
- CE || FCC part 15 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
- Storage Relative Humidity
- 10-90 % without condensation
- Type Of Cooling
- natural
- Vibration Resistance
- 1 gn 5-9 Hz) single amplitude IEC 61131-2 || 1 gn 9-150 Hz) fixed amplitude IEC 61131-2 || 1 gn X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
Specifications
- Product Or Component Type
- touch panel screen
- Range Of Product
- Harmony P6
- Terminal Type
- touchscreen display
