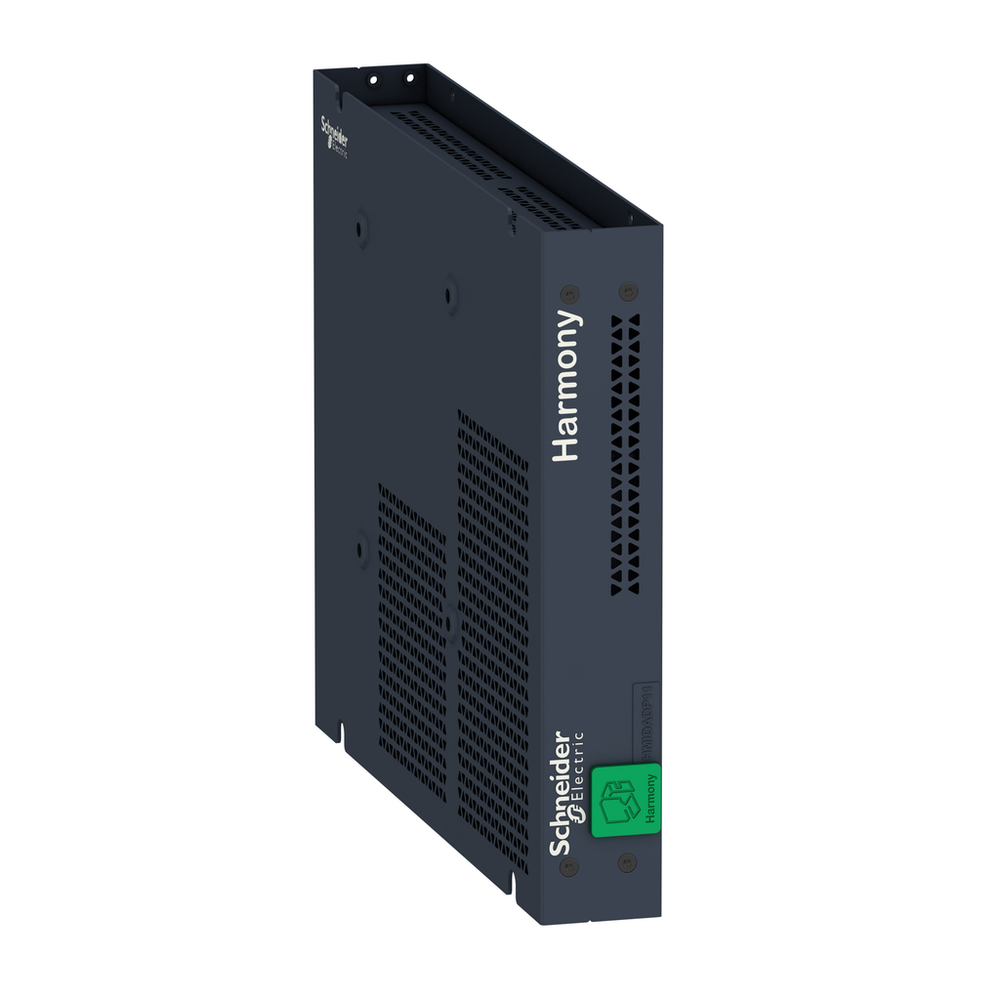

Schneider Electric HMIDADP11

Complementary

• Accessory / Separate Part Destination
  • Harmony modular display HMIDM
• Input Voltage
  • 24 V DC || 100...240 V AC external adaptor
• Inrush Current
  • 5.3 A
• Integrated Connection Type
  • display port input video signal || 1 USB (V2.0) port B output touch screen signal
• Net Weight
  • 0 kg || 1.8 kg || 2.4 kg
• Power Consumption In W
  • 15.77 W HMIDM6422) || 13.97 W HMIDM6522) || 12.42 W HMIDM7421) || 14.68 W HMIDM7521) || 17.57 W HMIDM9521) || 23.33 W HMIDMA521) || 22.05 W HMIDM6422 receiver module) || 20.02 W HMIDM6522 receiver module) || 19.05 W HMIDM7421 receiver module) || 21.29 W HMIDM7521 receiver module) || 24 W HMIDM9521 receiver module) || 29.12 W HMIDMA521 receiver module) || 24.51 W HMIDM6422 transmitter and receiver module) || 22.53 W HMIDM6522 transmitter and receiver module) || 21.25 W HMIDM7421 transmitter and receiver module) || 23.76 W HMIDM7521 transmitter and receiver module) || 26.53 W HMIDM9521 transmitter and receiver module) || 31.48 W HMIDMA521 transmitter and receiver module)
• [Us] Rated Supply Voltage
  • 24 V DC || 100...240 V AC external adaptor

Environment

• Ambient Air Temperature For Operation
  • 0-55 °C
• Ambient Air Temperature For Storage
  • -30-70 °C
• Operating Altitude
  • 6561.68 ft (2000 m)
• Pollution Degree
  • 2
• Product Certifications
  • IEC Ex hazardous locations 3GD zone 2/22 || RCM || cULus HazLoc Class I Division 2 ANSI/ISA 12-12-01 || CCC || cULus CSA 22-2 No 142 || EAC || ATEX || CE || cULus || cULus HazLoc Class I Division 2 CSA 22-2 No 213
• Relative Humidity
  • 10-95 % non-condensing

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Free Of Svhc
  • Yes
• Reach Regulation
  • Free of Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Accessory / Separate Part Category
  • adaptation accessory
• Accessory / Separate Part Type
  • adaptor
• Product Compatibility
  • Harmony iPC industrial PCs
• Range Of Product
  • Harmony Modular iPC
