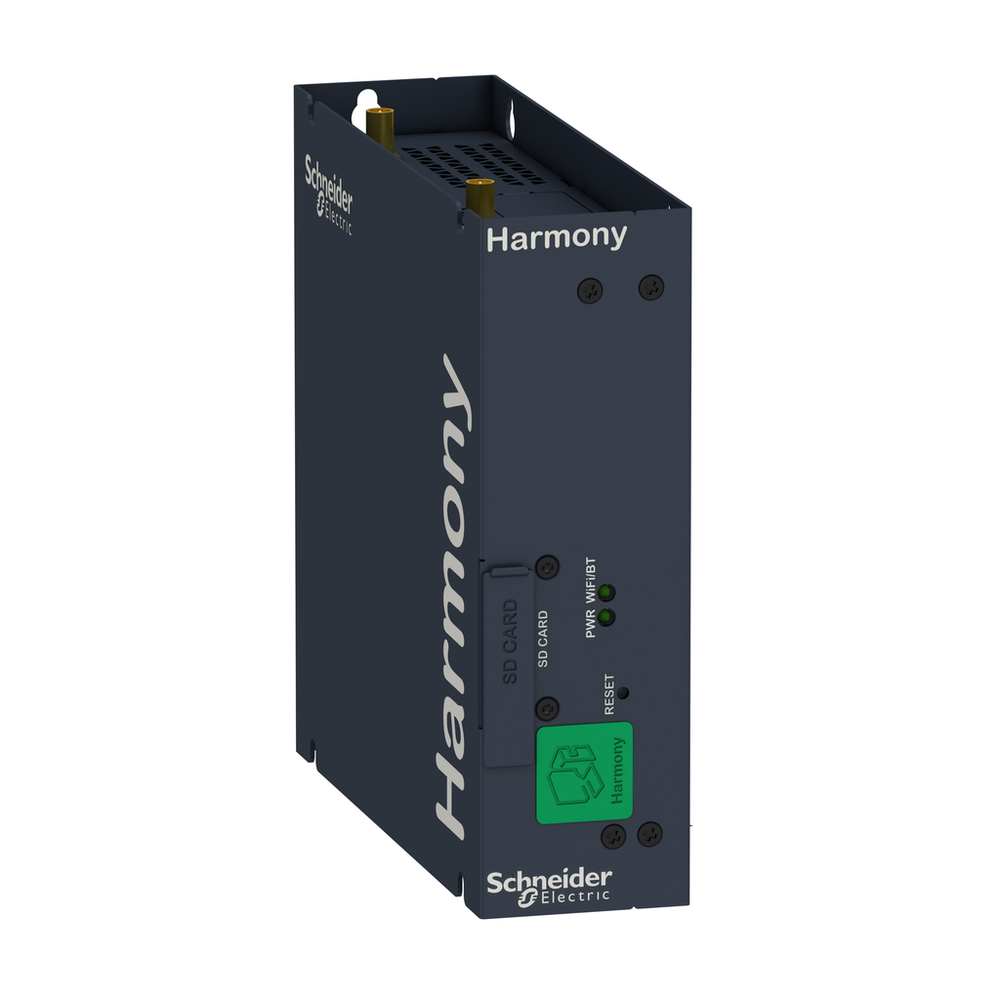

Schneider Electric HMIBSCEA53D1L0T

Complementary

• Communication Network Type
  • 1.0 WCN3620 Wi-Fi 2.4 GHz conforming to IEEE 802.11 b/g/n || 1.0 WCN3620 Bluetooth 4.1
• Connector Type
  • 1.0 GPIO Pin, 8 pins bottom(Software utility provided)
• Control Type
  • resettable
• Cyber Secured Boot
  • Secure password boot
• Data Storage Equipment
  • 8 GB eMMC (soldered)
• Depth
  • 46 mm
• Display Resolution
  • 1920 x 1080 pixels at 60 Hz
• Electrical Connection
  • screw connector pin, 1 way ground bottom || connector SMA top
• Free Slots
  • 1 SD card SD 3.0, max raw transfer rate 104 MBps Supports SD,SDHC,SDXC (Standard 32 mm x 24 mm)
• Height
  • 150 mm
• Inrush Current
  • 0.43 A
• Integrated Connection Type
  • HDMI For configuration only 1 bottom || Ethernet 2 RJ45 SMSC LAN7500 10/100/1000 Mbps bottom IEEE 1588 not supported || COM1 serial link battery backup 1 male SUB-D 9 RS232/422/485 non-isolated || USB 2.0 port 2.0 USB type A 480 Mbit/s bottom || TPM connector Ver 2.0 cyber security - hardware encryption TPM module by default motherboard
• Main Type
  • IIoT Edge Box Core
• Memory Description
  • 1 GB RAM LPDDR3 internal not expandable)
• Mounting Location
  • book mounting || flat mounting || wall mounting
• Net Weight
  • 1 kg
• Number Of Slots
  • 1 slot(s) for mini PCI Express full-size with optional interface plate, || 1 slot(s) for M.2 not for storage,
• Number Of Slots Available For Expansion
  • 1.0 mini PCIe || 1.0 M.2 (not for storage)
• Power Consumption In W
  • 16 W
• Supply Voltage Limits
  • 12-24 V
• Type Of Cooling
  • fanless
• [Us] Rated Supply Voltage
  • 24 V DC power supply || 100...240 V AC power supply
• Watchdog Timer
  • 1-255 ms
• Width
  • 157 mm

Environment

• Ambient Air Temperature For Operation
  • 0-50 °C by default) EN/IEC 60068-2-2 || 0-50 °C flat mounting || 0-45 °Cmini PCIe || 0-45 °C flat mountingmini PCIe
• Ambient Air Temperature For Storage
  • -20-60 °C IEC 60068-2-2 || -20-60 °C IEC 60068-2-14
• Directives
  • 2004/108/EC - electromagnetic compatibility || 2006/95/EC - low voltage directive
• Electromagnetic Compatibility
  • immunity to high frequency interference conforming to IEC 61000-4 || disturbing field emission class A conforming to EN 55011 || conducted and radiated emissions class A conforming to EN 55022
• Ip Degree Of Protection
  • IP40 IEC 60529
• Operating Altitude
  • 6561.68 ft (2000 m) EN/IEC 60664-1
• Product Certifications
  • CE || cULus || UL 60950 for IT equipments || CCC || RCM || EAC || RED || FCC RF || IC || SRRC || TELEC || FAC || ANATEL
• Quality Labels
  • CE
• Relative Humidity
  • 10-95 % non-condensing EN/IEC 60068-2-30
• Standards
  • class A group 1 EN 55011 || EN 61000-6-4 || EN 61131-2 || FCC part 15 || UL 60950
• Vibration Resistance
  • 2 gn 5-500 Hz) eMMC

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI2003021
• Environmental Disclosure
  • ENVPEP2003021
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Accessory / Separate Part Destination
  • Celullar 4G and analog Inputs
• Device Short Name
  • IIoT Edge Box Core
• Operating System
  • Linux Yocto Linux Yocto project Krogoth 2.1) || Linux Yocto BitBake branch 1.30.0) || Linux Yocto Linux Kernel 4.4.38)
• Processor Name
  • ARM Cortex-A53 quad core 1.2 GHz Qualcomm Snapdragon 410
• Product Or Component Type
  • IIoT Edge Box Core
• Range Compatibility
  • HMIYMIN4GUS1 Interface Mini PCIe 4G US for iPC || HMIYMIN4GEU1 Interface Mini PCIe 4G EU for iPC || HMIYMIN8AI1 Interface Mini PCIe 8x Analog Input 0-10V || HMIYBIN2AIM21 Interface M.2 2x Analog Input 0-10V/4-20mA
• Range Of Product
  • Harmony iPC
• Software Package
  • Node-RED and system nodes default IIoT Wiring
