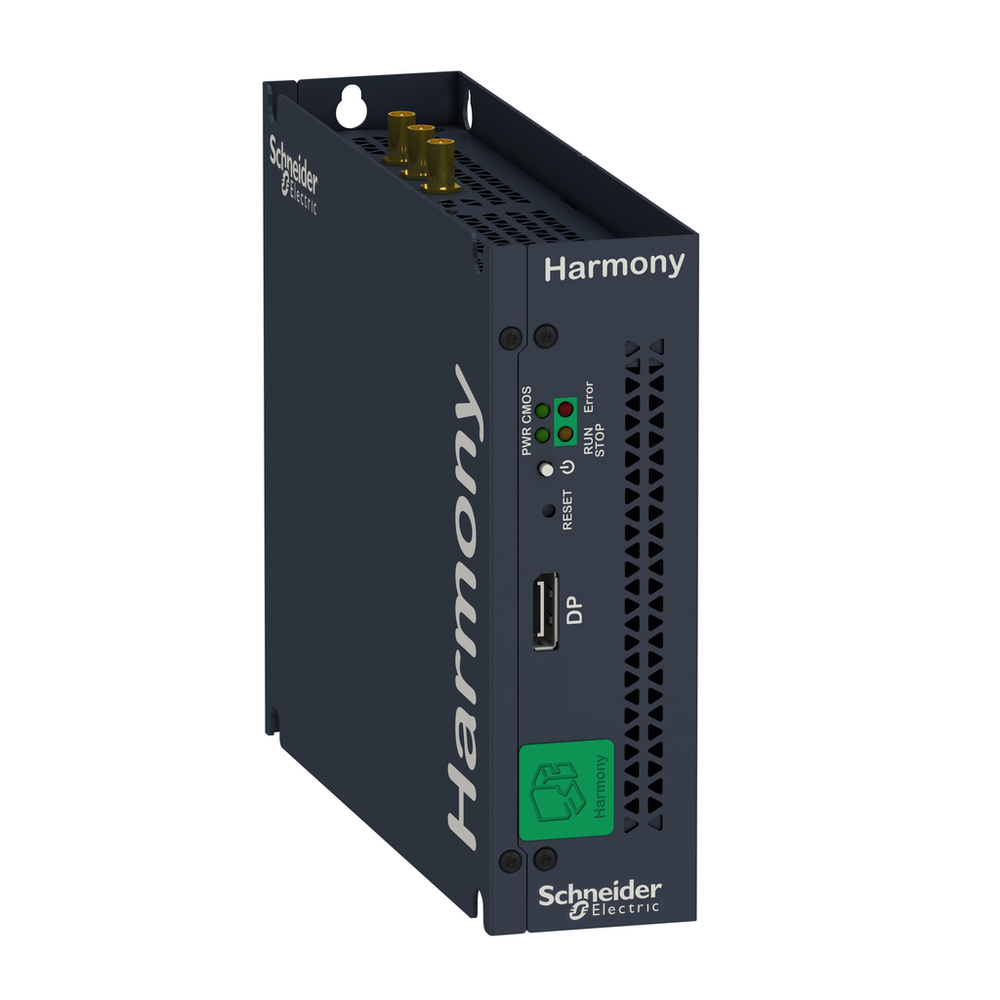

Schneider Electric HMIBMIEA5DD100A

Complementary

• Control Type
  • ON/OFF button
• Cyber Secured Boot
  • Secure password boot UEFI
• Data Storage Equipment
  • 128 GB eMMC (soldered)
• Depth
  • 46 mm
• Display Resolution
  • 3200 x 2000 pixels at 60 Hz
• Electrical Connection
  • screw connector pin, 1 way ground bottom || connector SMA, 3 ways top
• Height
  • 150 mm
• Impregnation Material
  • conformal coated
• Inrush Current
  • 2.03 A
• Integrated Connection Type
  • display port 1 front || Ethernet 2 RJ45 Realtek 8111G 10/100/1000 Mbps bottom IEEE 1588 not supported || COM1 serial link battery backup 1 male SUB-D 9 RS232/422/485 bottom non-isolated || USB 2.0 port 1.0 USB type A 480 Mbit/s bottom || USB 3.0 port 1.0 USB type A 5 Gbit/s bottom || TPM connector Ver 2.0 cyber security - hardware encryption TPM module HMIYMINATPM201 to be installed/default installed motherboard
• Main Type
  • Basic Optimised
• Memory Description
  • 4 GB RAM DDR3 internal not expandable)
• Mounting Location
  • book mounting || flat mounting || wall mounting
• Net Weight
  • 1.2 kg
• Number Of Slots
  • 1 slot(s) for mini PCI Express full-size with optional interface plate,
• Number Of Slots Available For Expansion
  • 1.0 mini PCIe
• Power Consumption In W
  • 20.0 W box) || 15.0 W with 4:3 12" display HMIDM6421) || 16.0 W with Wide 12" display HMIDM6521) || 17.0 W with 4:3 15" display HMIDM7421) || 19.0 W with Wide 15" display HMIDM7521) || 20.0 W with Wide 19" display HMIDM9521) || 21.0 W with Wide 22" display HMIDMA521)
• Supply Voltage Limits
  • 9.6-28.8 V
• Type Of Cooling
  • fanless
• [Us] Rated Supply Voltage
  • 24 V DC power supply || 100...240 V AC power supply
• Watchdog Timer
  • 1-255 ms
• Width
  • 187 mm

Environment

• Ambient Air Temperature For Operation
  • 0-50 °C by default) EN/IEC 60068-2-2 || 0-50 °C flat mounting || 0-45 °Cmini PCIe || 0-45 °C flat mountingmini PCIe
• Ambient Air Temperature For Storage
  • -20-60 °C IEC 60068-2-2 || -20-60 °C IEC 60068-2-14
• Directives
  • 2004/108/EC - electromagnetic compatibility || 2006/95/EC - low voltage directive
• Electromagnetic Compatibility
  • immunity to high frequency interference conforming to IEC 61000-4 || disturbing field emission class A conforming to EN 55011 || conducted and radiated emissions class A conforming to EN 55022
• Ip Degree Of Protection
  • IP40 IEC 60529
• Operating Altitude
  • 6561.68 ft (2000 m) EN/IEC 60664-1
• Product Certifications
  • CE || cULus || UL 60950 for IT equipments || EAC || CCC || RCM
• Quality Labels
  • CE
• Relative Humidity
  • 10-95 % non-condensing EN/IEC 60068-2-30
• Standards
  • class A group 1 EN 55011 || EN 61000-6-4 || EN 61131-2 || FCC part 15 || UL 60950
• Vibration Resistance
  • 2 gn 5-500 Hz) eMMC

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Free Of Svhc
  • Yes
• Reach Regulation
  • Free of Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Accessory / Separate Part Destination
  • PC panel HMIDM modular display
• Device Short Name
  • Modular BOX PC basic Optimized
• Processor Name
  • Intel Atom E3930 upto 1.8 GHz
• Product Or Component Type
  • modular box PC
• Range Compatibility
  • iDisplay || Modular Display HMIDM
• Range Of Product
  • Harmony iPC
• Software Package
  • Node-RED and system nodes restore IIoT Wiring Operating System Restore || McAfee white listing installer cyber security license not included || EcoStruxture secure connect advisor annual subscription cyber security license not included || EcoStruxure Operator Terminal Expert run time HMI license not included || EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only || EcoStruxure augmented operator advisor server augmented operator license not included
