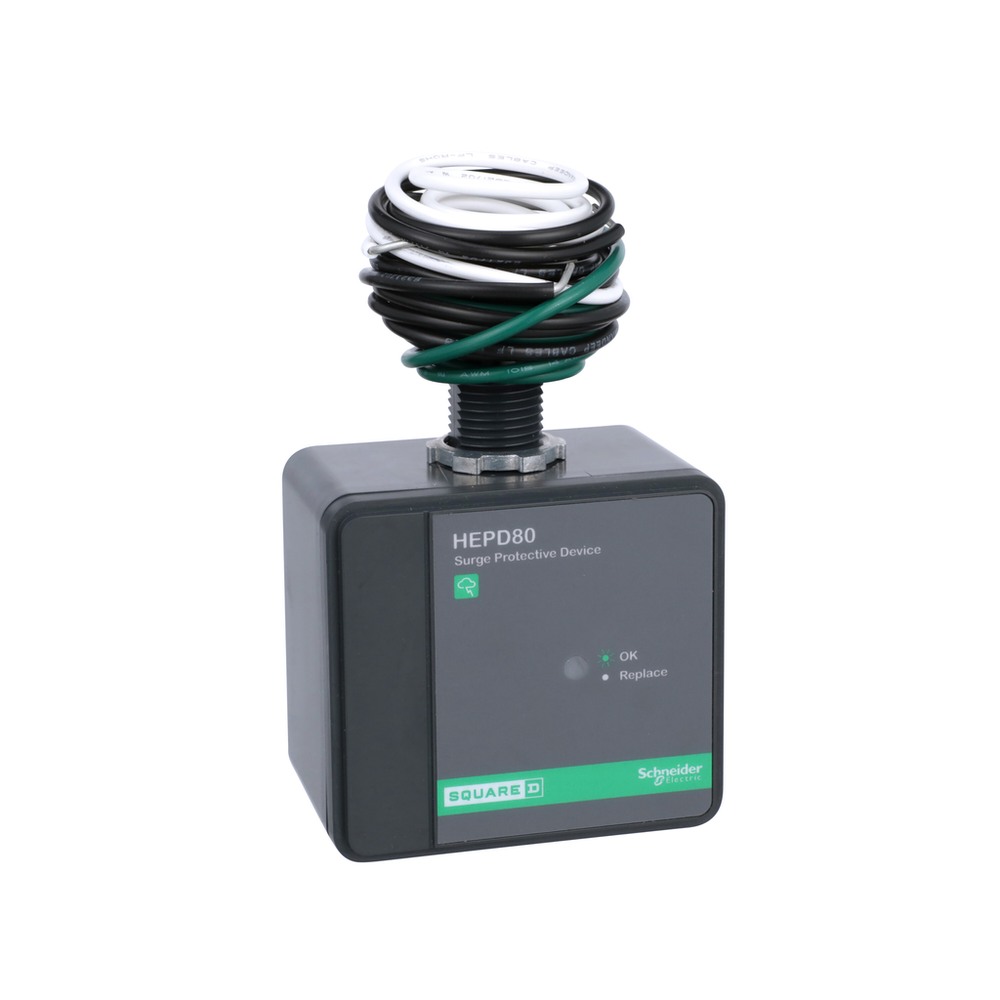

Schneider Electric HEPD80
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HEPD whole house devices are designed to deliver AC surge protection for the entire AC power system in a home. HEPDs are compact in size and are designed to protect AC wires in the home from surges that could affect home electronics and appliances not connected to surge strips. For use on 120/240 VAC single phase, 3 wire systems with an isolated ground. This device provides 25 kA of short circuit protection and 80 kA of surge protection per phase and comes in consumer package. The surge protection device is in a NEMA 4X housing. The surge protection device is 3.23 inches tall, 3.72 inches wide and 2.10 inches deep. The surge protection device is UL listed.Surge protection device, HEPD, 80kA, 120/240V, 1 phase, 3 wire, SPD type 1
Schneider Electric HEPD80 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cable Length
- 34 in
- Connections - Terminals
- wire AWG 14
- Depth
- 2.10 in
- Height
- 3.23 in
- Input Voltage
- 600 V L-N || 600 V L - G || 1000 V L - L || 900 V N - G
- Local Signalling
- 1 LED green normal operation || 1 LED green off
- Nominal Discharge Current
- 10 kA
- Phase
- 1 phase
- Product Destination
- load center
- Short-Circuit Protection
- 25 kA
- Surge Current
- 80 kA per phase
- [Uc] Maximum Continuous Operating Voltage
- 150 V
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Width
- 3.72 in
- Wiring Configuration
- 3-wire (isolated ground)
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-65 °C
- Enclosure Material
- non-metallic
- Nema Degree Of Protection
- NEMA 4X
- Standards
- UL 1449 || cUL || UL 1449:ed. 4: type I
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
Specifications
- Device Short Name
- HEPD
- Product Or Component Type
- surge protection device
- Range Of Product
- Square D
- Surge Arrester Type
- electrical distribution network
