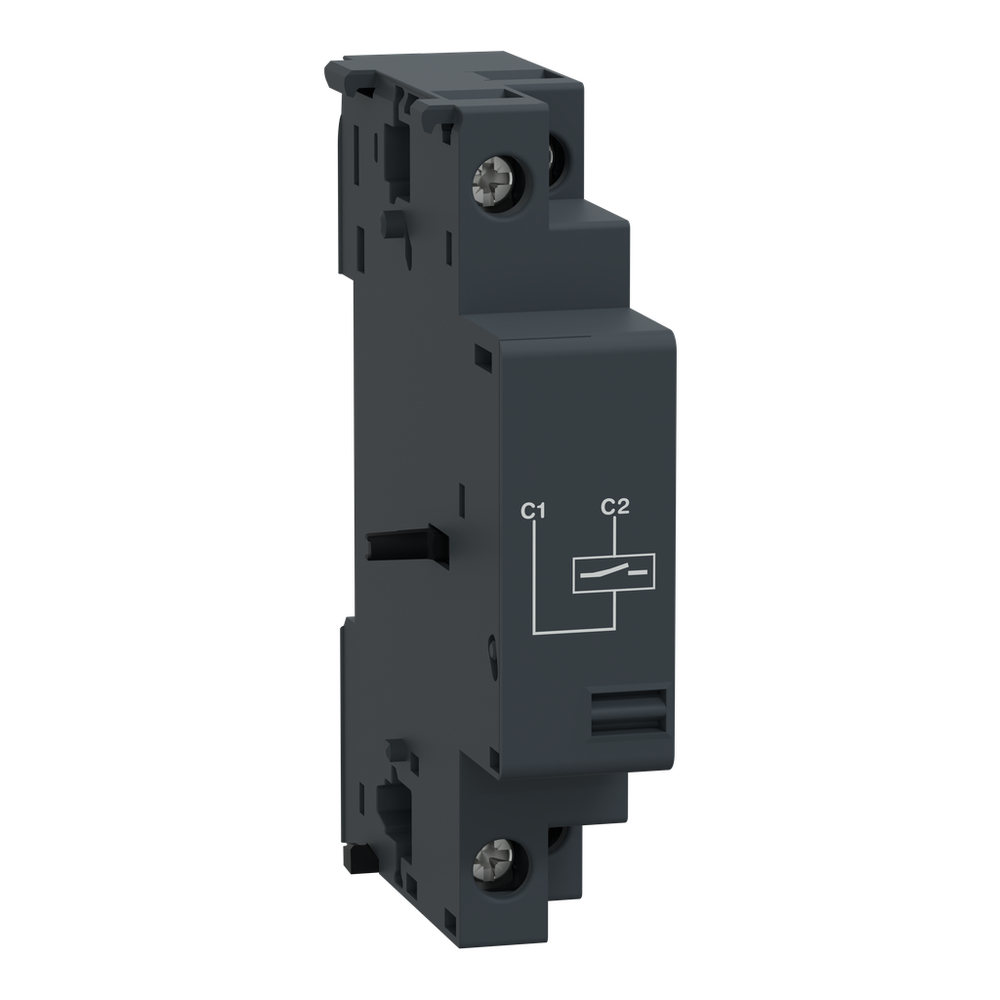

Schneider Electric GVAS025
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys GV electrical trip, MX shunt release, 24V AC 50Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage is applied in limits 0.7-1.1 Uc with an impulse duration greater than 20ms or a maintained signal. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).Shunt release (MX), TeSys Deca, 24V AC 50Hz
Schneider Electric GVAS025 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Color
- dark grey
- Connections - Terminals
- screw clamp terminals 1 1-2.5 mm²solid || screw clamp terminals 2 1-2.5 mm²solid || screw clamp terminals 1 0.75-2.5 mm²flexible without cable end || screw clamp terminals 2 0.75-2.5 mm²flexible without cable end || screw clamp terminals 1 0.75-1.5 mm²flexible with cable end || screw clamp terminals 2 0.75-1.5 mm²flexible with cable end
- Control Circuit Voltage Limits
- 0.7...1.1 Un
- Depth
- 66 mm
- Height
- 89 mm
- Hold-In Power Consumption In Va
- 5-5 VA AC
- Hold-In Power Consumption In W
- 1.6-1.6 W
- Inrush Power In Va
- 14-14 VA AC
- Inrush Power In W
- 10.5 W
- Mechanical Durability
- 10000 cycles with GV3P and GV3L || 30000 cycles with GV2ME and GV2P
- Net Weight
- 0.105 kg
- On-Load Factor
- 100 %
- Operating Time
- 10...15 ms IEC 60947-1
- Quantity Per Set
- set of 10
- Range Compatibility
- TeSys GV2ME || TeSys GV2LE || TeSys GV2L || TeSys GV2P || TeSys GV3L || TeSys GV3P || TeSys Deca
- Threshold Tripping Voltage
- 0.75...0.2 Un
- Tightening Torque
- < 1.4 N.m screw clamp terminals
- [Uc] Control Circuit Voltage
- 24 V AC 50 Hz
- [Ui] Rated Insulation Voltage
- 690 V AC IEC 60947-1 || 600 V AC UL 60947-4-1 || 600 V AC CSA C22.2 No 60947-4-1
- Width
- 18 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- ENVEOLI2207006
- Environmental Disclosure
- ENVPEP2207006
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- GVAS
- Product Or Component Type
- shunt trip release
- Range
- TeSys || TeSys Deca
