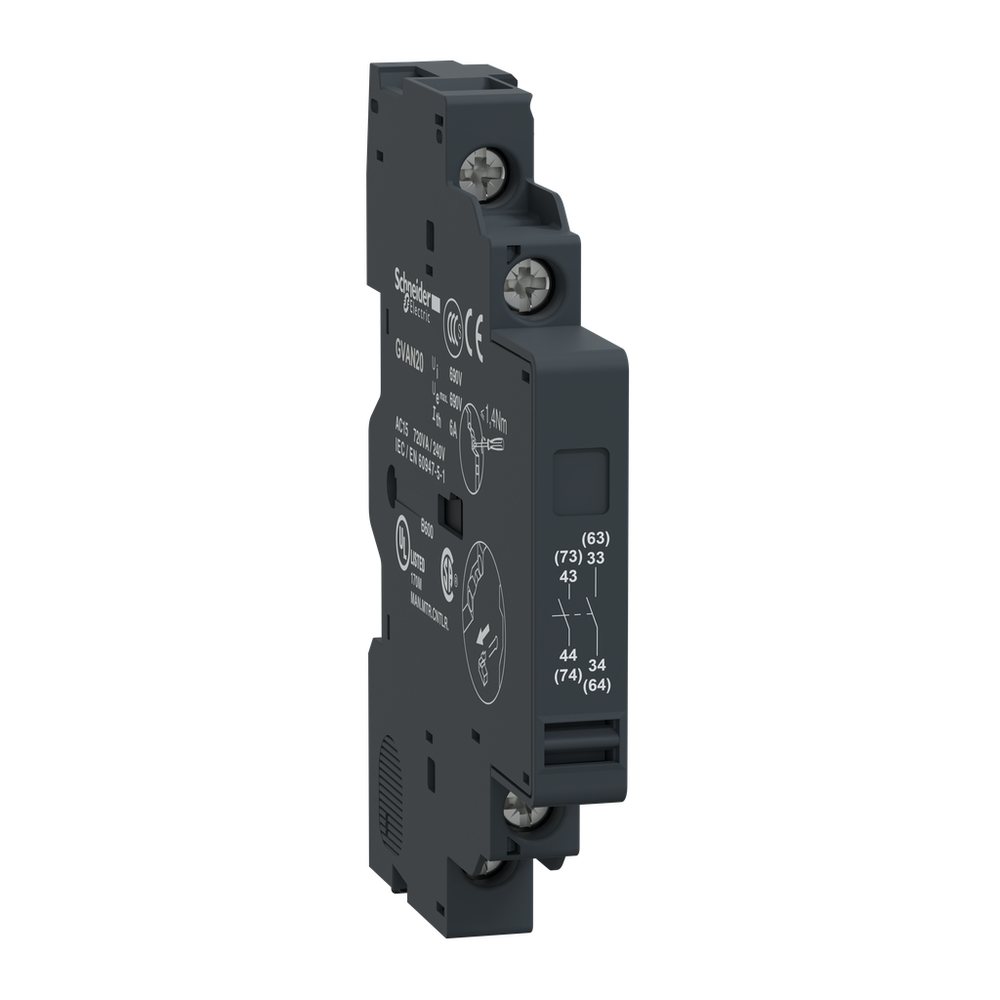

Schneider Electric GVAN20
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 2NO instantaneous auxiliary contacts. Rated for operation up to 6A/690V AC and 6A/240V DC. To be installed on left-hand side of the circuit breaker (2 blocks mounting possible), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).TeSys Deca - auxiliary contact block - 2 NO
Schneider Electric GVAN20 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Color
- dark grey
- Depth
- 66 mm
- Height
- 89 mm
- [Ith] Conventional Free Air Thermal Current
- 6 A
- Mechanical Durability
- 100000 cycles
- Minimum Switching Current
- 5 mA
- Minimum Switching Voltage
- 17 V
- Net Weight
- 0.05 kg
- Protection Type
- GB2CB... circuit breaker || gG fuse 10 A
- Rated Operational Power In Va
- 300 VA 48-48 V AC-15 100000 cycles || 414 VA 690-690 V AC-15 100000 cycles || 500 VA 110-127 V AC-15 100000 cycles || 500 VA 500-500 V AC-15 100000 cycles || 650 VA 440-440 V AC-15 100000 cycles || 720 VA 230-240 V AC-15 100000 cycles || 850 VA 380-415 V AC-15 100000 cycles
- Rated Operational Power In W
- 120 W 240 V DC-13 100000 cycles || 140 W 110 V DC-13 100000 cycles || 140 W 24 V DC-13 100000 cycles || 180 W 60 V DC-13 100000 cycles || 240 W 48 V DC-13 100000 cycles
- Tightening Torque
- 1.4 N.m screw clamp terminals
- [Ue] Rated Operational Voltage
- 48...690 V AC || 24...240 V DC
- [Ui] Rated Insulation Voltage
- 600 V UL 508 || 690 V IEC 60947-1 || 600 V CSA C22.2 No 14
- Width
- 9.3 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Environmental Characteristic
- normal environment
- Product Certifications
- UKCA
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- ENVEOLI2207006
- Environmental Disclosure
- ENVPEP2207006
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- GVAN
- Mounting Location
- left side
- Pole Contact Composition
- 2 NO
- Product Compatibility
- GV2ME || GV3P || GV2RT || GV2LE || GV2L || GV3L || GV2P
- Product Or Component Type
- auxiliary contact block
- Range
- TeSys || TeSys Deca
