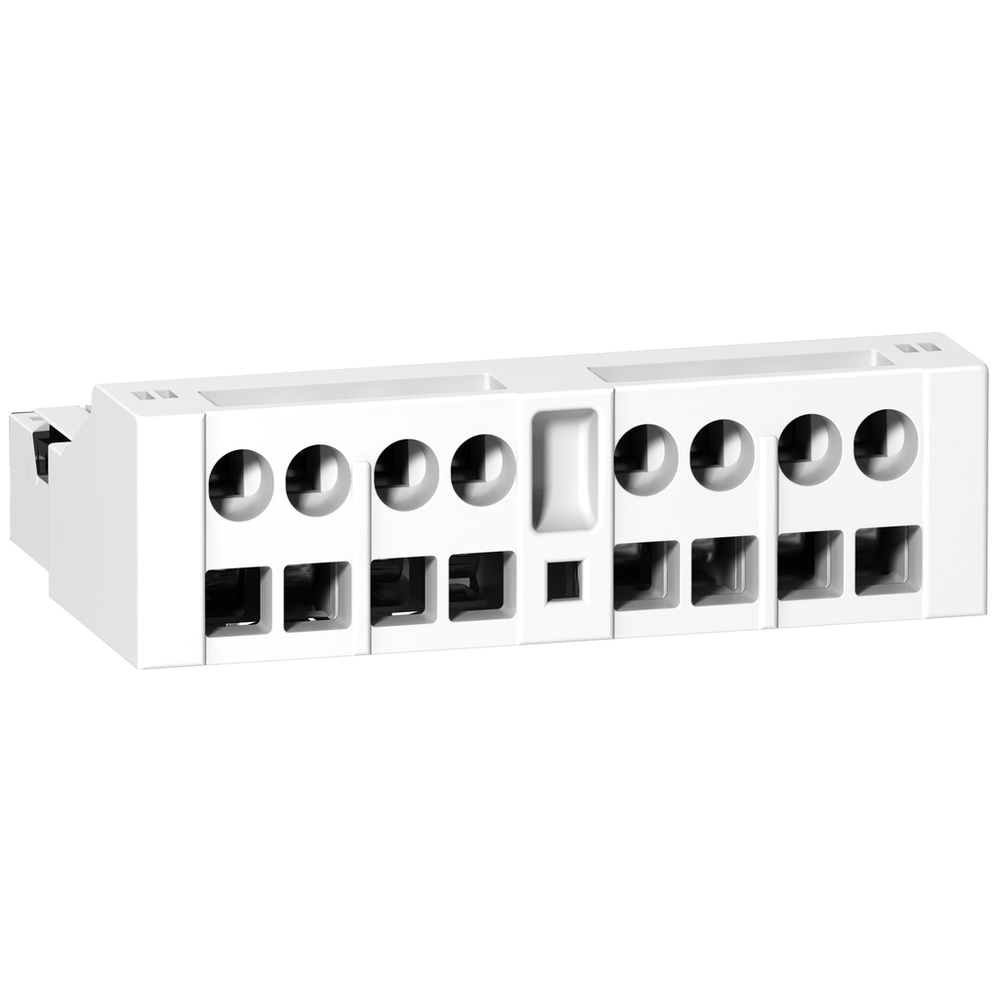

Schneider Electric GVAE113
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by spring terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).TeSys Deca - auxiliary contact - 1 NO + 1 NC
Schneider Electric GVAE113 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Color
- dark grey
- Depth
- 31.5 mm
- Height
- 13 mm
- [Ith] Conventional Free Air Thermal Current
- 2.5 A
- Mechanical Durability
- 100000 cycles
- Minimum Switching Current
- 5 mA
- Minimum Switching Voltage
- 17 V
- Net Weight
- 0.05 kg
- Protection Type
- gG fuse 10 A || GB2CB06 circuit breaker 10 A
- Rated Operational Power In Va
- 120 VA 110-120 V AC-15 100000 cycles || 120 VA 230-240 V AC-15 100000 cycles || 48 VA 24-24 V AC-15 100000 cycles || 60 VA 48-48 V AC-15 100000 cycles
- Rated Operational Power In W
- 15 W 48 V DC-13 100000 cycles || 24 W 24 V DC-13 100000 cycles || 9 W 60 V DC-13 100000 cycles
- [Ue] Rated Operational Voltage
- 24...240 V AC || 24...60 V DC
- [Ui] Rated Insulation Voltage
- 300 V UL 508 || 300 V CSA C22.2 No 14 || 250 V IEC 60947-1
- Width
- 44.5 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Environmental Characteristic
- normal environment
- Product Certifications
- UKCA
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Circularity Profile
- ENVEOLI2207006
- Environmental Disclosure
- ENVPEP2207006
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- GVAE
- Mounting Location
- front side
- Pole Contact Composition
- 1 NO + 1 NC
- Product Compatibility
- GV2L || GV2ME || GV3L || GV2RT || GV2P || GV3P || GV2LE || LS1D323
- Product Or Component Type
- auxiliary contact block
- Quantity Per Set
- set of 10
- Range
- TeSys || TeSys Deca
