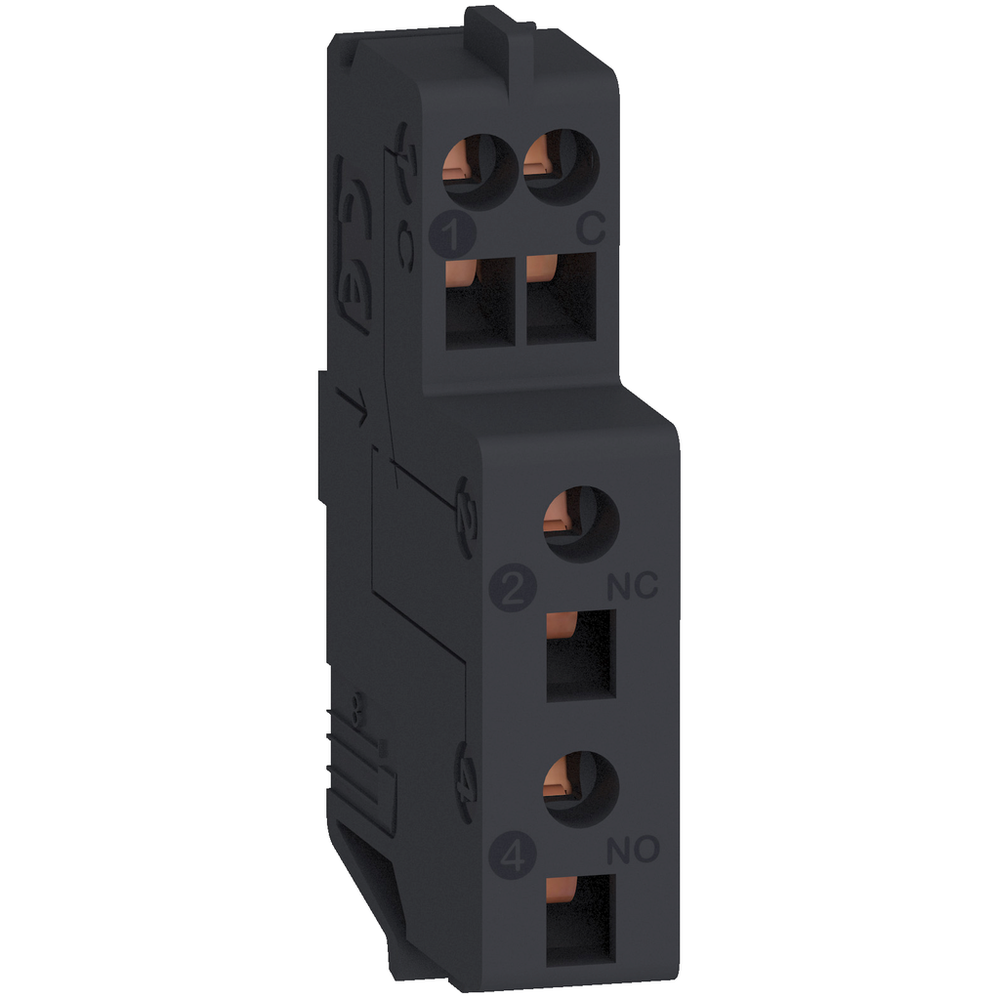

Schneider Electric GV4AE11
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TeSys GV4 auxiliary contact block, for motor circuit breakers GV4. 1C/O contact, it performs Open/Close OF function or Trip alarm SD function, depending of its location in the circuit breaker. Rated for operation up to 5A/690V AC and 5A/250V DC. To be plugged inside the circuit breaker, in the right-hand cavity for OF function, in the left-hand cavity for SD function, connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).Auxiliary contact, TeSys GV4, 690VAC, 1 NO/NC
Schneider Electric GV4AE11 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 5 A gG 690 V IEC 60947-5-1
- Connections - Terminals
- spring terminals 1 0.5-1.5 mm² flexible without cable end
- [Ie] Rated Operational Current
- 5 A <= 690 V AC-12 IEC 60947-5-1 || 0.3 A 250 V DC-12 IEC 60947-5-1 || 2.5 A <= 24 V DC-12 IEC 60947-5-1 || 1.2 A 48 V DC-12 IEC 60947-5-1 || 0.35 A 110/127 V DC-12 IEC 60947-5-1 || 0.05 A 250 V DC-12 IEC 60947-5-1 || 1 A <= 24 V DC-12 IEC 60947-5-1 || 0.2 A 48 V DC-12 IEC 60947-5-1 || 0.05 A 110/127 V DC-12 IEC 60947-5-1 || 0.03 A 250 V DC-12 IEC 60947-5-1 || 5 A <= 48 V AC-15 IEC 60947-5-1 || 4 A 110/127 V AC-15 IEC 60947-5-1 || 3 A 220/240 V AC-15 IEC 60947-5-1 || 2.5 A 380...440 V AC-15 IEC 60947-5-1 || 0.11 A 660/690 V AC-15 IEC 60947-5-1 || 5 A <= 24 V DC-12 IEC 60947-5-1 || 2.5 A 48 V DC-12 IEC 60947-5-1 || 0.6 A 110/127 V DC-12 IEC 60947-5-1
- Mechanical Durability
- 40000 cycles
- Minimum Switching Current
- 2 mA
- Minimum Switching Voltage
- 17 V
- Rated Power In Va
- 120 VA AC-12 24 V IEC 60947-5-1 || 240 VA AC-12 48 V IEC 60947-5-1 || 635 VA AC-12 110/127 V IEC 60947-5-1 || 1200 VA AC-12 230/240 V IEC 60947-5-1 || 2200 VA AC-12 380/440 V IEC 60947-5-1 || 3450 VA AC-12 660/690 V IEC 60947-5-1
- Rated Power In W
- DC-12 120 W 24 V IEC 60947-5-1 || DC-12 120 W 48 V IEC 60947-5-1 || DC-12 66 W 110 V IEC 60947-5-1 || DC-12 75 W 250 V IEC 60947-5-1
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-1
- Wire Stripping Length
- 8 mm
Environment
- Quantity Per Set
- set of 1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Auxiliary Contact Composition
- 1 NO/NC
- Device Application
- signalling
- Device Short Name
- GV4AE
- [Ith] Conventional Free Air Thermal Current
- 5 A IEC 60947-5-1 || 5 A CSA C22.2 No 14 || 5 A UL 508
- Mounting Mode
- internal mounting
- Product Or Component Type
- auxiliary contact
- Range
- TeSys
- Range Compatibility
- TeSys (TeSys GV4) || TeSys (TeSys BV4)
- [Ue] Rated Operational Voltage
- <= 690 V
