Description

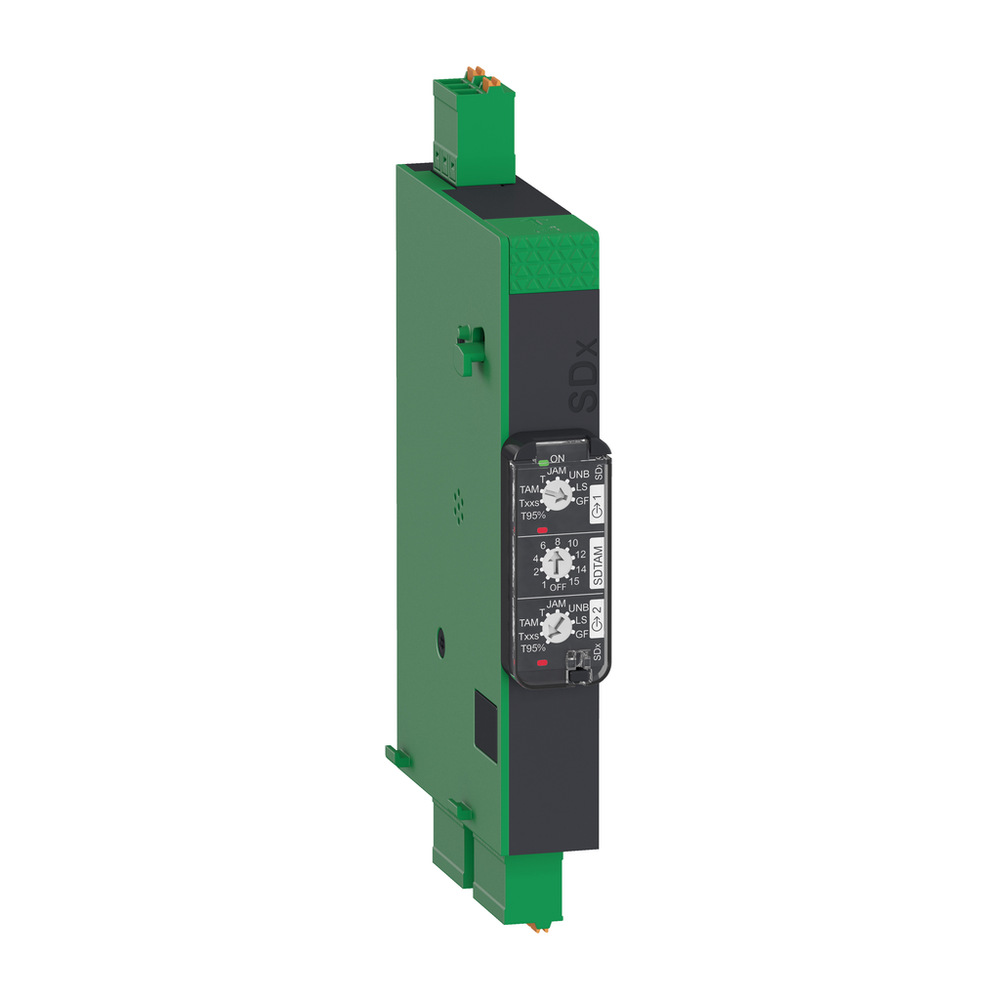

TeSys GV4 auxiliary contact block, for multifunction motor circuit breakers GV4PEM, GV4PB. 2NO/NC fault signalling contacts, each NO/NC can perform one of 8 SD alarm or fault status (overload alarms, overload trip, jam, phase unbalance, long start, ground fault). The function of each NO/NC is selectable by a dial, a third dial is available to select the cooling time before automatic restart. Rated for operation up to 5A/250V AC and DC. To be installed on right-hand side of the circuit breaker (2 blocks mounting possible), connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).Motor circuit breaker, TeSys Deca, 2 normally open and 2 normally closed contacts, SDx contact module, GV4PEM
Schneider Electric GV4ADM1111 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 5 A gG IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 5 A
- Mechanical Durability
- 100000 cycles
- Minimum Switching Current
- 2 mA
- Minimum Switching Voltage
- 17 V
- Rated Operational Power In Va
- 400 VA 230-240 V AC-12
- Rated Operational Power In W
- 50 W 24 V DC-12
- [Ue] Rated Operational Voltage
- 24...250 V AC || 24...250 V DC
- [Ui] Rated Insulation Voltage
- 250 V IEC 60947-1
Environment
- Environmental Characteristic
- normal environment
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- signalling
- Device Short Name
- GV4A
- Mounting Location
- right side
- Mounting Mode
- clipped
- Pole Contact Composition
- 2 NO + 2 NC
- Product Or Component Type
- auxiliary contact block
- Range
- TeSys
- Range Compatibility
- TeSys (TeSys GV4) multifunction circuit breaker
